Reinforced Steel Made Auto Downdraft Spray Booth Industrial Paint Booth
Yumyth Electronic Tech Co., Limited- Warranty：12months
- Type：Spray Booth
Base Info
- Model NO.：HY-CB40A
- Substrate：Steel
- Brand：Hongyuan
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas, LPG, LNG
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White, Grey
- Panel：50mm Thickness EPS Foam Panel
- Grates：Full Grates
- Intake Fan：2set
- Exhaust Fan：1set
- Filter System：4-Stage Filtration
- Heating System：Gas, LPG, LNG
- Upper Lights：Available
- Side Lights：for Option
- Control Box：English Panel
- Control：Automatic
- Drawing：Available
- User Manual：Available
- Installation Video：Available
- Related Product：Large Truck Paint Spray Booth
- Transport Package：Standard Package for Sea Shipment
- Specification：26CBM for FCL
- Trademark：N,A
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
- Package size per unit product：500.00cm * 200.00cm * 200.00cm
- Gross weight per unit product：1500.000kg
Description
Basic Info.
Model NO. HY-CB40A Substrate Steel Brand Hongyuan Coating Painting Airflow Direction Fully Undershot-type Heating Mode Gas, LPG, LNG Paint Mist Treatment Dry-type Condition New Color Red, Blue, White, Grey Panel 50mm Thickness EPS Foam Panel Grates Full Grates Intake Fan 2set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Gas, LPG, LNG Upper Lights Available Side Lights for Option Control Box English Panel Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Large Truck Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per MonthPackaging & Delivery
Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 1500.000kgProduct Description
Introduction of the paint booth for car and minivan with gas Burner and heat insulation panel1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the paint booth for car and minivan with gas Burner and heat insulation panel
| Model | HY-CB40A |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 700*2000(W*H) |
| Total power | <17kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with complete grating floor. |
| Intake | two set of fan, motor:4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(GAS) | Italy Riello gas burner, one-stage oil burner for option. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |

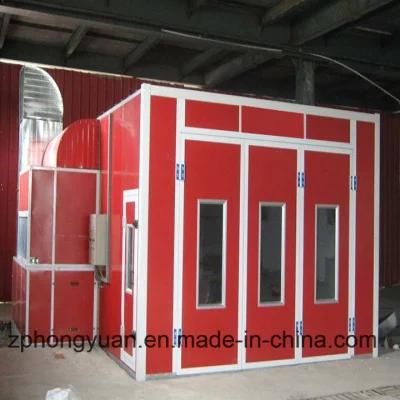

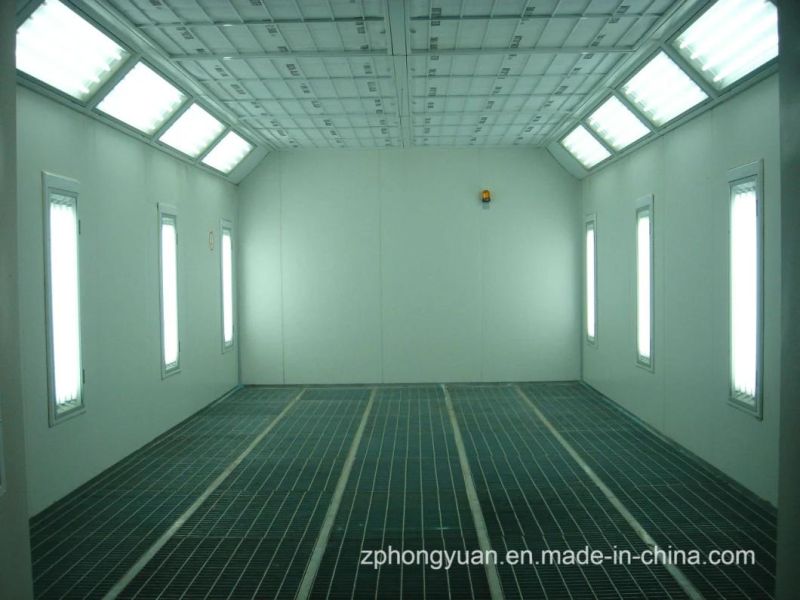

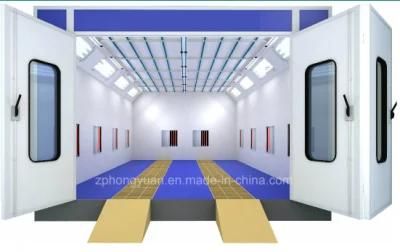

Picture of the Auto paint spray booth for car and minivan with gas Burner and heat insulation panel

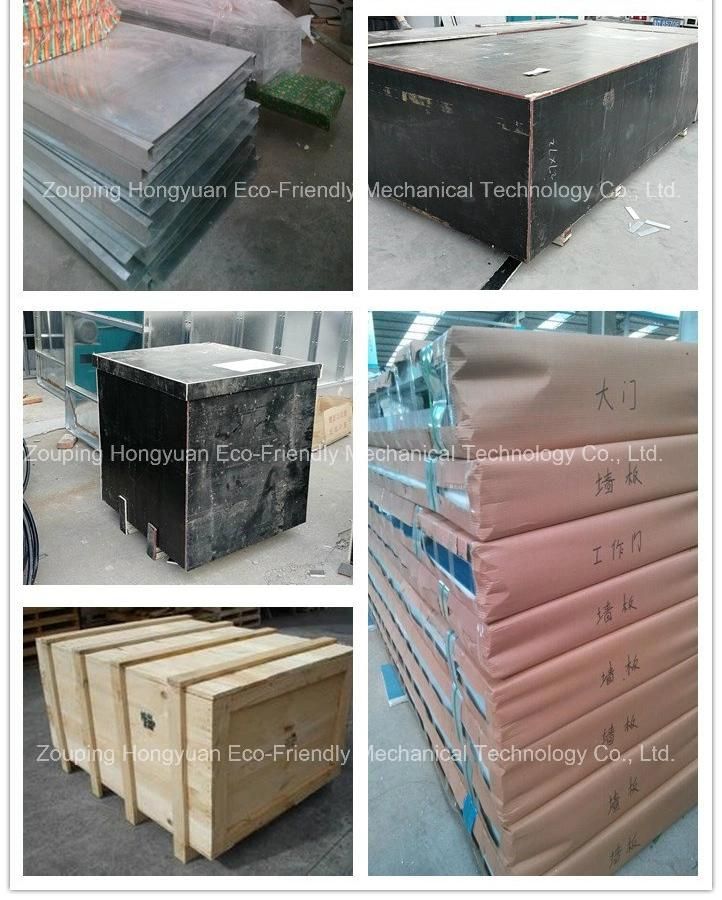

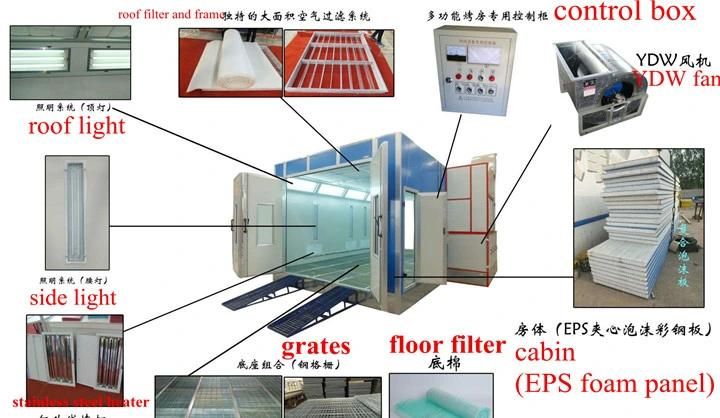

details show of paint booth with gas burner

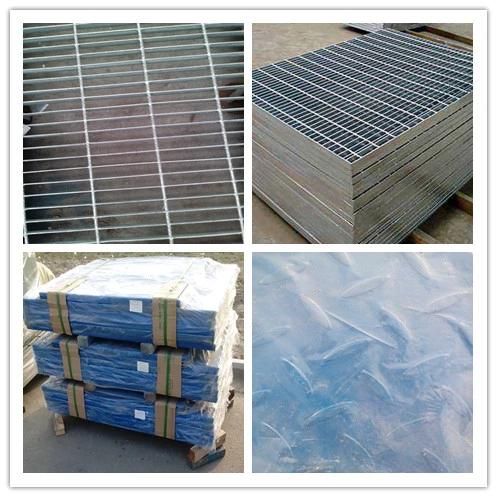

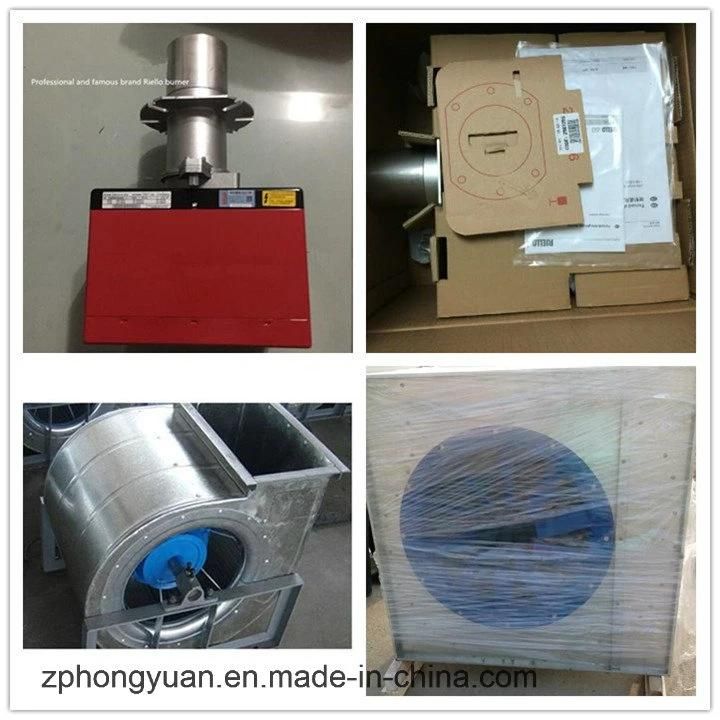

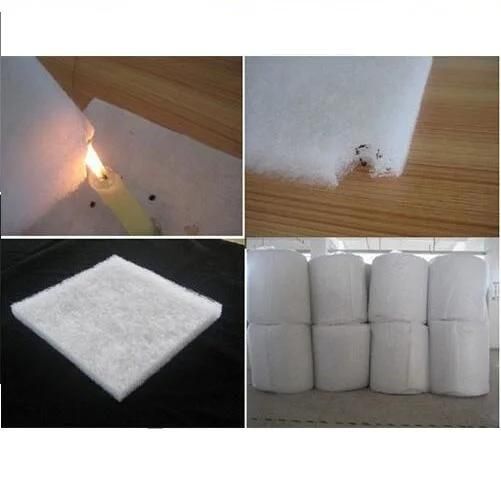

parts show of the paint booth with gas burner

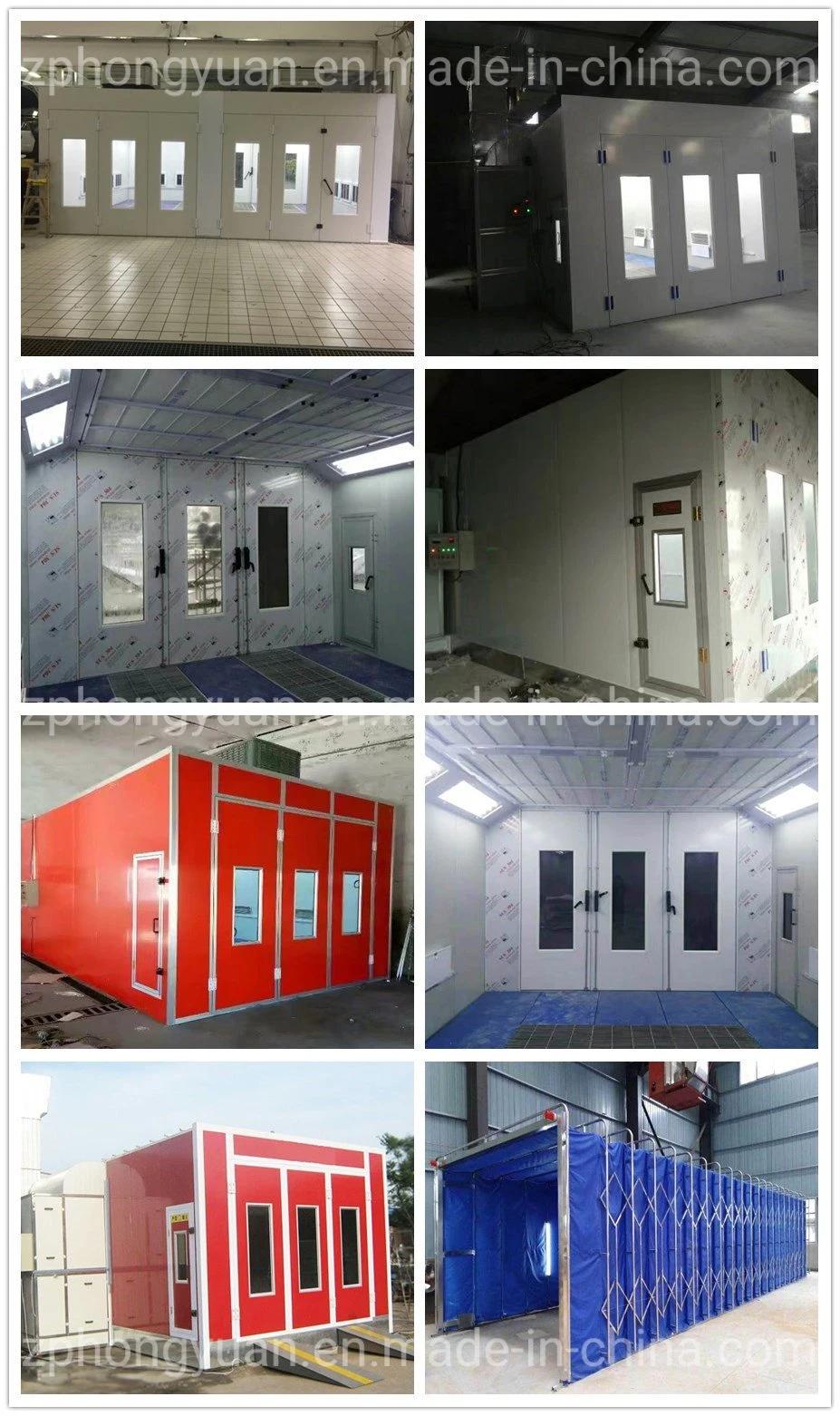

Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
