- Model NO.：STL12-60W
- Application：Highway, Square, Garden
- IP Rating：IP65
- Certification：CE, RoHS, CCC, ISO, GS
- Voltage：DC12V
- Solar Panel Type：Mono or Poly
- Controller：Smart MPPT
- Charging Time：5-8hrs Depends on Local Solar Radiation
- Working Mode：Full Power and Dim Mode
- Lighting Space：>17m
- Back up Days：5 Days
- Mounting Height：3m 4m 5m 6m 7m
- Lighting Time：Dusk-to-Dawn 12 Hours with Dim Energy Saving Mode
- Distance Between Poles：15-22m
- Battery Type：Gel Battery
- Transport Package：Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
- Specification：A Grade
- Trademark：SunMaster
- Origin：Zhejiang, China.
- HS Code：9405409000
- Production Capacity：3, 000PCS ,Month
Basic Info.
Model NO.
STL12-60W
Application
Highway, Square, Garden
IP Rating
IP65
Certification
CE, RoHS, CCC, ISO, GS
Voltage
DC12V
Solar Panel Type
Mono or Poly
Controller
Smart MPPT
Charging Time
5-8hrs Depends on Local Solar Radiation
Working Mode
Full Power and Dim Mode
Lighting Space
>17m
Back up Days
5 Days
Mounting Height
3m 4m 5m 6m 7m
Lighting Time
Dusk-to-Dawn 12 Hours with Dim Energy Saving Mode
Distance Between Poles
15-22m
Battery Type
Gel Battery
Transport Package
Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
Specification
A Grade
Trademark
SunMaster
Origin
Zhejiang, China.
HS Code
9405409000
Production Capacity
3, 000PCS /Month
Product Description
1.Support more than 10 rainy days with the best technology 2.210lm/W super bright led chip3.3 Lighting Mode for choosing, motion sensor for energy saving.4.Detachable design of battery pack and led chip,easy to maintenance.5.Waterproof IP65.6.Turn on at dusk and tun off at dawn automatically.

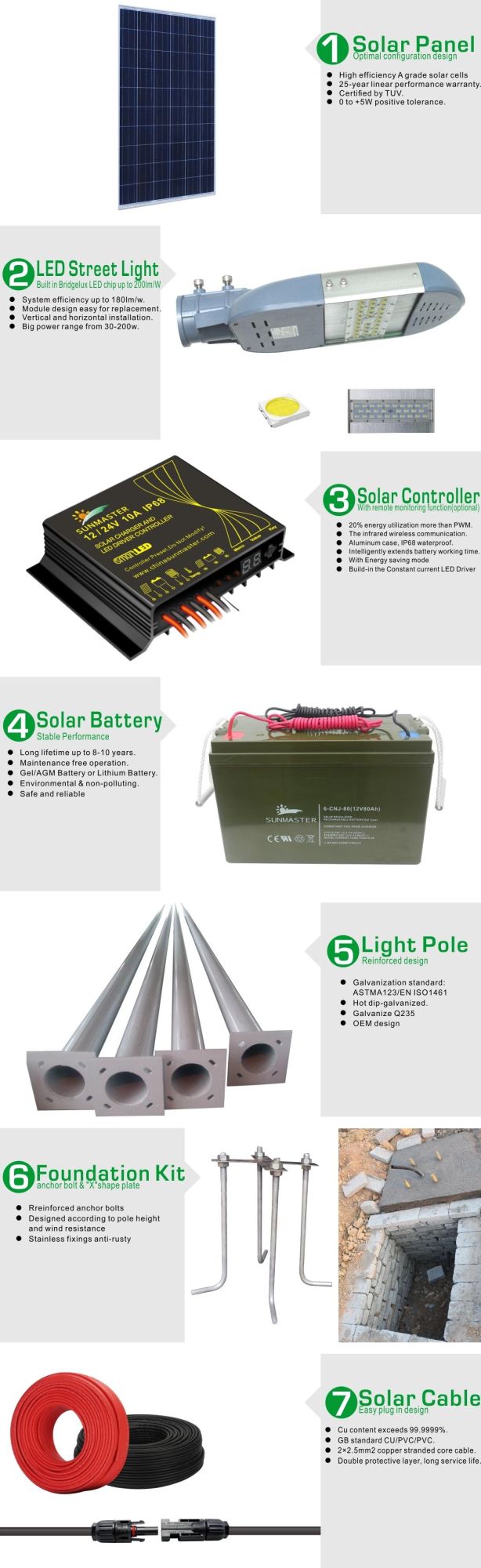

| Lighting Time | 10-14hrs/day(adjustable),3-7 rainy days back-up |
| Solar Panel | Poly solar panel 150W(optional)*1pcs,high efficiency,life span >25years 80% rated output power |
| Gel Battery | Capacity 60Ah/12v(optional)*2pcs,free maintenance,better weather-ability(-20ºC to +55ºC)
Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years |
| Solar Controller | MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years |
| LED Lamp | LED power 60w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs |
| Light Pole | Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years |

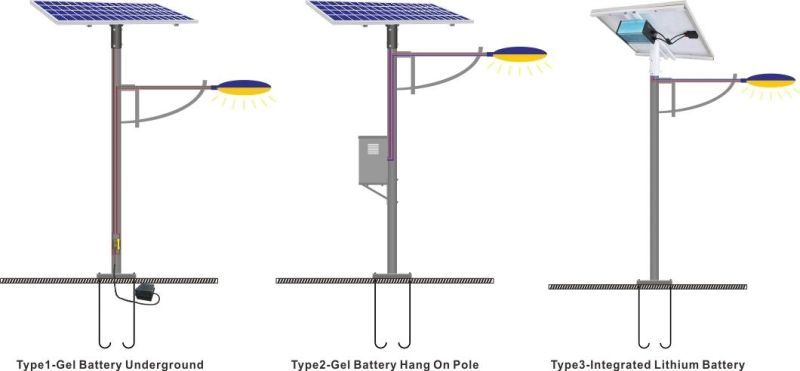

| Solar Battery Installtion Position |
| Recommended configurations |
| Lamp | Pole | Solar Panel | GEL Battery | Lighting Space | Controller | Working Hours | Backup |
| 20w | 3-4m | 50w*1pcs | 40Ah*1pcs | >12m | MPPT | 10-14 hours | 3-5days |
| 30w | 4-5m | 80w*1pcs | 60Ah*1pcs | >14m | MPPT | 10-14 hours | 3-5days |
| 40w | 5-6m | 100w*1pcs | 80Ah*1pcs | >15m | MPPT | 10-14hours | 3-5 days |
| 50w | 6-7m | 120w*1pcs | 50Ah*2pcs | >17m | MPPT | 10-14 hours | 3-5days |
| 60w | 7-8m | 150w*1pcs | 60Ah*2pcs | >20m | MPPT | 10-14 hours | 3-5 days |
| 70w | 7-8m | 180w*1pcs | 70Ah*2pcs | >22m | MPPT | 10-14 hours | 3-5 days |
| 80w | 8-9m | 200w*1pcs | 80Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 90w | 8-9m | 120w*2pcs | 90Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 100w | 9-10m | 130w*2pcs | 100Ah*2pcs | >27m | MPPT | 10-14 hours | 3-5 days |
| 120w | 10-11m | 150w*2pcs | 120Ah*2pcs | >30m | MPPT | 10-14 hours | 3-5 days |
| 140w | 11-12m | 180w*2pcs | 140Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 150w | 11-12m | 200w*2pcs | 150Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 180w | 12-13m | 250w*2pcs | 180Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
| 200w | 12-13m | 280w*2pcs | 200Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
