- Model NO.：STL12-30W
- Application：Highway, Square, Garden
- IP Rating：IP65
- Certification：CE, RoHS, CCC, ISO, GS
- Voltage：DC12V
- Solar Panel Type：Mono or Poly
- Controller：MPPT
- Working Mode：Full Power and PIR Sensor
- Maintenance：9 Years Free Maintenance
- Lighting Area：100m2
- Back up Days：5 Days
- Mounting Height：3m 4m 5m 6m 7m
- Lighting Time：Over 3 Nights
- Distance Between Poles：10-15m
- Battery Type：Gel Battery
- Transport Package：Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
- Specification：A Grade
- Trademark：SunMaster
- Origin：Zhejiang, China.
- HS Code：9405409000
- Production Capacity：3, 000PCS ,Month
Basic Info.
Model NO.
STL12-30W
Application
Highway, Square, Garden
IP Rating
IP65
Certification
CE, RoHS, CCC, ISO, GS
Voltage
DC12V
Solar Panel Type
Mono or Poly
Controller
MPPT
Working Mode
Full Power and PIR Sensor
Maintenance
9 Years Free Maintenance
Lighting Area
100m2
Back up Days
5 Days
Mounting Height
3m 4m 5m 6m 7m
Lighting Time
Over 3 Nights
Distance Between Poles
10-15m
Battery Type
Gel Battery
Transport Package
Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
Specification
A Grade
Trademark
SunMaster
Origin
Zhejiang, China.
HS Code
9405409000
Production Capacity
3, 000PCS /Month
Product Description

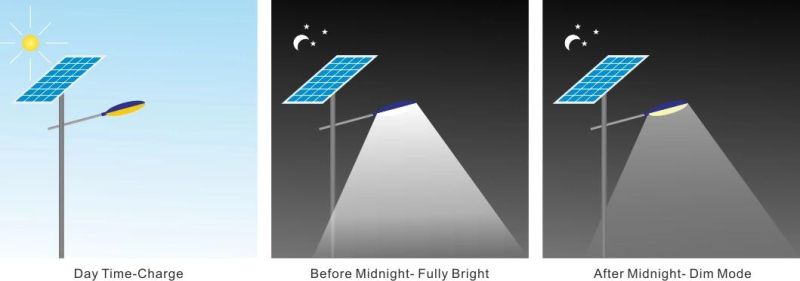

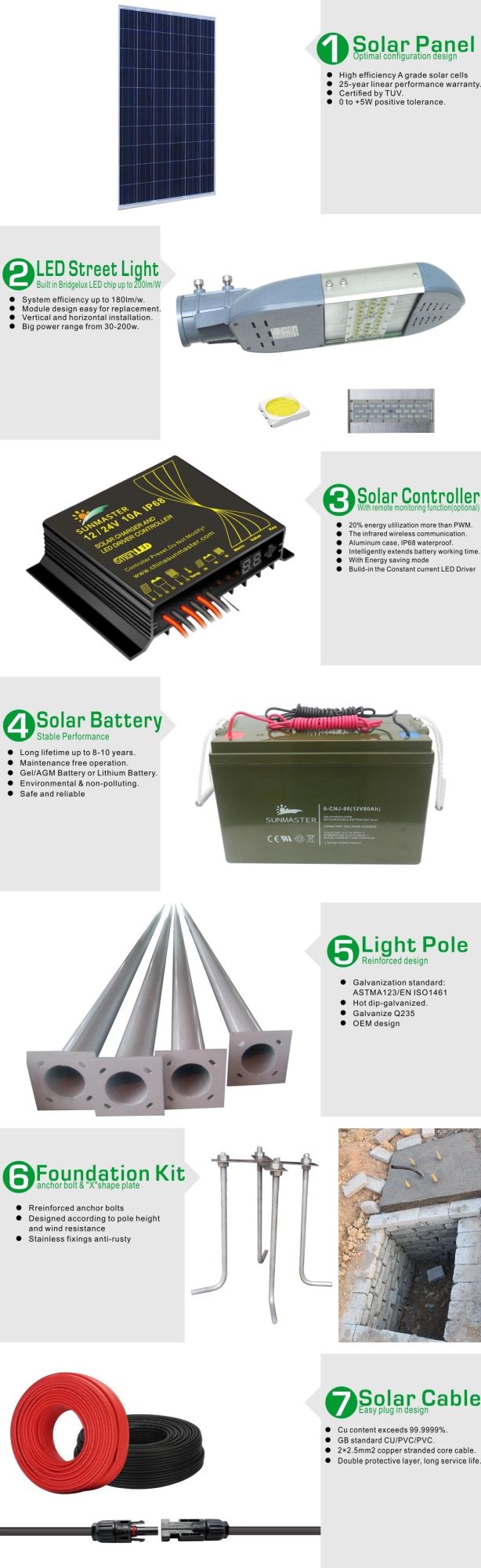

1.Pre-assembled solar power street light ,easy installation.2.The solar lighting system consists of LED street lamp,solar panel,lithium battery,solar controller and lamp housing,OEM and customized production available 3.High efficiency monocrystalline solar cells to achieve more efficient photoelectric conversion.4.Light pole made of hot dip galvanized steel,anti corossion,solid and reliable.5.Intelligent light-control and time-control with motion sensor option.
| Lighting Time | 10-14hrs/day(adjustable),3-7 rainy days back-up |
| Solar Panel | Poly solar panel 80W(optional)*1pcs,high efficiency,life span >25years 80% rated output power |
| Gel Battery | Capacity 60Ah/12v(optional)*1pcs,free maintenance,better weather-ability(-20ºC to +55ºC)
Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years |
| Solar Controller | MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years |
| LED Lamp | LED power 30w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs |
| Light Pole | Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years |

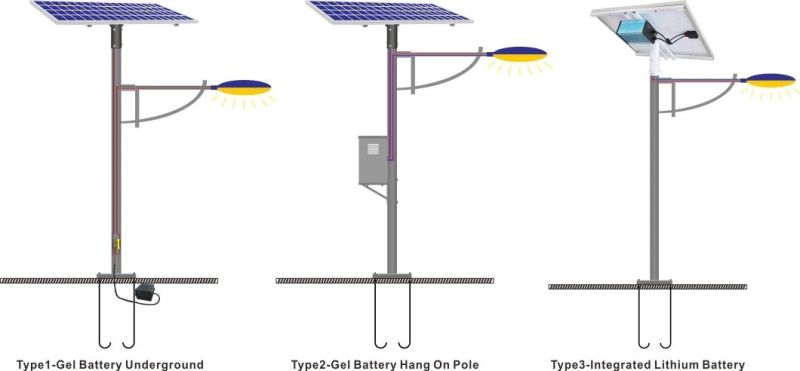

| Solar Battery Installtion Position |
| Recommended configurations |
| Lamp | Pole | Solar Panel | GEL Battery | Lighting Space | Controller | Working Hours | Backup |
| 20w | 3-4m | 50w*1pcs | 40Ah*1pcs | >12m | MPPT | 10-14 hours | 3-5days |
| 30w | 4-5m | 80w*1pcs | 60Ah*1pcs | >14m | MPPT | 10-14 hours | 3-5days |
| 40w | 5-6m | 100w*1pcs | 80Ah*1pcs | >15m | MPPT | 10-14hours | 3-5 days |
| 50w | 6-7m | 120w*1pcs | 50Ah*2pcs | >17m | MPPT | 10-14 hours | 3-5days |
| 60w | 7-8m | 150w*1pcs | 60Ah*2pcs | >20m | MPPT | 10-14 hours | 3-5 days |
| 70w | 7-8m | 180w*1pcs | 70Ah*2pcs | >22m | MPPT | 10-14 hours | 3-5 days |
| 80w | 8-9m | 200w*1pcs | 80Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 90w | 8-9m | 120w*2pcs | 90Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 100w | 9-10m | 130w*2pcs | 100Ah*2pcs | >27m | MPPT | 10-14 hours | 3-5 days |
| 120w | 10-11m | 150w*2pcs | 120Ah*2pcs | >30m | MPPT | 10-14 hours | 3-5 days |
| 140w | 11-12m | 180w*2pcs | 140Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 150w | 11-12m | 200w*2pcs | 150Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 180w | 12-13m | 250w*2pcs | 180Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
| 200w | 12-13m | 280w*2pcs | 200Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
