• Pixel Density：3906dots,M2
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, CCC, ISO9001
• LED Lamp：Nationstar SMD3535

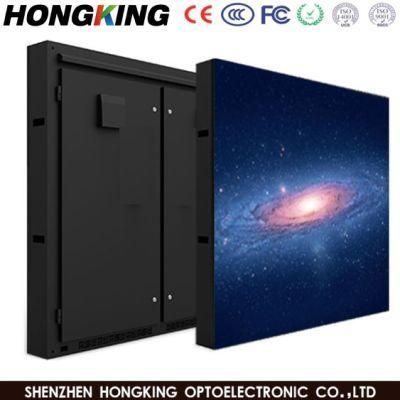

• Cabinet Size：768mm*768mm
• Warranty：3 Years
• Working Voltage：AC220V,110V± 10%
• Temperature: Working：-35~+85
• Display Format：1080P (Full-HD)
• Competitive Price：Factory Price
• Waterproof Grade：IP67
• Refresh Rate：1920Hz
• Transport Package：Wooden Box
• Specification：256*256mm
• Trademark：HONGKING
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：1000sqm,Month

Basic Info.

Pixel Density 3906dots/M2 Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, CCC, ISO9001 LED Lamp Nationstar SMD3535 Cabinet Size 768mm*768mm Warranty 3 Years Working Voltage AC220V/110V± 10% Temperature: Working -35~+85 Display Format 1080P (Full-HD) Competitive Price Factory Price Waterproof Grade IP67 Refresh Rate 1920Hz Transport Package Wooden Box Specification 256*256mm Trademark HONGKING Origin Shenzhen China HS Code 8528591090 Production Capacity 1000sqm/Month

Product Description

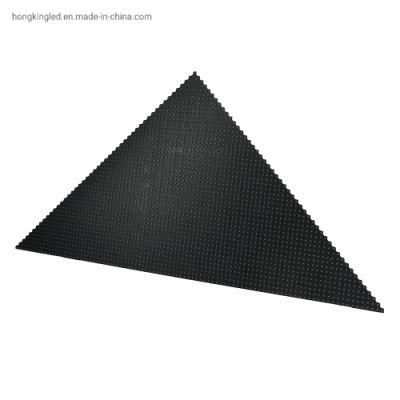

Outdoor Giant Indoor Full Color Soft Flexible  LED Display Screens Panel for Advertising

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807

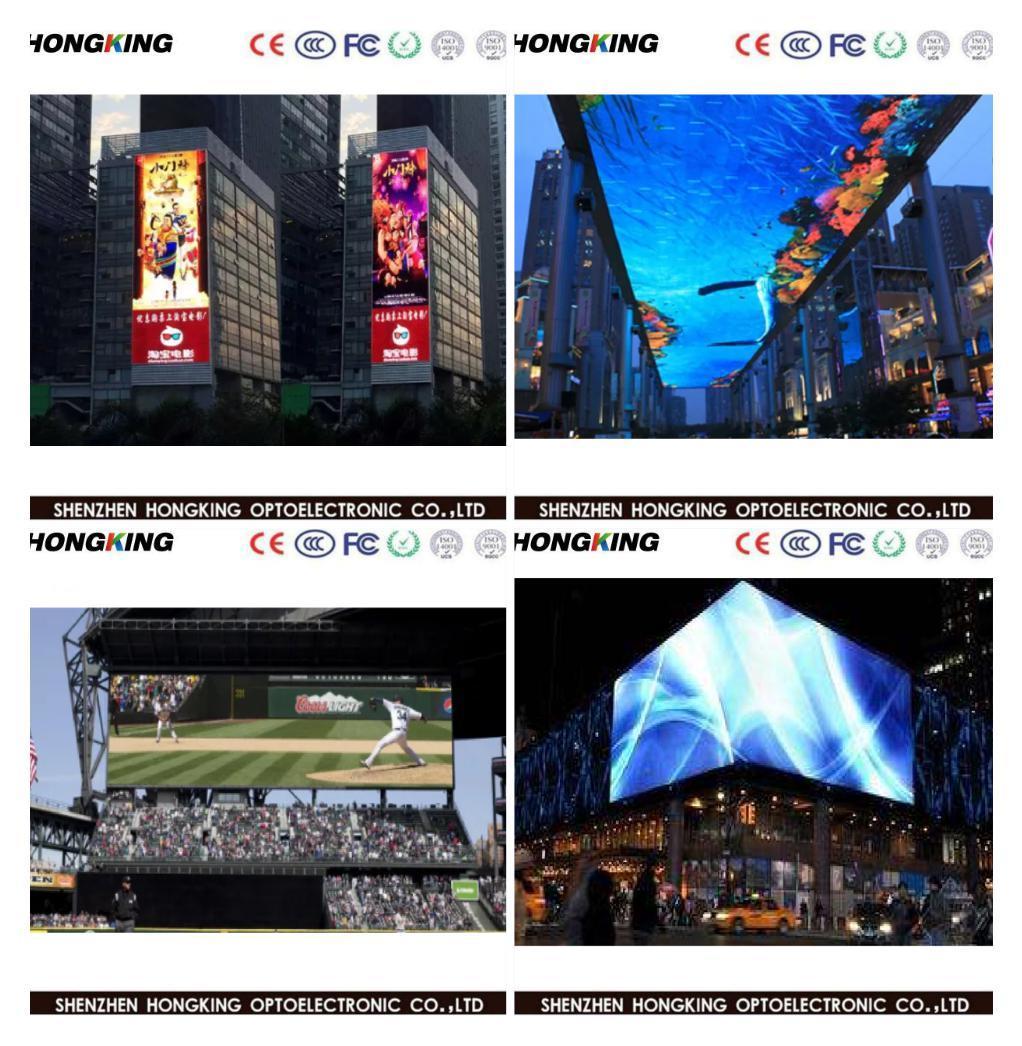

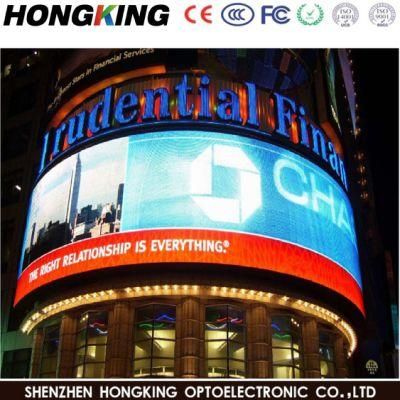

HONGKING LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.



P16 LED Display
1. Certification: CE, RoHS, UL, SGS
2. Warranty: three years
3. Support TV, S-Video, DVI, AVI, MOV.
4. High resolution, 3906 DOT/sqm
5. Static scanning, true classics;


1	Pixel Pitch(mm)	16 mm
2	pixel density(dot/M2)	3906
3	Brightness (cd/M2)	≥7500
4	Module size(mm)	256×256
6	Weight (g)	600g
7	LED LAMP	Nationstar led lamp
1	Driver IC	MBI5124
2	Power Supply	G-energy
3	Best View Distancing	16 m
4	Vertical Viewing Angle	140° (Standard LEDs Viewing Angle)
5	Horizontal Viewing Angle	140° (Standard LEDs Viewing Angle)
6	Brightness	>7500cd/M2  Ensure brilliant images
7	Brightness Adjustment	Manual, 256 level; Auto, 8 levels
8	Grey Scale	256 Shades Per Color
9	Grey levels	16 bits
10	Operating Temperature	-30ºC~+60ºC 10%~95%RH
11	LEDs Lifetime	>100,000 Hours(over 11 years lifetime)
12	Input Voltage	AC110V/220V±10%
13	Input Power Frequency	50/60Hz
14	Screen Power Consumption	Max:1000w/M2; Average:330w/M2
15	Refresh Rate	1920HZ
16	Frame Rate	> 60 frames/sec
17	Defect Rate	≤0.0001
19	Humidity	0-90%
21	Control Method	Synchronized with computer monitor
23	Way of Drive	static  scan
24	MTBF	> 10000 hours
25	Color Temperature	7000K±500
26	Color	> 16.7millions
27	Support  Mode	VGA, 800*800 display synchronically with the computer,  correspondence dot to dot
28	Control Distance	120 m (no repeating); Optical fiber transmission: 500m- 10km
29	Systems Operating Platform	WINDOWS(WIN2000, WINXP,WIN7)

PACKING SHIPPING




Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen






OEM ODM Service:
Pixels Pitch: P1.6 P1.9 P2 P2.5 P3 P3.91 P4 P4.81 P5 P6 P6.25 P6.66 P7.62 P8 P8.94 P9.64 P10 P12 P13.33 P16 P18.75 P20 P25 P31.25 P37.5mm etc
LED Screen Size: 1x1mts / 2x2mst / 3x2mts / 3x3mets / 4x3mts / 4x4mts / 5x4mts / 6x4mts / 7x5mts / 8x5mts /10x6mts etc

LED Cabinet Size: 480mmx480mm / 500mmx500mm / 576mmx576mm / 640mmx640mm / 800mmx800mm / 960mmx960mm /1024mmx1024mm etc

LED Control System: Novastar / Linsn /  Onbon / TF / HD Card etc
LED Power supply: Meanwell / YHY / G-Energy
LED Chips: Cree / Nichia / Epistar / Opto / Silan etc
Drive IC: MBI5024 / MBI5026 / MBI5027 / MBI5030 / MBI5031 / MBI5035 / MBI5040 / MBI5041 / MBI5042 / MBI5050 / MBI5153 etc
