P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：8mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：200W,M2

Base Info

  • Model NO.：P8mm
  • Pixel Density：15625 Dots,Sqm
  • Scanning Mode：1,4scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Refresh Rate：1920~3840Hz
  • Brightness：6500nits
  • Screen Resolution：14400dots
  • Cabinet Size：960*960mm
  • Ave Power Consumption：200W,M2
  • Max Power Consumption：600W,M2
  • Transport Package：Plywooden Case
  • Specification：320*160mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

Basic Info.

Model NO. P8mm Pixel Density 15625 Dots/Sqm Scanning Mode 1/4scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Refresh Rate 1920~3840Hz Brightness 6500nits Screen Resolution 14400dots Cabinet Size 960*960mm Ave Power Consumption 200W/M2 Max Power Consumption 600W/M2 Transport Package Plywooden Case Specification 320*160mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:
1.High waterproof grade design:IP65

2.High brightness up to 6500CD/m2 to achieve good effects

3.960*960mm standard cabinet size for short delivery time, the size also can be customized


PRODUCT PARAMATERS:

NO.ParametersSpecifications
1ModelP8
2Pixel Pitch(mm)8
3LEDSMD3535
4Screen Resolution15625dots/sqm
5Scan Method1/4
6Module size(mm)320x160
7Cabinet size(L*H*W mm)960x960x150
8Cabinet(Kg)36
9Viewing angleH:140°/  V:140°
10Grey Scale14bit
11Refresh rate(HZ)1920~3840HZ
12Brightness(nits)≥6500
13Working Voltage(V)AC 100~240V
14AVE. power consumption (W/m2)200
15MAX. power consumption(W/m2)600
16IP gradeF:IP65 / R:IP54
17Working humidity10~95%RH
18Storage humidity10~95%RH
19Working temperature-30ºC~60ºC
20certificatesCCC,FCC,CE,RoHS.ETL

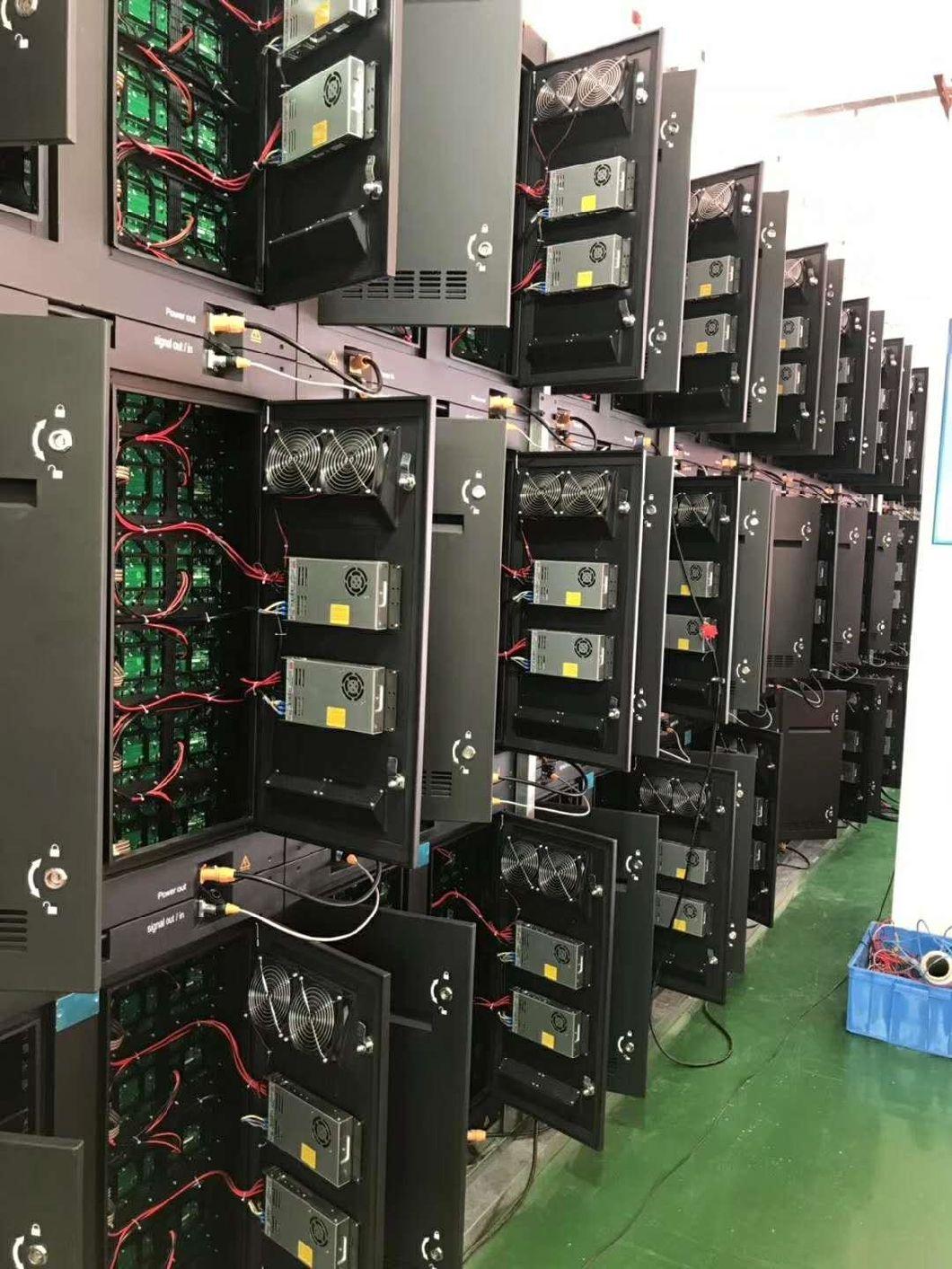

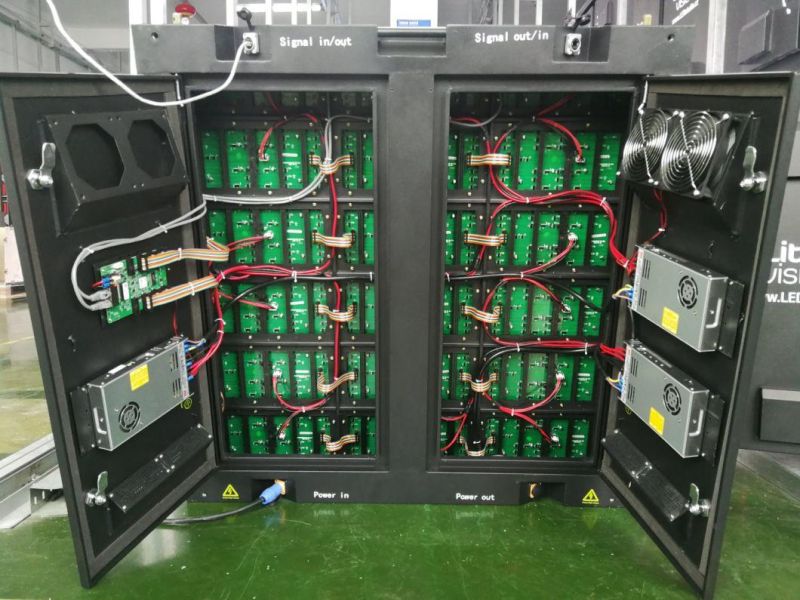

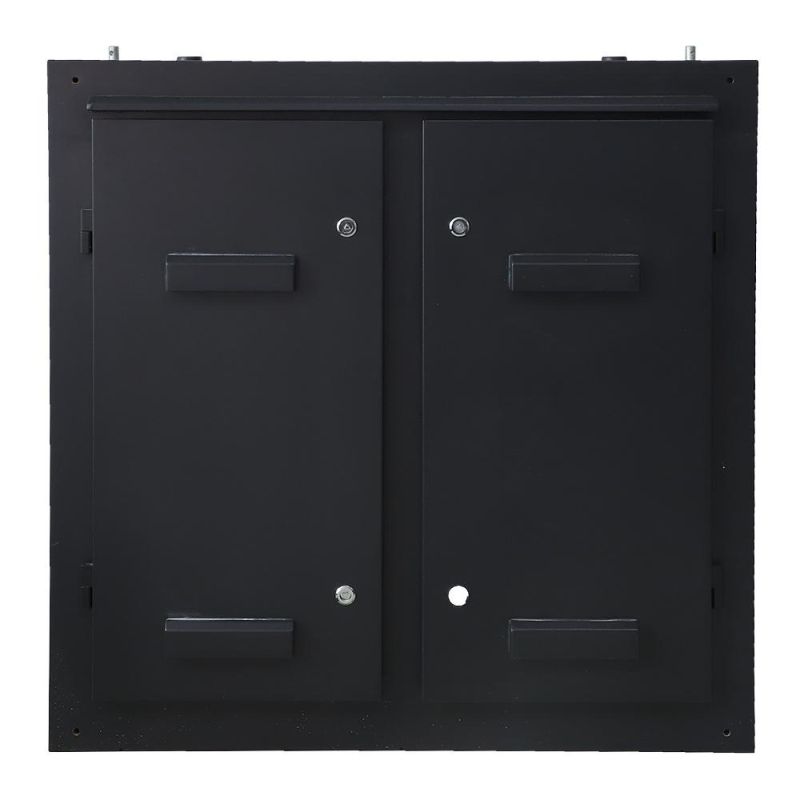

PRODUCT PHOTOS:
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising

P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising
ACCESSORY:
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising
CAD DRAWINGS:
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising

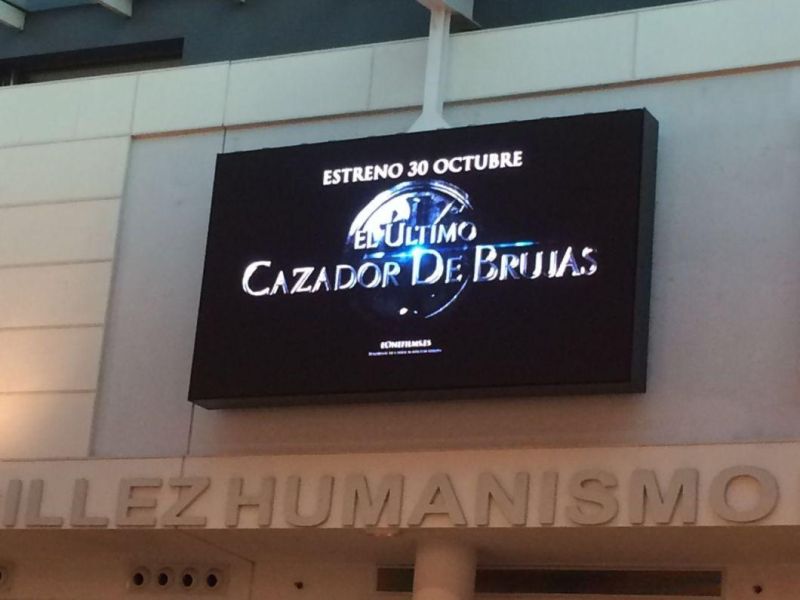

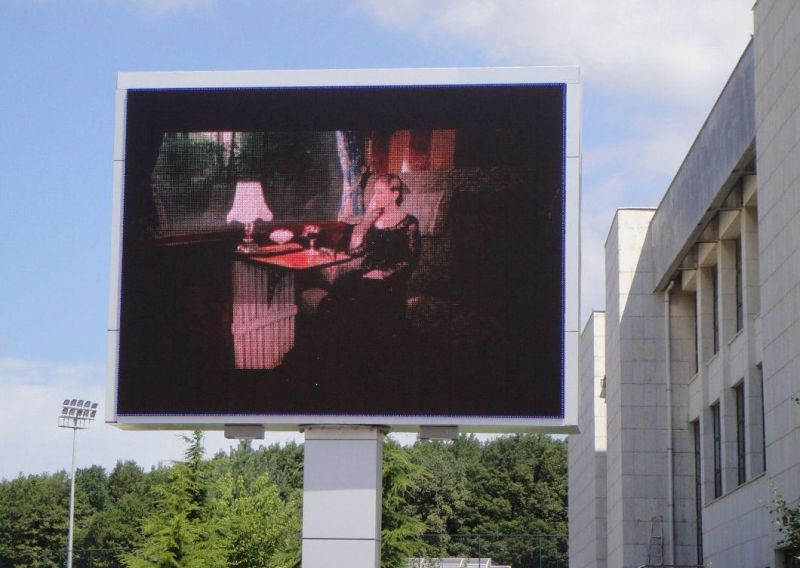

CASES:
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising

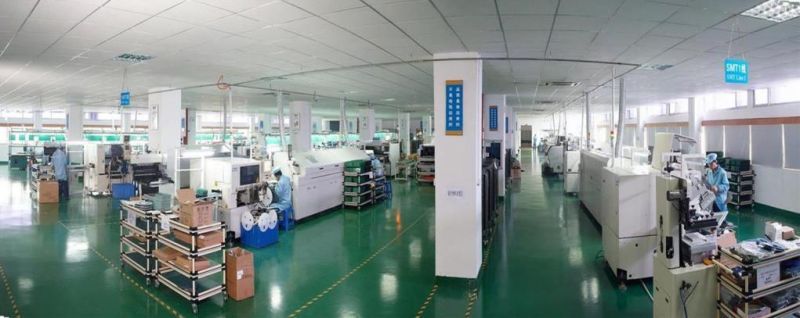

WORKSHOP:
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising


PACKAGE:
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising


CULTURE:
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising

CERTIFICATES:
P8mm 960*-960mm Full Color Outdoor LED Screen /LED Panel/Outdoor LED Display Billboard for Advertising


OUR SERVICE:
1. Your inquiry will be replied in 24 hours

2. Full solution will be customized according to your requirement

3.Two years after-sales warranty, free repair service during the quality warranty period

HOW TO GET A FULL QUOTATION?
Send the message of pixel pitch,specific size and installation information to us. Full solution will be glad to provide.
