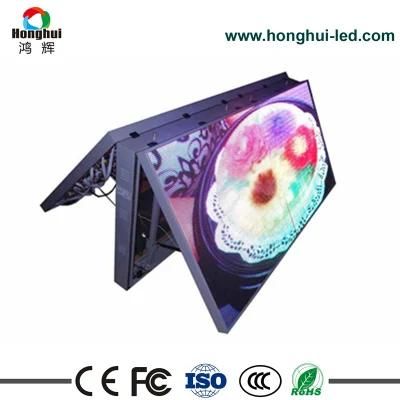

HD P8mm Outdoor Fixed LED Billboard Display with 5, 500nits Brightness
Yiwu Yangchuan E-Commerce Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：8mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：15,625 Dots,Sqm
- Scanning Mode：1,8 Scan
Base Info
- Model NO.：BOF-B-5
- System Operating Platform：WIN XP
- Display Type：LED Video Display
- Application：Advertising
- IP Rating：IP54
- Certification：CE, RoHS, UL, CCC, ETL
- Material：Steel,Aluminum
- Usage：Outdoor LED Billboard
- Warranty：2 Years
- Gray Scale：16bit
- Brightness：6500 Nits
- Feature：Energy Saving
- Cabinet Weight：55kg
- Transport Package：Plywood Case
- Specification：320*160mm
- Trademark：Bako Vision
- Origin：China
- HS Code：8528591090
- Production Capacity：8000sqm Per Year
Description
Basic Info.
Model NO. BOF-B-5 System Operating Platform WIN XP Display Type LED Video Display Application Advertising IP Rating IP54 Certification CE, RoHS, UL, CCC, ETL Material Steel/Aluminum Usage Outdoor LED Billboard Warranty 2 Years Gray Scale 16bit Brightness 6500 Nits Feature Energy Saving Cabinet Weight 55kg Transport Package Plywood Case Specification 320*160mm Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 8000sqm Per YearProduct Description
HD P8mm Outdoor Fixed LED Billboard Display with 5,500nits brightness
Product Description
60% Energy Saving

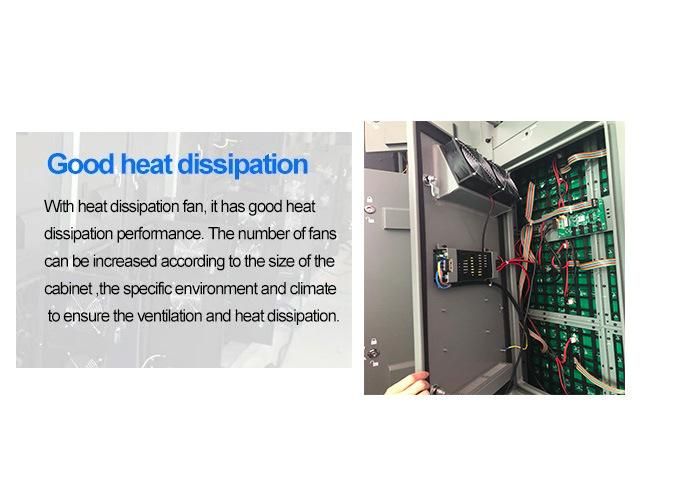

Lower Temperature
Billboard Led Display Parameters:
| BOF-B-3 | BOF-B-4 | BOF-B-5 | BOF-B-6 | BOF-B-8 | |
| Pixel Pitch | 3.2mm | 4mm | 5mm | 6.67mm | 8mm |
| Pixel Configuration | SMD1921 | SMD1818 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 97,656 pixels/m² | 62,500pixels/m² | 40,000pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
| Module Size | 192*192 | 320*160 | 320*160 | 320*160 | 320*160 |
| Panel Size | 960*960*150 | 960*960*150 | 960*960*150 | 960*960*150 | 960*960*150 |
| Panel Resolution | 300*300 | 240*240 | 192*192 | 144*144 | 120*120 |
| Panel Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
| Weight(sqm) | 65/45 | 65/45 | 65/45 | 65/45 | 65/45 |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Brightness | 6500 nits | 6500 nits | 6500 nits | 6500 nits | 6500 nits |
| Refresh Rate | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Scan Method | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/10 Scan | 1/4 Scan |
Billboard Led Display Features:
Company Introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Our Services
1.Reply enquiries in 24 hours.
2. Provide unique and professional solutions based on customer's requirement.
3.Market research and forecast for customer.
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service
