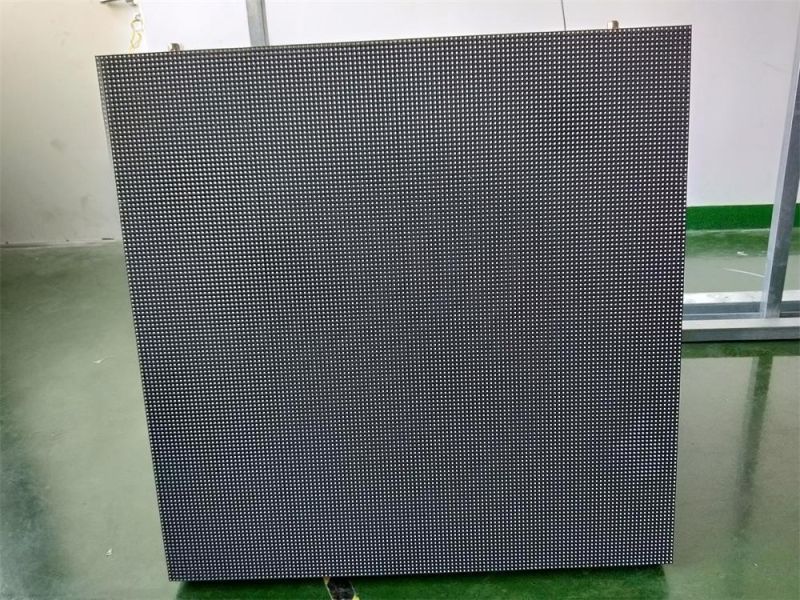

Outdoor P5 Full Color High Definition LED Display Billbaord for Advertising
Danyang Yun Kai Metal Products- IP Rating：IP65
- Pixel Pitch：5mm
Base Info
- Model NO.：5mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
- Pixel Density：40000dots,Sqm
- Scanning Mode：1,8 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL, L,C
- Module Size：160X160mm
- Module Resolution：32X32dots

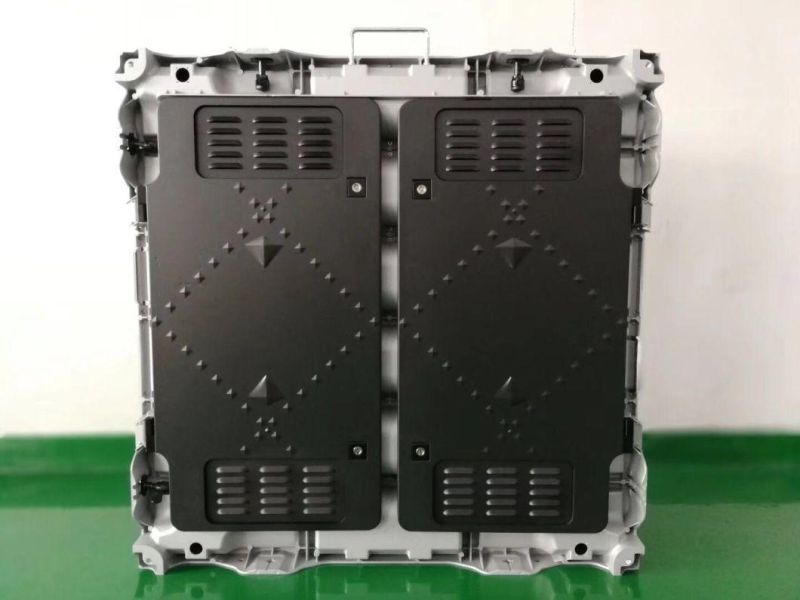

- Cabinet Size：960X960mm
- Cabinet Resolution：192X192dots
- Screen Brightness：7500nits
- Protection Grade：IP65
- Compliance：Ce , RoHS
- Screen Resolution：40000dots,Sqm
- Cabinet Material：Steel Iron,Aluminum
- Maintenance：Rear, Front Service
- Refresh Rate：1920-3840Hz
- Drive Method：1,8 Scan
- Avg.Power Consumption：300W,Sqm
- Max.Power Consumption：700W,Sqm
- LED Type：SMD2525
- Transport Package：Plywooden Case
- Specification：960x960mm
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
ScreenDrive Mode: 1/8 Constant Current Drive / Horizontal Viewing Angle 140 Deg Vertical Viewing Angle 140 Deg Brightness 6000 cd//m2 Grey Scale: 14 bits Refresh Rate ≥1920 Hz Cabinet Resolution 128x128 dots Max. Power Consumption 700 W/m2 Ave. Power Consumption 300 W/m2 Cabinet Size 640x640 mm Cabinet Thickness 150 mm Cabinet Material: Steel/Aluminum Color >16.7 M Input Voltage AC 110V~220V+/-10% V Refresh Frame Frequency 60 Hz Protection Level: IP65 / Working Environment: Outdoor / Working Temperature -30- +60 ºC Operation humidity 10%-95% RH Certificates: CCC, CE,RoHS /

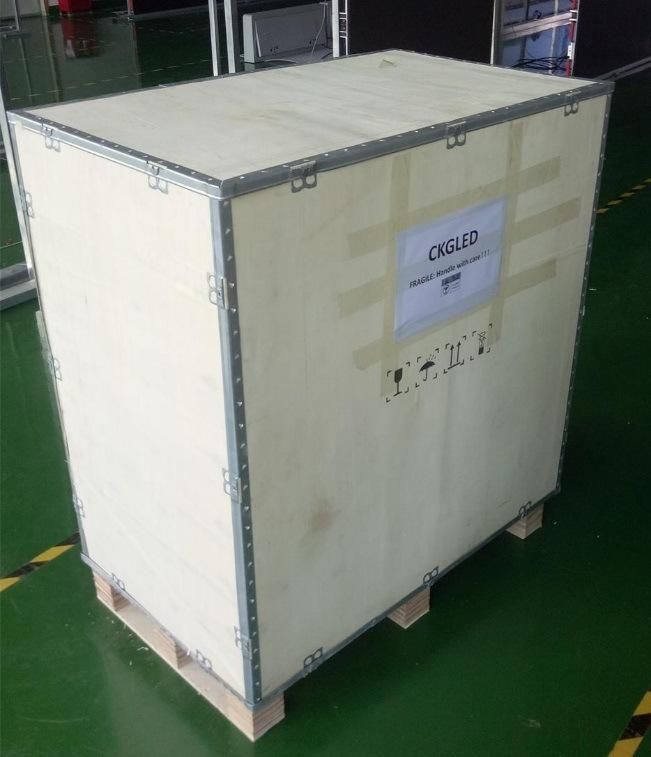

PACKAGE:
CERTIFICATES:

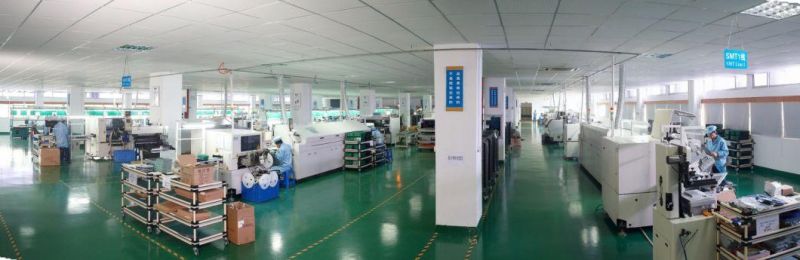

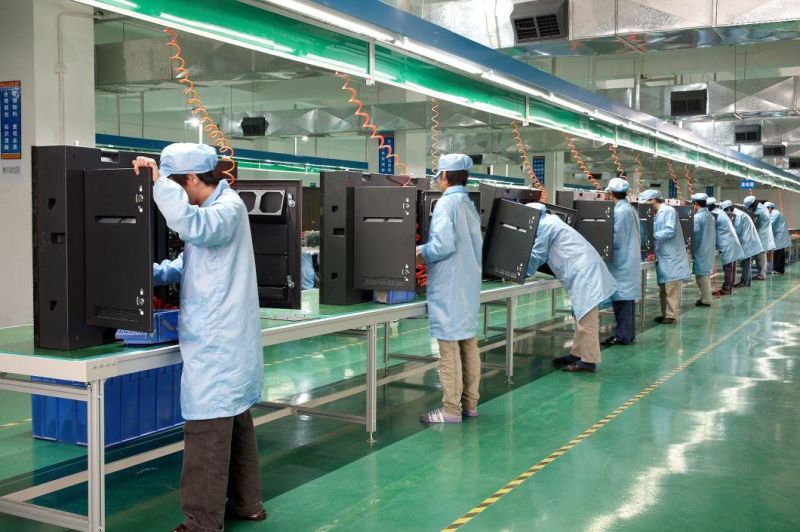

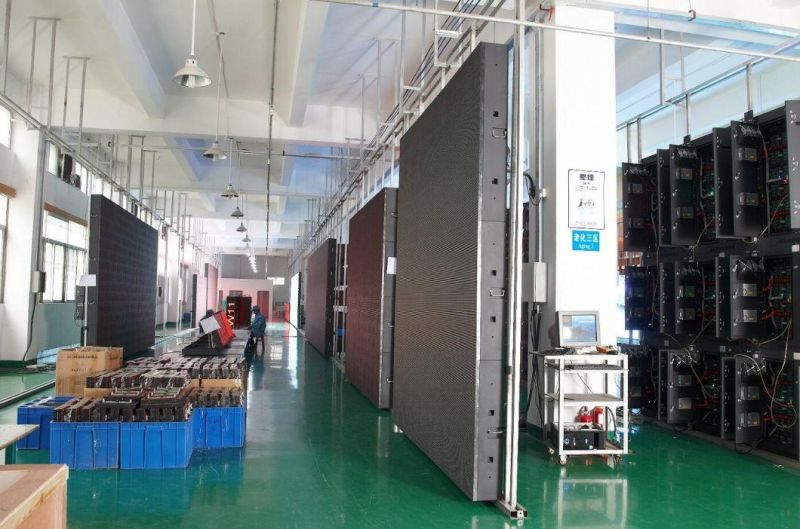

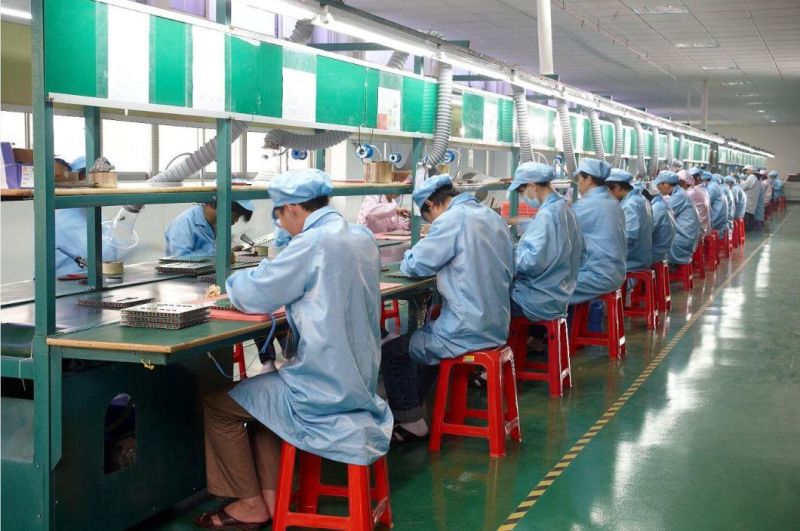

CKGLED FACTORY WORKSHOP:
CKGLED is a National Level High & New Technology Enterprise in China.
CKGLED offers LED display's design & production, Project installation and rental service.
CKGLED owns more than 20,000 SQM,two production bases with over 400 employees , which ensures our capacity of 6000sqm every month.
CKGLED has near 20 experienced engineers in LED application field. Almost 80 technicians focus on research & development, and quality control.
CKGLED equipped complete and advanced production facilities, monthly output up to 6000m2
CKGLED has solid cooperation with Nationstar/ Nichia/ Cree/ Kinglight, Meanwell / MBI, Jinlongyu etc. International standard first-class raw material suppliers.
CKGLED has built long-term business cooperation with companies from more than 150 countries in the world.
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

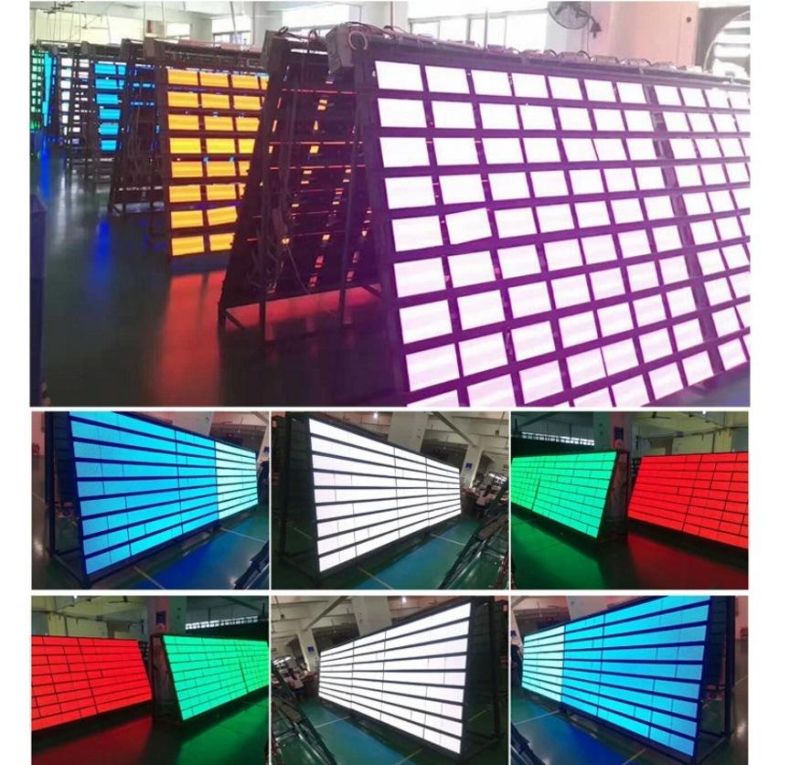

48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.

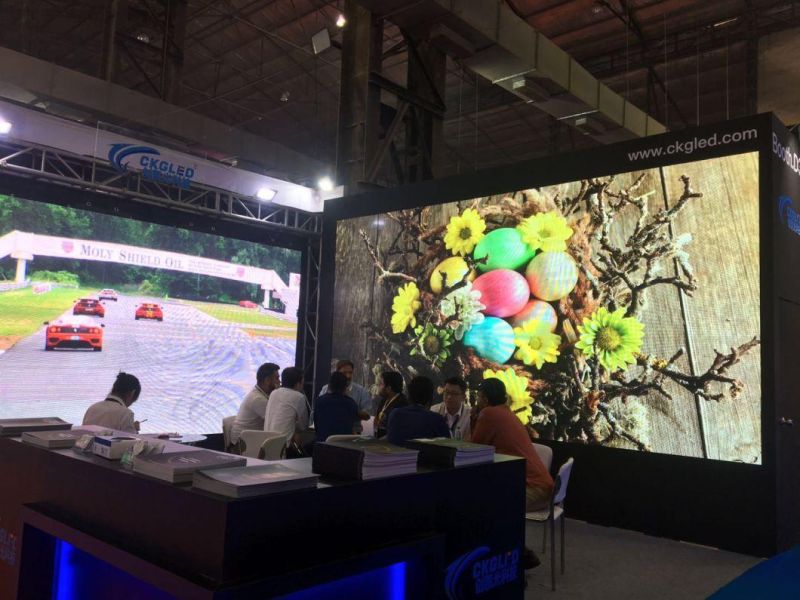

FOREIGN EXHIBITION:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
