• Model NO.：8mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：300W , m²
• Pixel Density：15625dots, Per Square Meter
• Scanning Mode：1,5 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Ave.Power Consumption：300W , Per Square Meter
• Max.Power Consumption：900W , Per Square Meter
• LED Module Size：256mm*128mm
• LED Cabinet Size：768mm*768mm , Customizable
• Protection：IP65 Waterproof

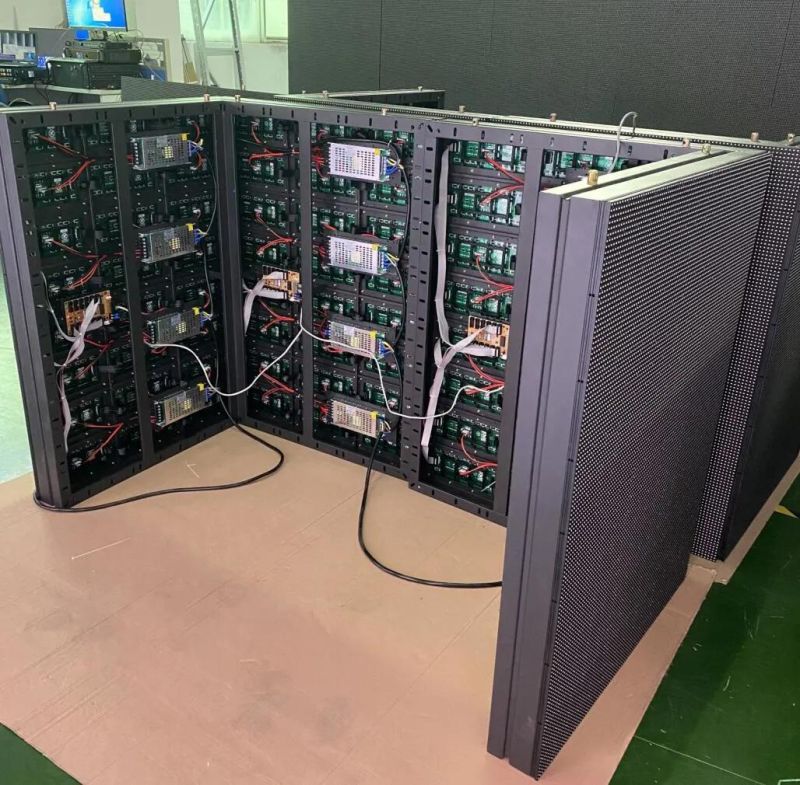

• Maintenance：Rear Service
• Frequency：1920Hz
• Drive Method：1,5 Scan

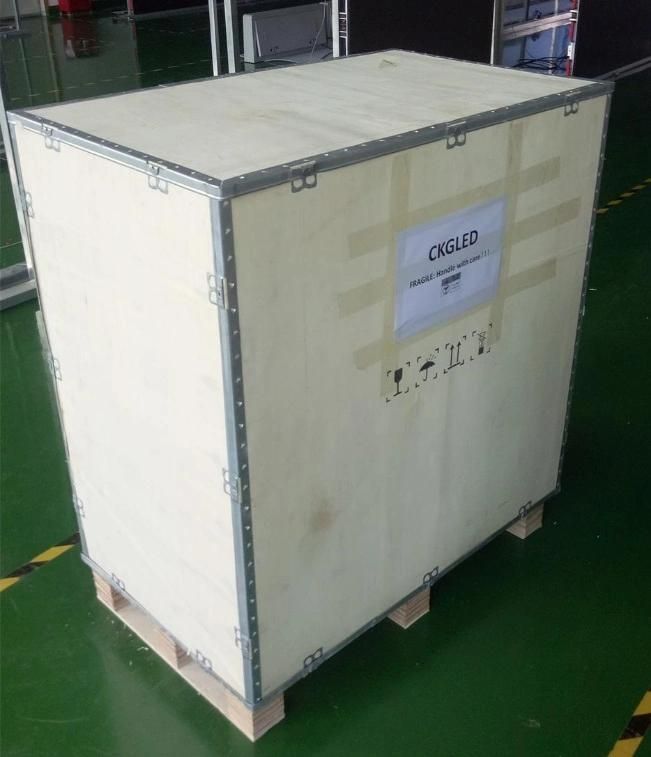

• Transport Package：Wooden Case
• Specification：4pcs,6pcs,8pcs cabinet in one case
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.

Parameters

Specifications

1

Model

FS8

2

Pixel Pitch (mm)

8

3

Physical Density (dot/m2)

15625

4

LED Configuration

1R1G1B

5

LED Type

SMD3535

6

Module Size (mm x mm)

256x128

7

Module Resolution (PX x PX)

32x16

8

Drive Mode

1/5 Constant Current Drive

9

Viewing Angle (Deg)

H: 140 / V: 140

10

Brightness (cd/m2)

6000

11

Grey Scale

16bit

12

Refresh Rate (Hz)

1920

13

Cabinet Resolution (PX x PX)

128x96

14

Power Consumption (W/m2)

MAX: 900 / AVE: 300

15

Cabinet Size (mm x mm)

768x768

16

Cabinet Weight (Kg)

28

17

Cabinet Material

Iron/Aluminum

18

Color (M)

>16.7

19

Input Voltage (V)

AC 110V~220V+/-10%

20

Refresh Frame Frequency (Hz)

60

21

Protection Level

IP65

22

Working Temperature (ºC)

-30°- +60°

23

Operation humidity (RH)

10%-95%

24

Certificates

CCC ,CE,RoHS
