• Model NO.：4mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：111111dots,Sqm
• Scanning Mode：1,32 Scan
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：256*128mm
• Module Resolution：64dots*32dots
• Cabinet Material：Iron,Aluminum
• Brightness(CD/Sqm)：2300nits
• Viewing Angle：H:140 Degree V140 Degree
• Ave.Power Consumption：250W,Sqm
• Controller：Novastar
• Maintenance：Rear Service
• Transport Package：Wooden Case
• Specification：768x768mm
• Trademark：CKGLED
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 4mm Pixel Configuration 1R,1G,1B Pixel Density 111111dots/Sqm Scanning Mode 1/32 Scan System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL Module Size 256*128mm Module Resolution 64dots*32dots Cabinet Material Iron/Aluminum Brightness(CD/Sqm) 2300nits Viewing Angle H:140 Degree V140 Degree Ave.Power Consumption 250W/Sqm Controller Novastar Maintenance Rear Service Transport Package Wooden Case Specification 768x768mm Trademark CKGLED Origin Shenzhen, China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

Indoor Fixed Installation P4mm LED Display


Product Features:
 Quite fan design, excellent heat dissipation.

Sidelocks design for better consistency and seamless assembly.

High polymer flexible mask, no mosaic phenomenon, better contract ratio

High-performance metal plate cabinet,concise cable

The sealed-type back cover,effectively prevent wrong operations from the amateur

V SERIES-P4MM TECHNICAL DATAS


NO.	Parameters	Specifications
1	Model	V04
2	Pixel Pitch (mm)	4
3	Physical Density (dot/m2)	62500
4	LED Configuration	1R1G1B
5	LED Type	SMD2020
6	Module Size (mm x mm)	256x128
7	Module Resolution (PX x PX)	64*32
8	Drive Mode	1/16 Constant Current Drive
9	Viewing Angle (Deg)	H:140 / V:140
10	Brightness (cd/m2)	1000
11	Grey Scale	14
12	Refresh Rate (Hz)	≥1920
13	Power Consumption (W/m2)	MAX.:750/ AVE.:250
14	Cabinet Size (mm x mm)	768X768
15	Cabinet Material	Iron / Aluminum
16	Color (M)	>16.7
17	Input Voltage (V)	AC 110V~220V+/-10%
18	Refresh Frame Frequency (Hz)	60
19	Protection Level	IP31
20	Working Environment	Indoor
21	Working Temperature (ºC)	-20°- +40°
22	Operation humidity (RH)	10%-90%
23	Certificates	CCC,CE,RoH

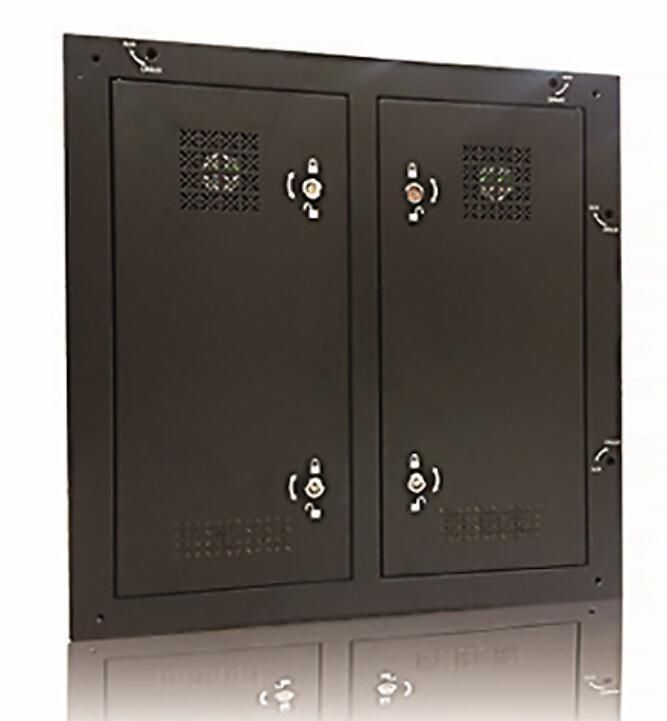

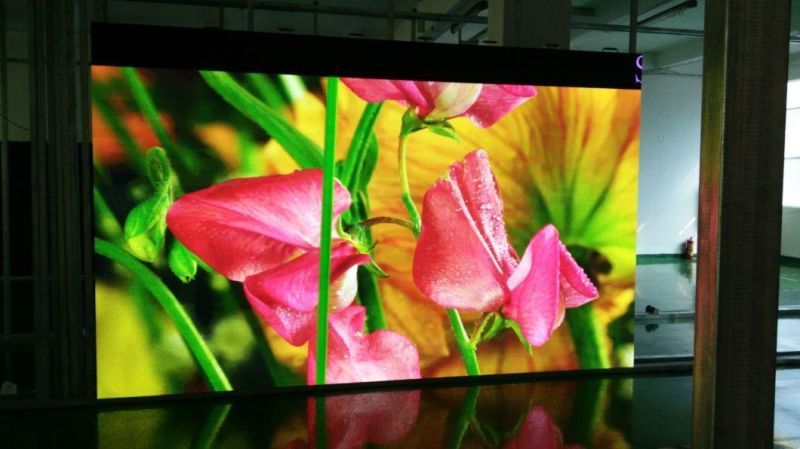

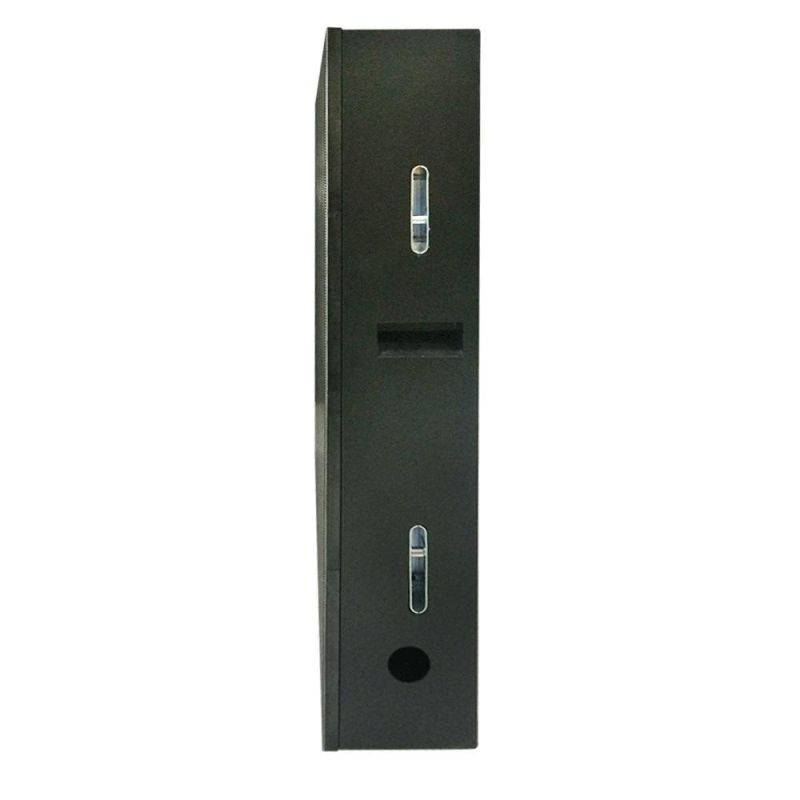

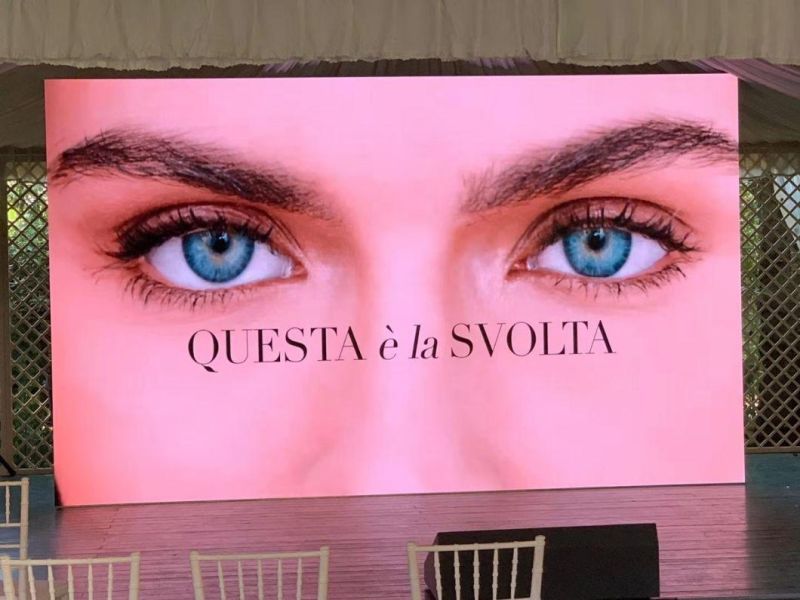

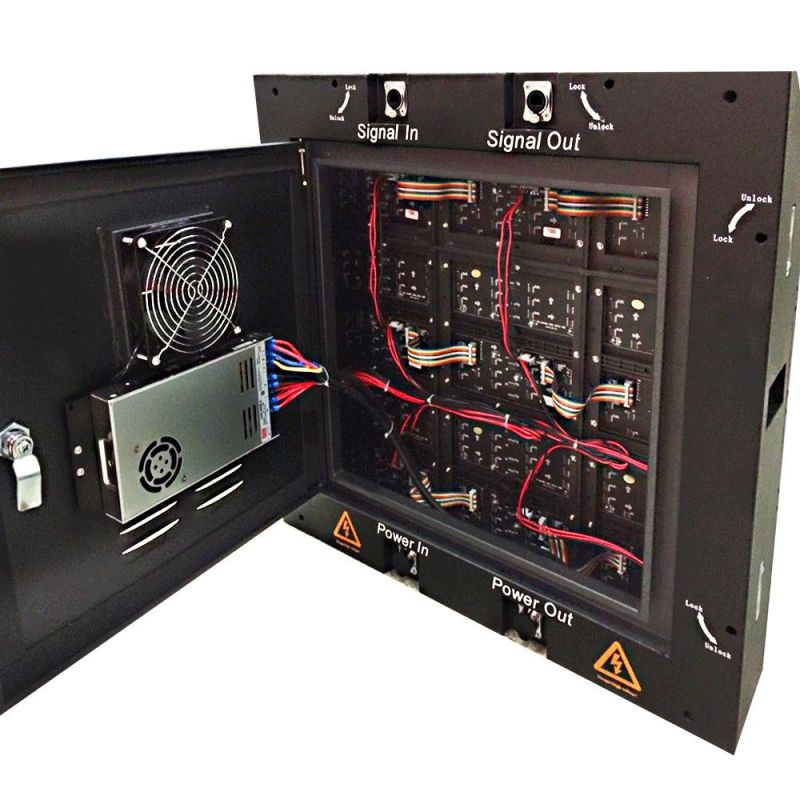

Cabinet Photos And Project Case:

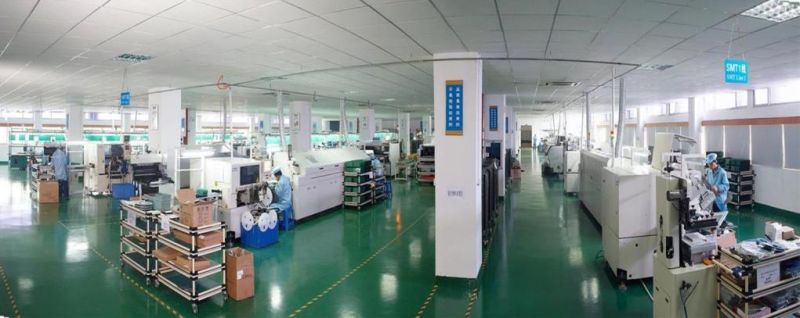

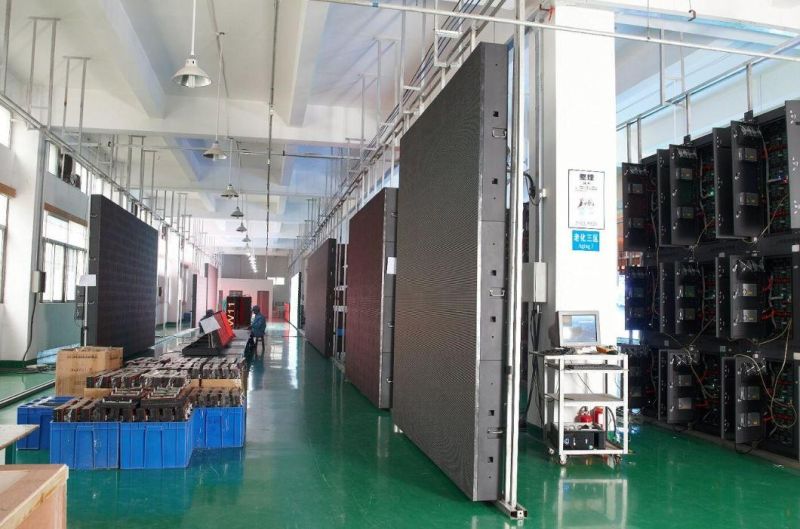

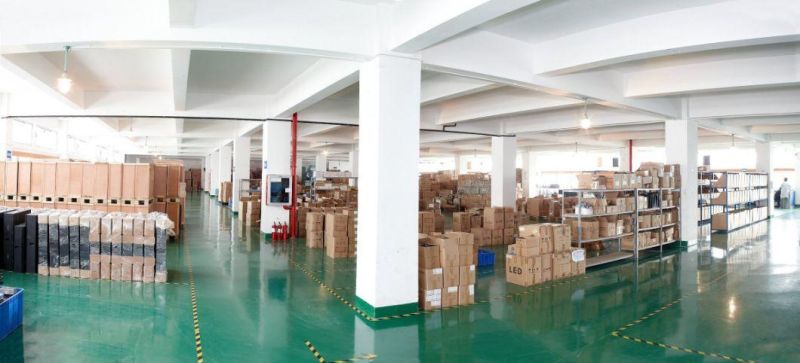

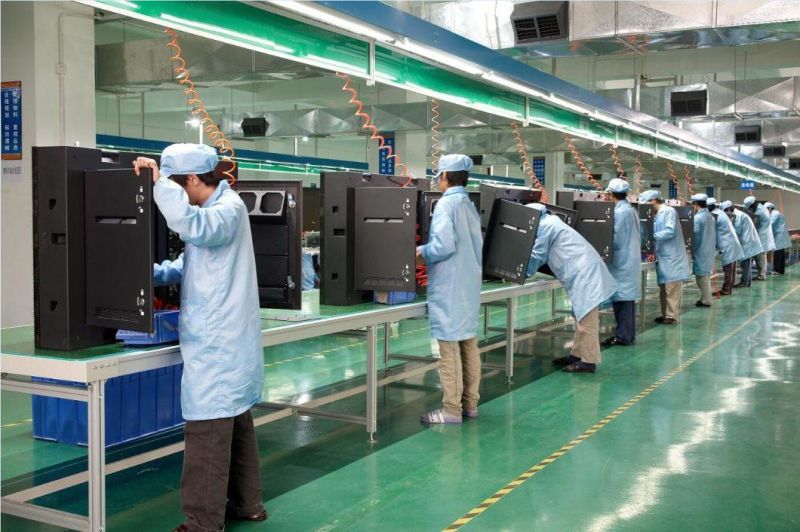

Factory Photos:

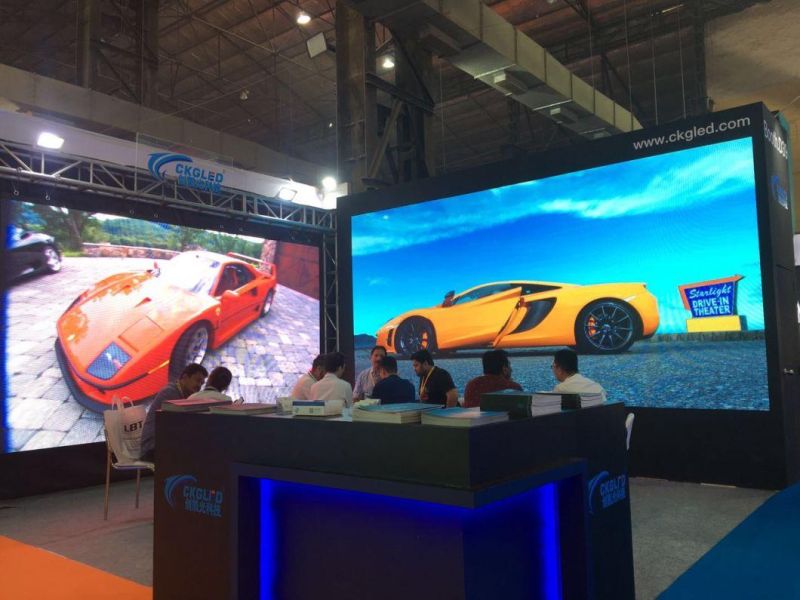

Foreign Product Exhibition:



Our service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.



Trade Terms

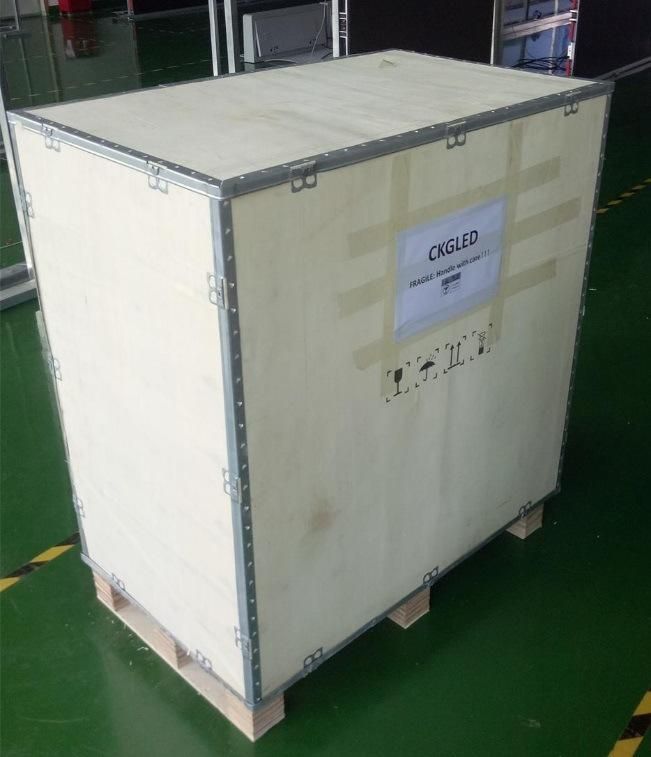

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
