• Model NO.：SY-P10-4S
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, FCC
• Warranty：Two Years Warranty
• LED Lamp：Taiwan Epistar
• Power Supply：Taiwan Meanwell or G-Energy
• Driving IC：Taiwan Mbi
• Control System：Linsn or Novastar
• Panel Size：960mm*960mm
• Transport Package：Wooden Box or Flight Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, Guangdong, China
• HS Code：8528591090
• Production Capacity：10000PCS Per Month

Hot-selling 10MM Outdoor Fixed LED Video Wall with high quality and competitive priceS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LED3535SMD600-800mcd620-625nm140º/120º3Green LED3535SMD1800-2000mcd520-525nm140º/120º4Blue LED3535SMD400-600mcd470-475nm140º/120ºModule Specification1Pixel Pitch10mm2Pixel Configuration1R1G1B3Module Resolution32 x 16 pixels4Module Pixles512 pixels5Module Size320mm X 160mmCabinet Specification1Cabinet Size(W X H X D)960mm x 960mm x 142mm2Cabinet Resolution(dot)96 x 96 pixels3Module Quanity (pcs)18pcs4Cabinet Pixels9216 pixels5Pixel Density10000 pixels/m26Cabinet TypeStandard outdoor cabinet for fix application7Cabinet Weight41kg per cabinetWhole Screen Specification1Screen Brightness≥6000cd/m22Driving Method1/4 scan3Best Viewing Distance10m - 150m4Max. Power Consumption≤750W/m25Average Power Consumption≤300W/m26Gray Level8bits input, 4096 levels(212)7Display Color16M8Frame Frequency≥60Hz9Refresh Frequency≥1000Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleIP6517Screen Plainness<±1mm18Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz19Working TemperatureTemperature: 0 Celsius~+40 Celsius20Storage TemperatureTemperature: -30 Celsius~+50 Celsius21HumidityHumidity:10%~90% RH22Control ModeSynchronous display with control PC by DVI23Control SystemLinsn, Novastar or as you required.24Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.25InterfaceStandard Ethernet26Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m27CertificateCE, ROHS, FCC
Application:
Widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.

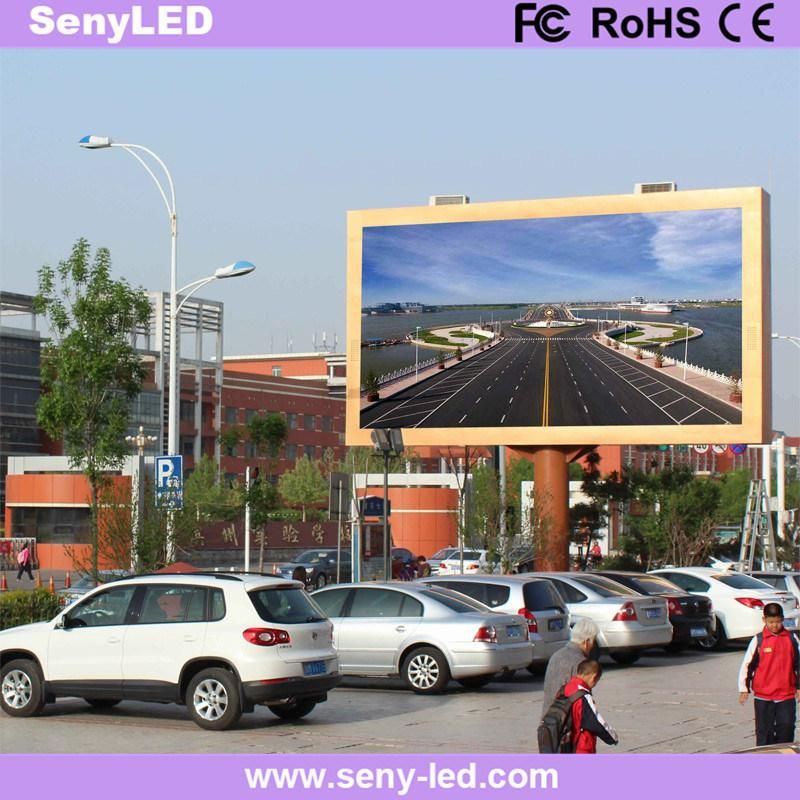

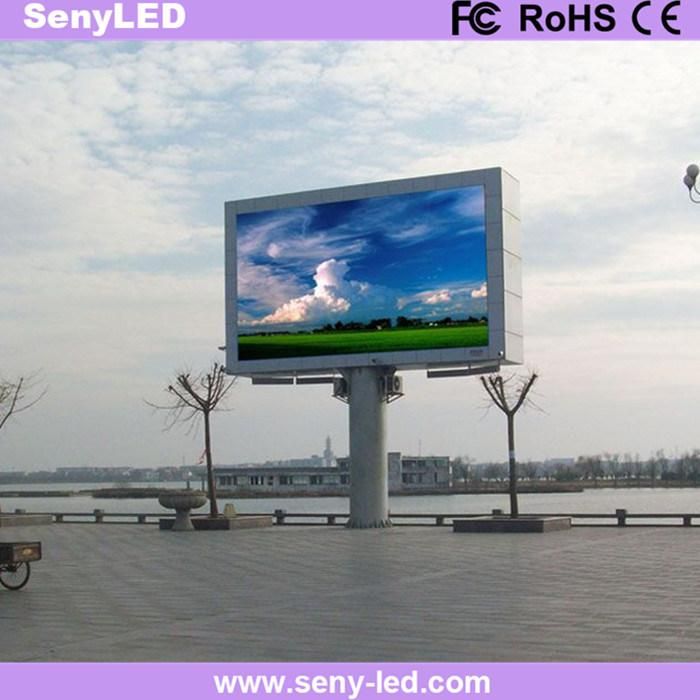

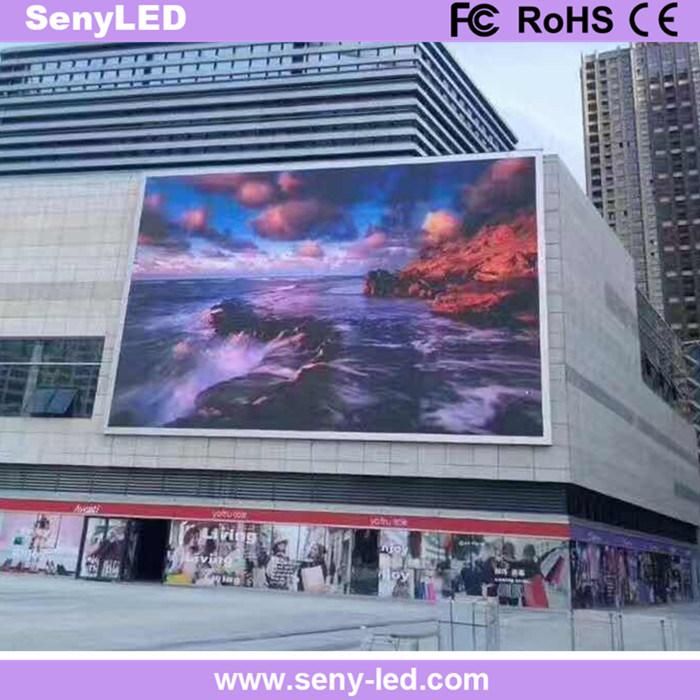

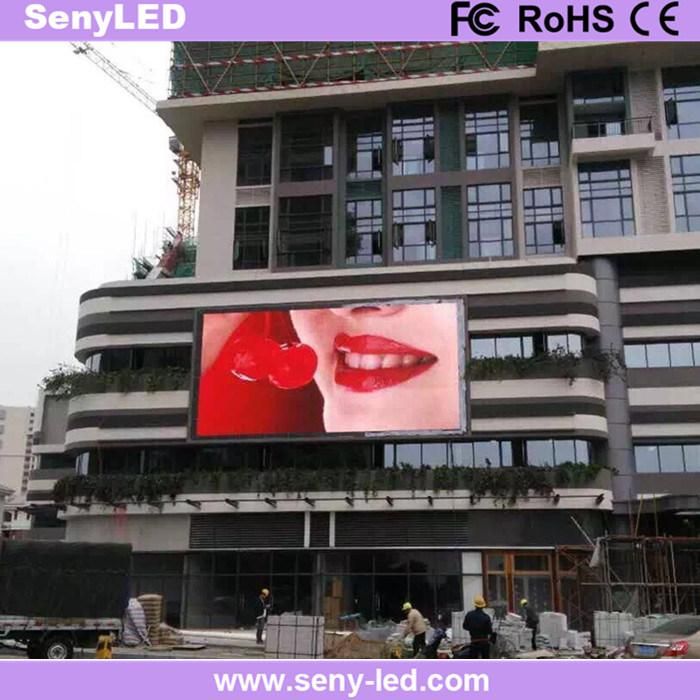

Project cases:
