• Model NO.：SY-P5-8S
• Pixel Density：40000 Dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display

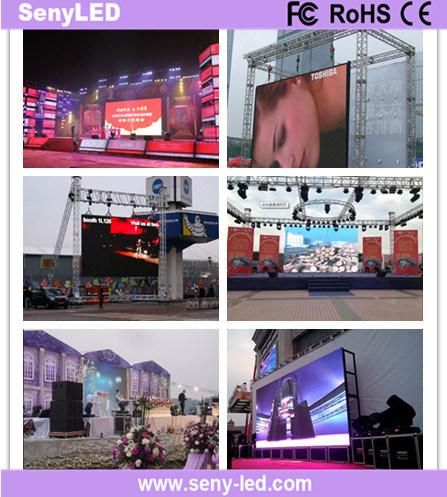

• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL, FCC
• Warranty：Two Years Warranty After Shipping
• Transport Package：Wooden Box or Fly Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, Guangdong, China.
• HS Code：8528591090
• Production Capacity：5000 Sq. M Per Month

P5 Outdoor HD LED Rental Screen in AfricaS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LEDSMD2727600-800mcd620-625nm140º/65º3Green LEDSMD27271800-2000mcd520-525nm140º/65º4Blue LEDSMD2727400-600mcd470-475nm140º/65ºModule Specification1Pixel Pitch5mm2Pixel ConfigurationSMD3in13Module Resolution64 x 32 pixels4Module Pixles2048 pixels5Module Size320mm X 160mmCabinet Specification1Cabinet Size(W X H X D)640mm x 640mm x 95mm2Cabinet Resolution(dot)128 x 128 pixels3Module Quanity (pcs)8pcs4Cabinet Pixels16384 pixels5Pixel Density40000 pixels/m26Cabinet MaterialsDie Casting Aluminum Cabinet For Rental PurposeWhole Screen Specification1Screen Brightness≥6500cd/m22Driving Method1/8 scan3Best Viewing Distance5m - 40m4Max. Power Consumption1500W/m25Average Power Consumption600W/m26Gray Level8bits input, 4096 levels(212)7Display Color16M8Frame Frequency≥60Hz9Refresh Frequency≥1200Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleIP6517Screen Plainness<±1mm18Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz19Environment Temperature & HumidityTemperature:-20 Celsius~+60 CelsiusHumidity:10%~90% RH20Control ModeSynchronous display with control PC by DVI21Control SystemDVI video card + full color control card + fiber system( optional)22Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.23InterfaceStandard Ethernet24Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m25Power Supply BrandG-energy, MeanWell, Chuanglian or as you required26CertificateCE, ROHS, FCCProject cases:

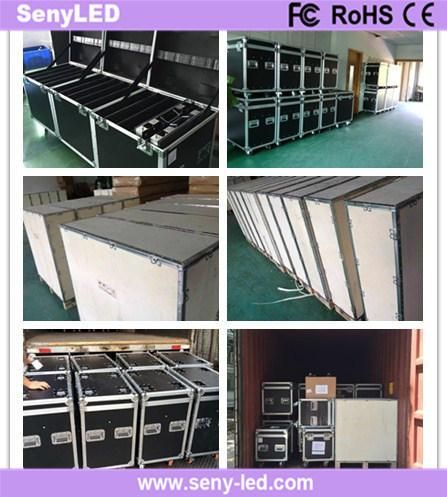

Packaging and delivery:

After sales service:

1.Our products have two years warranty service ,lifetime free maintenance and upgrade.

2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3.We offered training to our customer who includes operating and maintenance of our products.

4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
