HD Full Color Indoor P2.976mm LED Ground Wall (500 * 500 mm, 500 X 1000 mm)
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：2.976mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：112896dots,Sq.M
- Scanning Mode：1,28 Scan
Base Info
- Model NO.：P2.976
- System Operating Platform：Win XP,Win 2000,98,Nt
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, CCC, FCC
- LED Style：SMD2121 Black
- Module Size：250X250mm
- Cabinet Size：500X500mm
- Cabinet Material：Die-Casting Aluminum
- Transport Package：Wooden Case
- Specification：CE, FCC, Rohs
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：2000sq. M,Month
Description
P2.976 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch 2.976mm Pixel Configuration 1R1G1B LED component SMD2121 black Size of module 250mm x 250mm Resolution of module 84x84dots Size of cabinet 500x500mm or 500mm x 1000mm x 75mm Resolution of cabinet 168x168/168x336 dots Material of Cabinet Die-casting Aluminum Weight of Cabinet 8.9 kgs/14.5 kgs Brightness >1200cd/sq.m Density 112896 dots/sq.m Best viewing angle 140° /140° Pixel Configuration 1R1G1B Best viewing distance 2-30M Maximum power consumption 800W/sq.m Average power consumption 400W/sq.m Driving method 1/28 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >3840Hz IP grade IP31 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

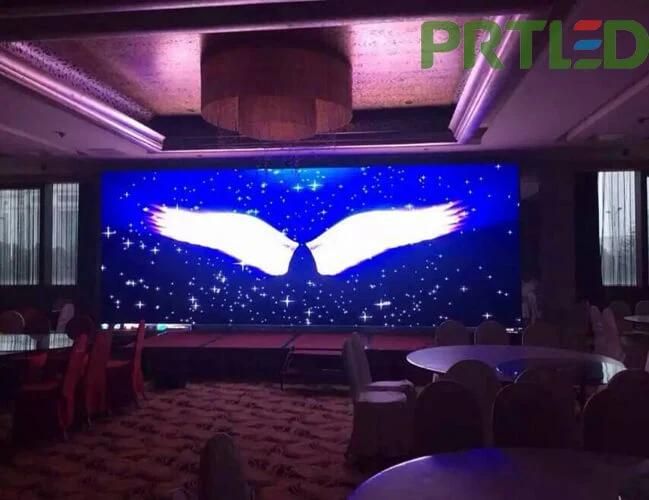

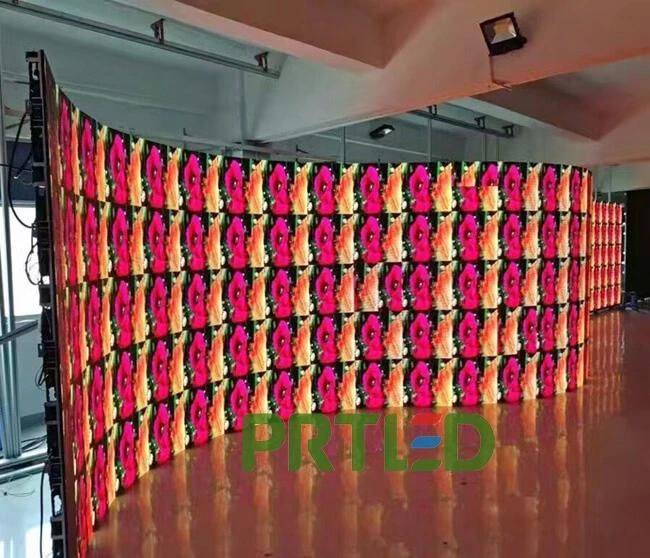

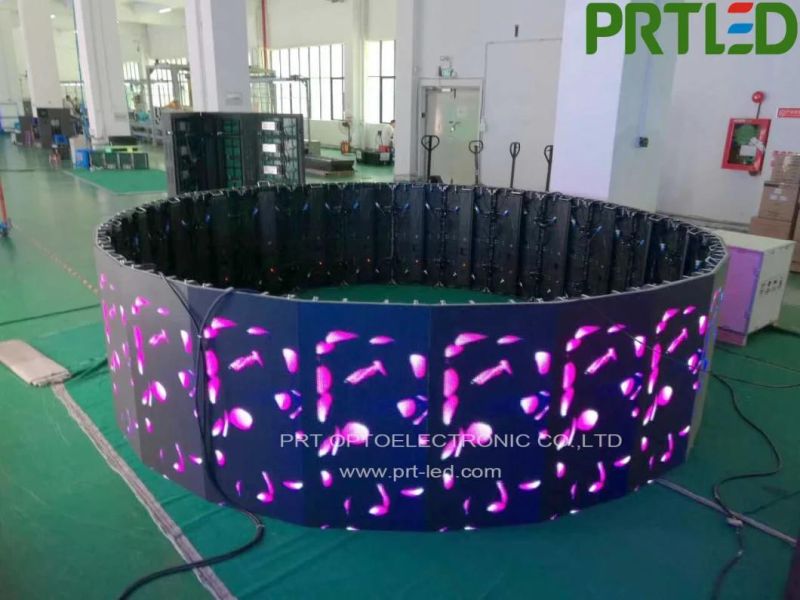

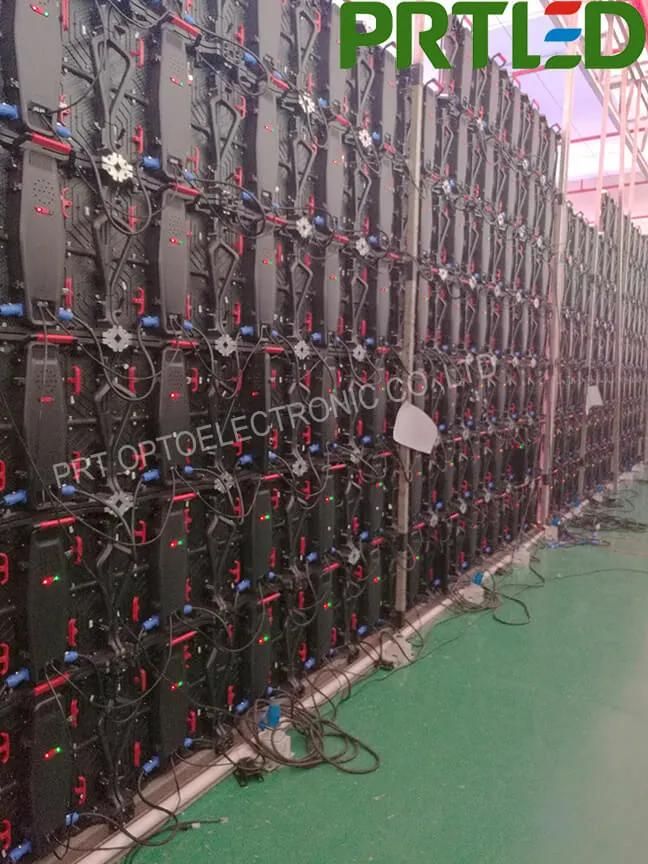

Pictures for reference:

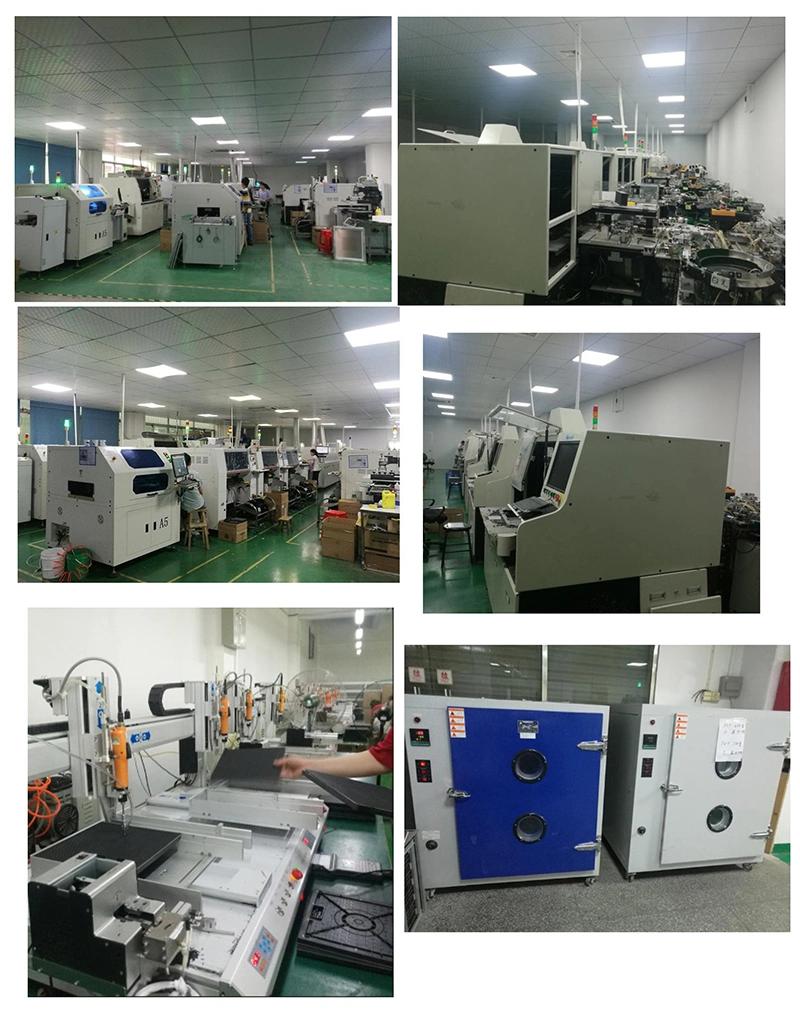

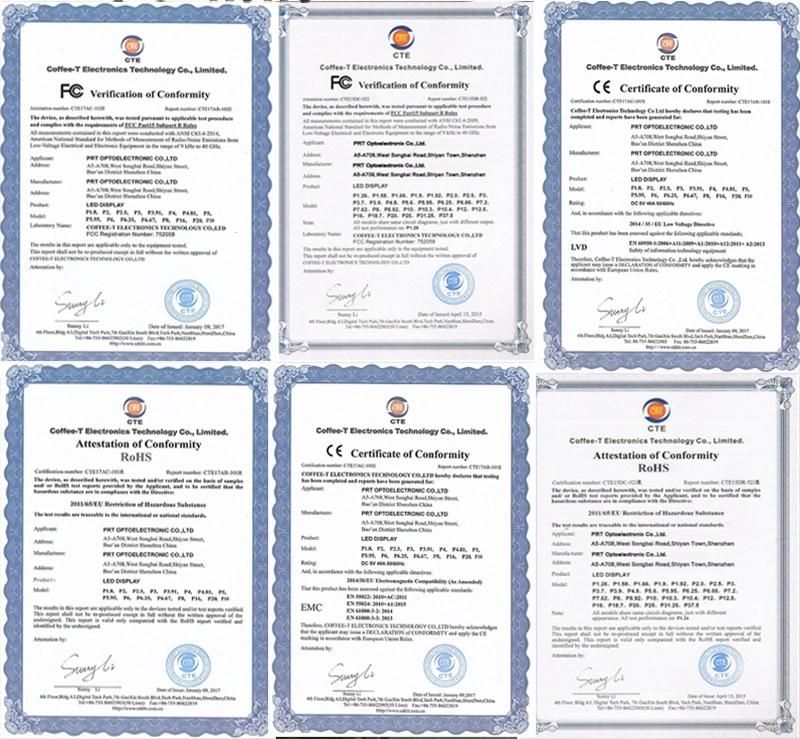

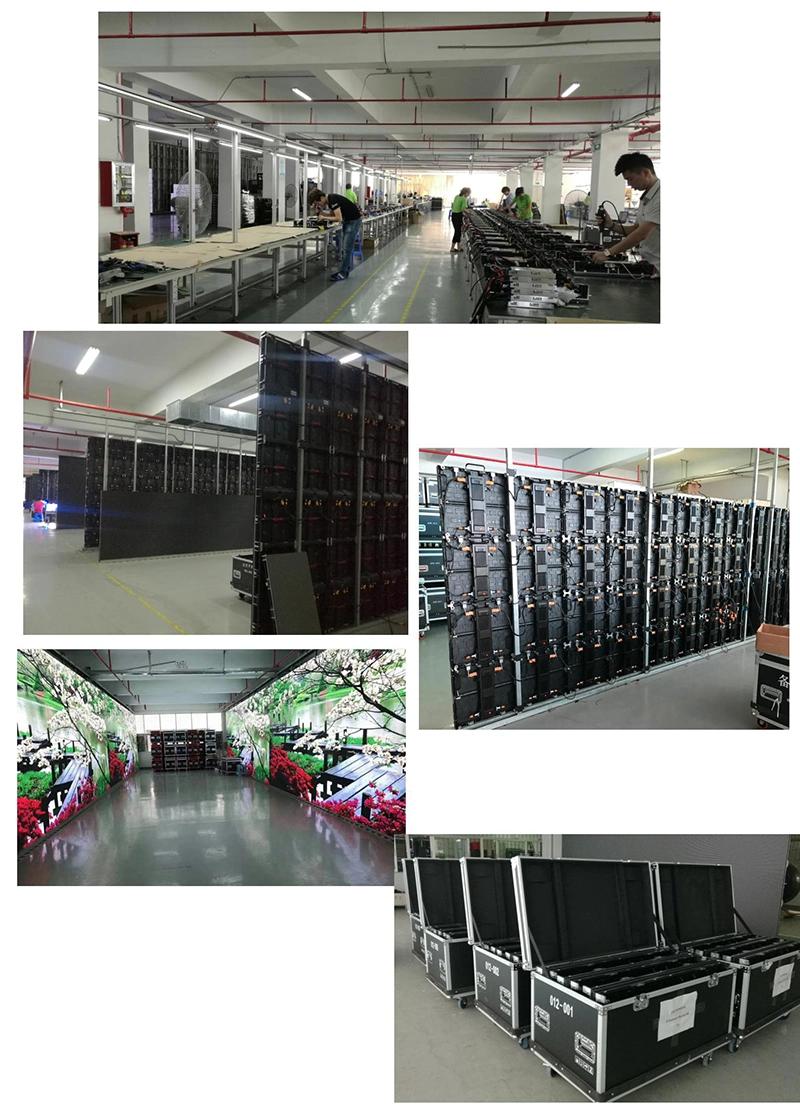

PRTLED products are made with high quality materials/parts,according to international stand CE,ROHS,FCC etc,also found a strict quality control system,to ensure no problem at each process to confirm the high quality before delivery.
