• Model NO.：GL6
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Colour：Bule,Grey,Orange
• Safe Door：1 Piece in The Side Wall, with Pressure Lock
• Panel Color：White
• Keep Warm Material：EPS, Rock Wool as Optional
• Manufacture：Guangli
• External Size：7.0*5.6*3.5m
• Internal Size：6.9*3.9*2.7m
• Door Width(M)：3.0m
• Door Height(M)：2.66m
• Air Flow(Cubic Meter/Hour)：30000
• Inside on-Load Air Speed(M/S)：0.3-0.5
• Power(Kw)：25
• Vehicle Suited：Saloon Car
• Transport Package：20 Gp Can Hold 1 PCS
• Specification：Internal Size 6.9 x 3.9 x 2.7(m)
• Trademark：GuangLi
• Origin：China
• HS Code：8419899090
• Production Capacity：2000

Model NO.GL5 ( CE standard)External Size7.0*5.6*3.5(m)Internal Size6.9*3.9*2.7(m)Wall panel colour Whitewall panel keep warm materialRock Wool, thickness:50mmWall panel colour steelThickness:0.426mm with metal edge cover
Door :Enter size3*2.66(m)Structure3 folded sheet metal process without framecolourorange, or blue or greyFront horizontal panel and front vertical panelsWhiteMaterial Rock woolSafe doororange; 2000*800(mm), 1 piece in the side wall, with pressure lock
with one pc of ramp for safe door and with LED exit light

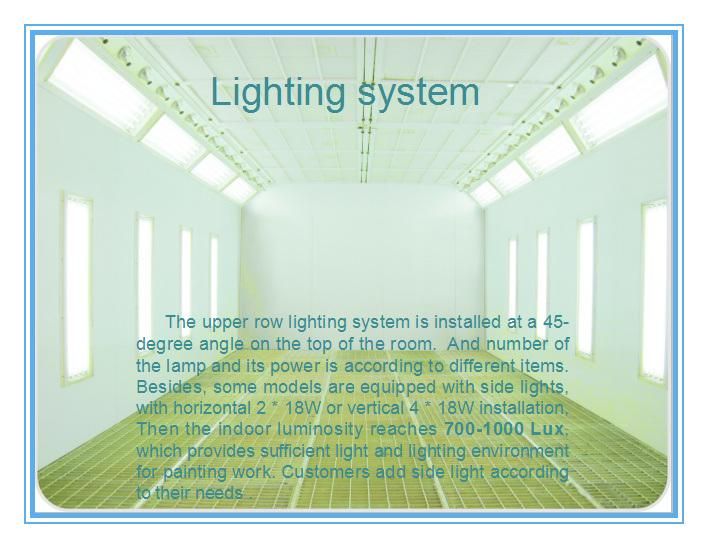

Light system:Top light(2) sides*(5) sets* (4) pcs, LED 18W/piece
-With tempering glass cover
-With aviation connetor
-with full frame for light box for ensruring the sealSide light(2)sides*(4)sets*(4)pcs,LED 18 W/ piece; Vertical
-with tempering glass cover
-with aviation connector
-with full frame for light box for ensuring the seal
Generator:ColorWhite, Iron frame with Aluminum angelBurnerItaly Riello diesel burner RG5SIntake Fan1 set of 11 kw with M style pre-filter With explosion-proof impellerExhaust Fan1 set of 11 kw with explosion-proof impellerFan capacity(30000)M³/hDuct&Chimney ductWith 4m exhaust duct and 5m intake duct.

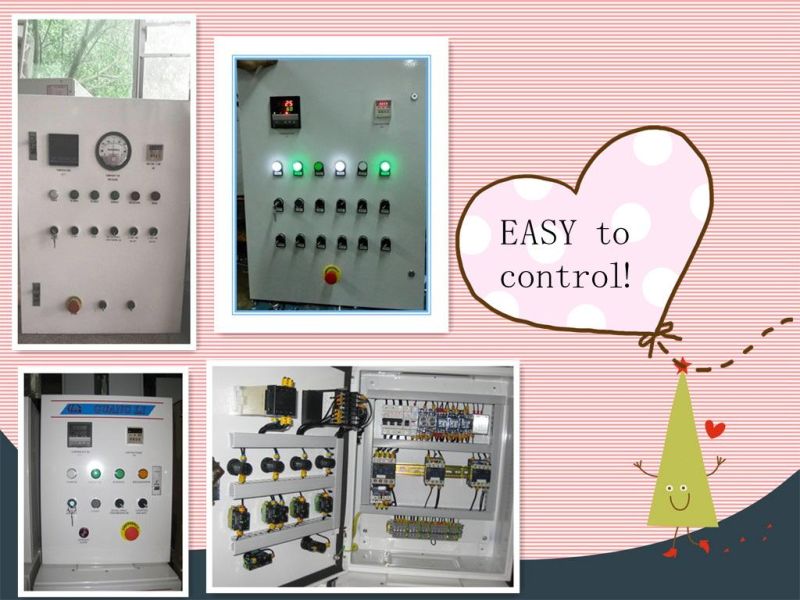

5m straight chimney and 2 small bends. with 2 pcs manual VCD adjustable damperMotor Voltage380V/50HZ/3PH(other voltage contact me)Control boxImport components;Motor soft start; With 1 pcs pressure meter
All components should be CE standard, and the control box voltage should be as 24 V.
Basement:Floor5 rows of twisted zincified bearing gridsFloor filter5 rows/setRamps2 pcs of grid style ramps
Filter Frame:Top filter 6 pcs/setStructureHinge installed iron welded, powdered
Have pre-heat system and fireproofing pretection.( one set pre-heat energy-saving device, with fireproofing device

Total Power: 25 KW


Technical Specifications:
External Size(m)                           7.0*5.6*3.5
Internal Size(m)                            6.9*3.9*2.7
Door width(m)                               3.0
Door Height(m)                             2.66
Air flow(m³/h )                               30000
Inside on-load air speed  (m/s)    0.3-0.5
Power                                                   25
Vehicle suited                                 saloon car

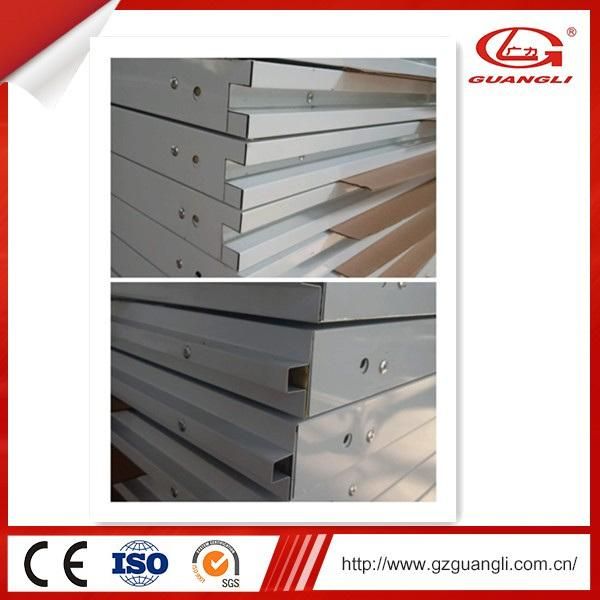

Optional wall panal structure
