• Model NO.：GL 4
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Colour：Bule,Grey,Orange
• Safe Door：1 Piece in The Side Wall, with Pressure Lock
• Panel Color：White
• Keep Warm Material：EPS, Rock Wool as Optional
• Inside on-Load Air Speed(M/S)：0.3-0.5
• Manufacture：Guangli
• Transport Package：20 Gp Can Hold 1 PCS
• Specification：Internal Size 6.9 x 3.9 x 2.7(m)
• Trademark：GuangLi
• Origin：China
• HS Code：8419899090
• Production Capacity：2000

Model NO.GL4 ( CE standard)External Size7.0*5.3*3.5(m)Internal Size6.9*3.9*2.7(m)Wall panel colour Whitewall panel keep warm materialRock Wool, thickness:50mmWall panel colour steelThickness:0.376mm with metal edge cover
Door :Enter size3*2.66(m)Structure3 folded sheet metal process without framecolourorange, or blue or greyFront horizontal panel and front vertical panelsWhiteMaterial Rock woolSafe doorWhite; 2000*800(mm), 1 piece in the side wall, with pressure lock
with one pc of ramp for safe door and with LED exit light

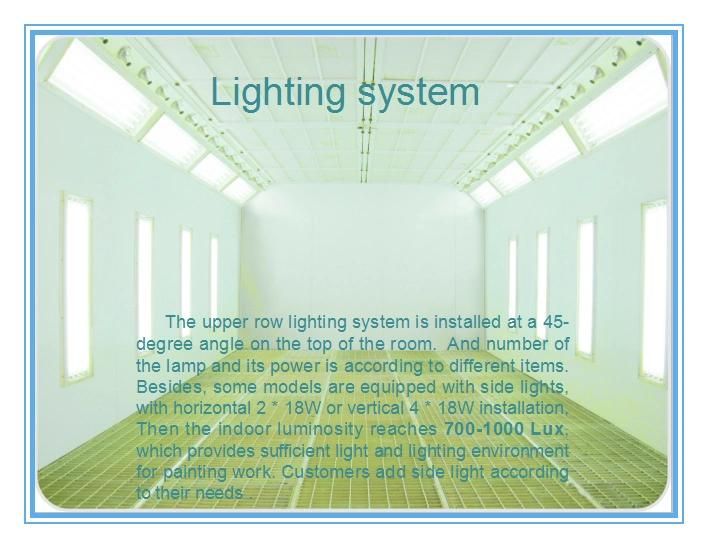

Light system:Top light(2) sides*(5) sets* (4) pcs, LED 18W/piece
-With tempering glass cover
-With aviation connetor
-with full frame for light box for ensruring the sealSide light(2)sides*(4)sets*(4)pcs,LED 18 W/ piece; Vertical
-with tempering glass cover
-with aviation connector
-with full frame for light box for ensuring the seal
Generator:ColorWhiteBurnerItaly Riello diesel burner G20Intake Fan1 set of 7.5 kw with M style pre-filter With explosion-proof impellerExhaust Fan1 set of 7.5 kw with explosion-proof impellerFan capacity(24000)M³/hDuct&Chimney ductWith 4m exhaust duct and without intake duct

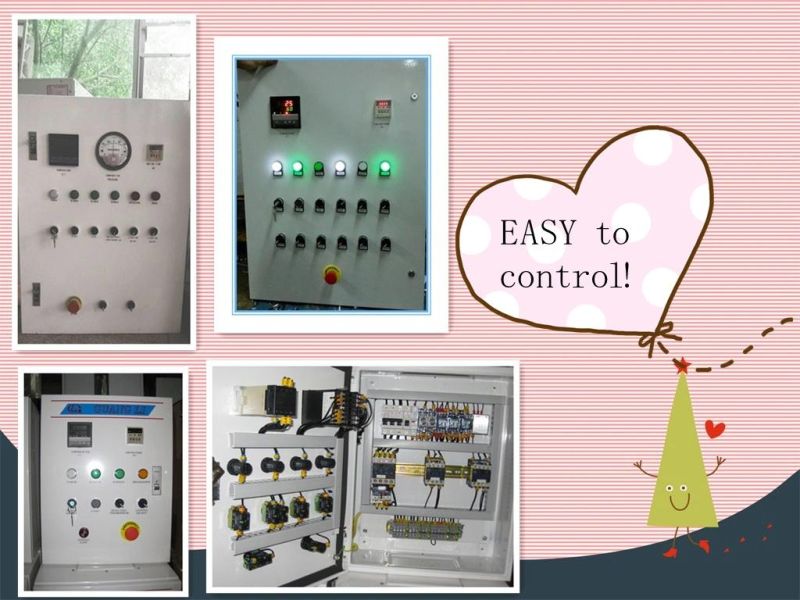

5m straight chimney and 2 small bends. with 1 pcs manual VCD adjustable damperMotor Voltage380V/50HZ/3PH(other voltage contact me)Control boxImport components;Motor Y/three start; With 1 pcs pressure meter
All components should be CE standard, and the control box voltage should be as 24 V.
Basement:Floor5 rows of twisted zincified bearing gridsFloor filter5 rows/setRamps2 pcs of grid style ramps
Filter Frame:Top filter 6 pcs/setStructureHinge installed iron welded, powdered
Total Power: 18 KW
