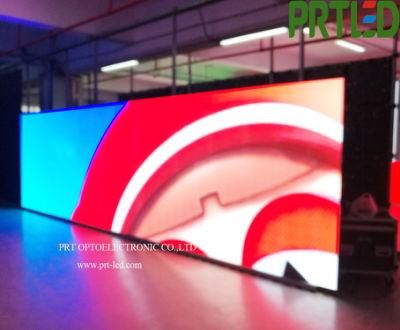

High Resolution Full Color Outdoor LED Display HD P5, P6

Xuzhou Whuchan Co., Ltd
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：6mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：350W , m²

Base Info

  • Model NO.：P6
  • Pixel Density：27777dots,Sq.M
  • Scanning Mode：1,8 Scan
  • Display Type：LED Video Display

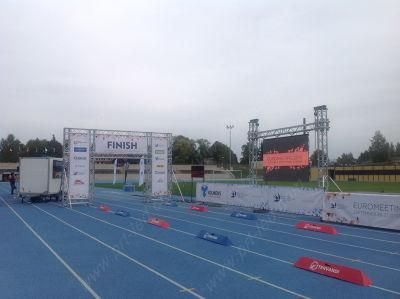

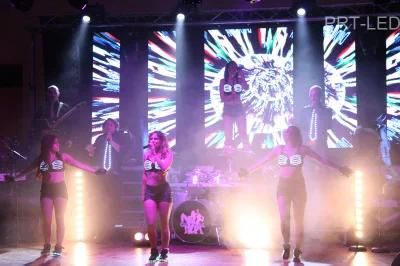

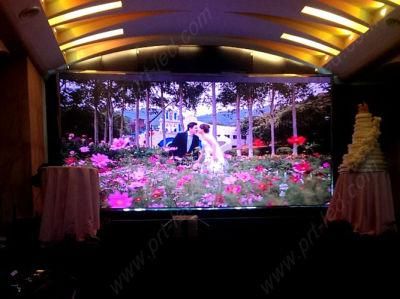

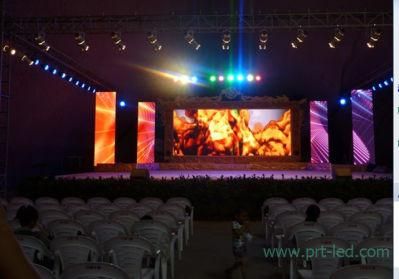

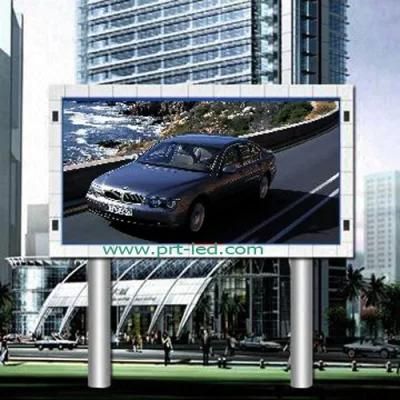

  • Application：Advertising, Stage Performance, Rental
  • Certification：CE, RoHS, CCC
  • LED Encapsulation：SMD3535
  • Cabinet Material：Iron,Aluminum
  • Module Size：192 X192mm
  • Cabinet Size：768X768mm
  • Transport Package：Wooden Case or as Required
  • Specification：CE, FCC. ROHS, 3C
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：3000sq. M,Month

Description

P6 SMD3535 Outdoor full Color LED Screen SpecificationPixel pitch6mmPixel Configuration1R1G1BLED componentSMD3535Size of module192mm x 192mmResolution of module 32 x32Size of cabinet768mm x 768mm x 150mm/960mm x 960mm x 150mmResolution of cabinet160x160Material of CabinetIron/AluminumWeight of Cabinet40KGSBrightness>6000cd/sq.mDensity27777dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance5-60MMaximum power consumption1000W/sq.mAverage power consumption560W/sq.mDriving method1/8 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1920HzIP gradeIP65Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
