S-10006-20, T-10079-00, U-10060-00 P400 Spare Parts
Jinhua Max Beauty Packaging Co., Ltd.- Condition：New
- Color：Black
- Certification：DIN, ISO
- Type：Universal Joint
- Application Brand：Scania
- Material：Alloy
Base Info
- Model NO.：S-10006-20, T-10079-00, U-10060-00 P400
- Transport Package：Export
- Specification：EXPORT
- Trademark：HYT
- Origin：China
- HS Code：87089999
- Production Capacity：100000PCS
Description
Basic Info.
Model NO. S-10006-20, T-10079-00, U-10060-00 P400 Transport Package Export Specification EXPORT Trademark HYT Origin China HS Code 87089999 Production Capacity 100000PCSProduct Description

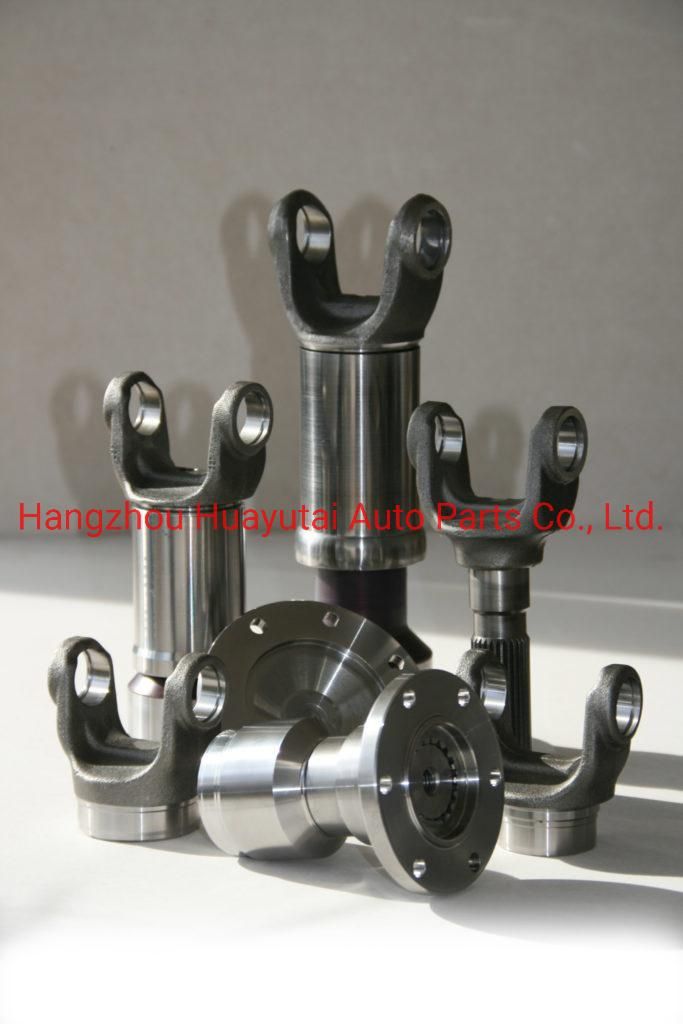

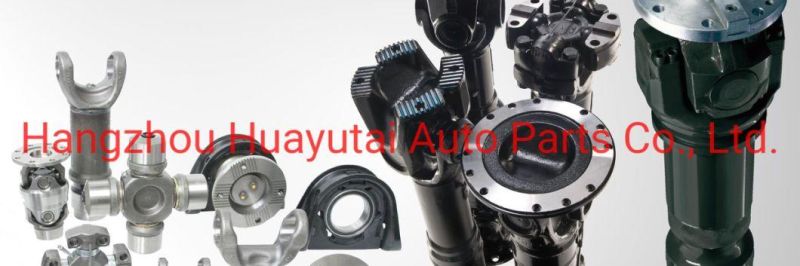

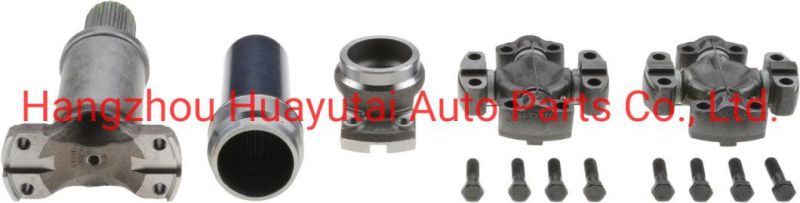

Procue the drive shafts, cardan shafts, and components, FLANGE YOKE, TUBE YOKE, SCANIA PARTS.
| Standard Part # | Series | ( E )Distance Across Lugs | ( D )Bearing Diameter | ( M )Spline Diameter & Number | ( J )Centerline to End of Spline | ( Q )Length of Thru Hole |
| 9-3-481KX | 1910 | - | 2.56" | 3.163"-36 Inv. | 8.94" | 6.30" |
| 9-3-481-1KX | 1910 | - | 2.56" | 3.163"-36 Inv. | 11.94" | 9.30" |
| 9-3-351-1KX | 2150 | - | 4.750" | 5.835"-34 Inv. | 20.938" | 17.87" |
| 9-3-331-4KX | 2050 | - | 3.812" | 5.835"-34 Inv. | 17.56" | 14.50" |
| 9-3-331-2KX | 2050 | - | 3.812" | 5.835"-34 Inv. | 11.938" | 8.50" |
| 9-3-331-1KX | 2050 | - | 3.812" | 5.835"-34 Inv. | 15.438" | 12.38" |
| 9-3-261KX | 1950 | - | 3.062" | 4.167"-24 Inv. | 9.688" | 6.126" |
| 9-3-241KX | 1950 | - | 3.062" | 4.167"-24 Inv. | 10.875" | 7.313" |
| 9-3-221KX | 1950 | - | 3.062" | 4.167"-24 Inv. | 13.875" | 10.313" |
| 8-3-431KX | 1880 | 8.09" | 2.18" | 4.17"-24 Inv. | 5.03" | 3.62" |
| 8-3-411KX | 1880 | 8.09" | 2.18" | 3"-16 | 11.65" | 9.62" |
| 8-3-391KX | 1880 | 8.09" | 2.18" | 3"-16 | 10.03" | 8.00" |
| 6.5-3-1451KX | 1810 | 7.55" | 1.94" | 3.25"-18 Inv. | 5.38" | 3.88" |
| 6.5-3-1431KX | 1810 | 7.55" | 1.94" | 3"-16 | 8.94" | 7.38" |
| 6.5-3-1371KX | 1810 | 7.55" | 1.94" | 3"-16 | 11.88" | 9.50" |
| 6.5-3-1351KX | 1810 | 7.55" | 1.94" | 3"-16 | 10.25" | 7.88" |
| 6.3-3-41KX | 1760 | 7" | 1.94" | 2.50"-16 | 9.25" | 6.78" |
| 6.3-3-21KX | 1760 | 7" | 1.94" | 2.50"-16 | 11.16" | 8.69" |
| 6-3-2741KX | 1710 | 6.09" | 1.94" | 2.50"-16 | 7.47" | 7.625" |
| 6-3-2671KX | 1710 | 6.09" | 1.94" | 2.50"-16 | 9.59" | 7.875" |
| 6-3-2651KX | 1710 | 6.09" | 1.94" | 2.50"-16 | 11.69" | 9.25" |
| 6-3-2631KX | 1710 | 6.09" | 1.94" | 2.50"-16 | 8.84" | 7.50" |
| 6-3-1661KX | 1710 | 6.09" | 1.94" | 3.25"-18 Inv. | 4.12" | 2.74" |
| 6-3-1481KX | 1710 | 6.09" | 1.94" | 3.25"-18 Inv. | 4.88" | 3.50" |
| 5-3-288KX | 1610 | 5.31" | 1.88" | 2"-16 | 9.31" | 7.38" |
| 5-3-2261KX | 1610 | 5.31" | 1.88" | 2"-16 | 10.81" | 8.38" |
| 5-3-2141KX | 1610 | 5.31" | 1.88" | 2"-16 | 11.94" | 9.00" |
| 5-3-198KX | 1610 | 5.31" | 1.88" | 2.673"-18 Inv. | 4.25" | 3" |
| 5-3-188KX | 1610 | 5.31" | 1.88" | 2.673"-18 Inv. | 4.00" | 2.75" |
| 5-3-168KX | 1610 | 5.31" | 1.88" | 2.673"-18 Inv. | 3.50" | 2.25" |
| 5-3-108KX | 1610 | 5.31" | 1.88" | 2"-16 | 7.81" | 6.38" |
| 4-3-1751KX | 1550 | 5.25" | 1.38" | 1.75"-16 | 5.38" | 4.00" |
| 4-3-1431KX | 1550 | 5.25" | 1.38" | 1.75"-16 | 10.06" | 8.00" |
| 4-3-1261KX | 1550 | 5.25" | 1.38" | 2.50"-16 | 3.50" | 2.56" |
| 4-3-1241KX | 1550 | 5.25" | 1.38" | 1.75"-16 | 6.88" | 5.50" |
| 3-3-508KX | 1410 | 4.44" | 1.19" | 1.50"-16 | 7.81" | 6.47" |
| 3-3-468KX | 1410 | 4.44" | 1.19" | 1.50"-16 | 3.91" | 2.75" |
| 3-3-448KX | 1350 | 3.88" | 1.19" | 1.50"-16 | 7.31" | 6.12" |
| 3-3-388KX | 1350 | 3.88" | 1.19" | 1.50"-16 | 3.94" | 2.75" |
| 3-3-2381KX | 1410 | 4.44" | 1.19" | 1.56"-16 | 11.50" | 9.50" |
| 3-3-1641KX | 1480 | 4.44" | 1.38" | 1.56"-16 | 9.50" | 7.50" |
| 3-3-1621KX | 1480 | 4.44" | 1.38" | 2.25"-10 | 3.72" | 2.59" |
| 3-3-1601KX | 1480 | 4.44" | 1.38" | 1.56"-16 | 6.81" | 5.50" |
| 3-3-1511KX | 1410 | 4.44" | 1.19" | 1.75"-16 | 3.25" | 2.44" |
| 3-3-118KX | 1410 | 4.44" | 1.19" | 1.50"-16 | 6.50" | 5.34" |
| 2-3-5221KX | 1280 | 3.47" | 1.06" | 1.38"-16 | 6.88" | 5.38" |
| 2-3-5221KX | 1310 | 3.47" | 1.06" | 1.38"-16 | 6.88" | 5.38" |
| 2-3-258KX | 1280 | 3.47" | 1.06" | 1.25"-16 | 4.12" | 3.12" |
| 2-3-258KX | 1310 | 3.47" | 1.06" | 1.25"-16 | 4.12" | 3.12" |
