S-10019-20, U-10062-00, U-10064-00, S-10018-20 Spare Parts
Jinhua Max Beauty Packaging Co., Ltd.- Condition：New
- Color：Black
- Certification：DIN, ISO
- Type：Universal Joint
- Application Brand：Scania
- Material：Alloy
Base Info
- Model NO.：S-10019-20, U-10062-00, U-10064-00, S-10018-20
- Transport Package：Export
- Specification：EXPORT
- Trademark：HYT
- Origin：China
- HS Code：87089999
- Production Capacity：100000PCS
Description
Basic Info.
Model NO. S-10019-20, U-10062-00, U-10064-00, S-10018-20 Transport Package Export Specification EXPORT Trademark HYT Origin China HS Code 87089999 Production Capacity 100000PCSProduct Description

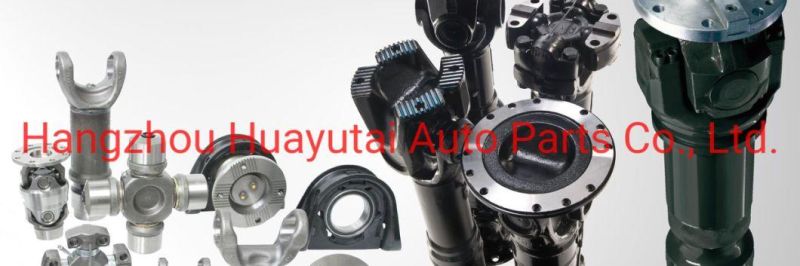

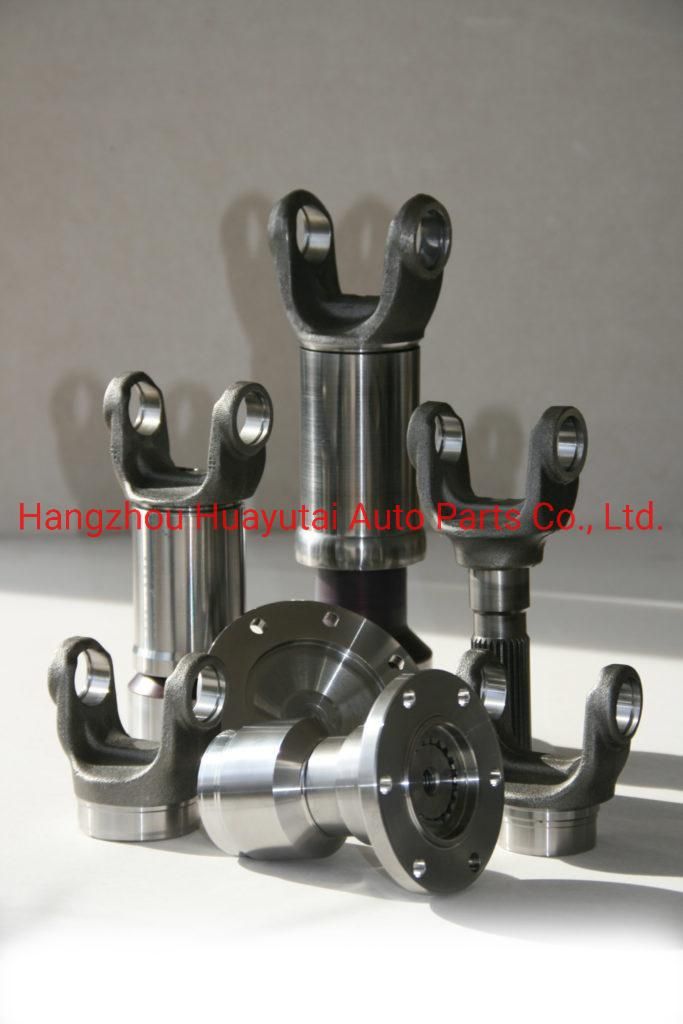

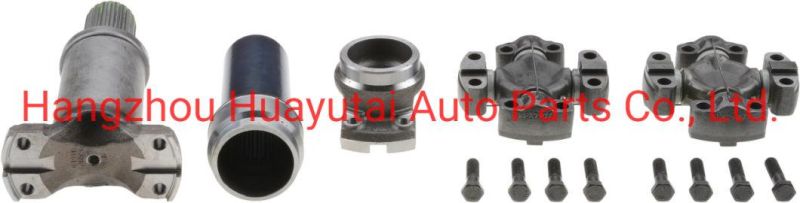

Procue the drive shafts, cardan shafts, and components, FLANGE YOKE, TUBE YOKE, SCANIA PARTS.
| Standard Part # | Series | ( E )Distance Across Lugs | ( D )Bearing Diameter | ( M )Spline Diameter & Number | ( J )Centerline to End of Spline | ( Q )Length of Thru Hole |
| 9-3-481KX | 1910 | - | 2.56" | 3.163"-36 Inv. | 8.94" | 6.30" |
| 9-3-481-1KX | 1910 | - | 2.56" | 3.163"-36 Inv. | 11.94" | 9.30" |
| 9-3-351-1KX | 2150 | - | 4.750" | 5.835"-34 Inv. | 20.938" | 17.87" |
| 9-3-331-4KX | 2050 | - | 3.812" | 5.835"-34 Inv. | 17.56" | 14.50" |
| 9-3-331-2KX | 2050 | - | 3.812" | 5.835"-34 Inv. | 11.938" | 8.50" |
| 9-3-331-1KX | 2050 | - | 3.812" | 5.835"-34 Inv. | 15.438" | 12.38" |
| 9-3-261KX | 1950 | - | 3.062" | 4.167"-24 Inv. | 9.688" | 6.126" |
| 9-3-241KX | 1950 | - | 3.062" | 4.167"-24 Inv. | 10.875" | 7.313" |
| 9-3-221KX | 1950 | - | 3.062" | 4.167"-24 Inv. | 13.875" | 10.313" |
| 8-3-431KX | 1880 | 8.09" | 2.18" | 4.17"-24 Inv. | 5.03" | 3.62" |
| 8-3-411KX | 1880 | 8.09" | 2.18" | 3"-16 | 11.65" | 9.62" |
| 8-3-391KX | 1880 | 8.09" | 2.18" | 3"-16 | 10.03" | 8.00" |
| 6.5-3-1451KX | 1810 | 7.55" | 1.94" | 3.25"-18 Inv. | 5.38" | 3.88" |
| 6.5-3-1431KX | 1810 | 7.55" | 1.94" | 3"-16 | 8.94" | 7.38" |
| 6.5-3-1371KX | 1810 | 7.55" | 1.94" | 3"-16 | 11.88" | 9.50" |
| 6.5-3-1351KX | 1810 | 7.55" | 1.94" | 3"-16 | 10.25" | 7.88" |
| 6.3-3-41KX | 1760 | 7" | 1.94" | 2.50"-16 | 9.25" | 6.78" |
| 6.3-3-21KX | 1760 | 7" | 1.94" | 2.50"-16 | 11.16" | 8.69" |
| 6-3-2741KX | 1710 | 6.09" | 1.94" | 2.50"-16 | 7.47" | 7.625" |
| 6-3-2671KX | 1710 | 6.09" | 1.94" | 2.50"-16 | 9.59" | 7.875" |
| 6-3-2651KX | 1710 | 6.09" | 1.94" | 2.50"-16 | 11.69" | 9.25" |
| 6-3-2631KX | 1710 | 6.09" | 1.94" | 2.50"-16 | 8.84" | 7.50" |
| 6-3-1661KX | 1710 | 6.09" | 1.94" | 3.25"-18 Inv. | 4.12" | 2.74" |
| 6-3-1481KX | 1710 | 6.09" | 1.94" | 3.25"-18 Inv. | 4.88" | 3.50" |
| 5-3-288KX | 1610 | 5.31" | 1.88" | 2"-16 | 9.31" | 7.38" |
| 5-3-2261KX | 1610 | 5.31" | 1.88" | 2"-16 | 10.81" | 8.38" |
| 5-3-2141KX | 1610 | 5.31" | 1.88" | 2"-16 | 11.94" | 9.00" |
| 5-3-198KX | 1610 | 5.31" | 1.88" | 2.673"-18 Inv. | 4.25" | 3" |
| 5-3-188KX | 1610 | 5.31" | 1.88" | 2.673"-18 Inv. | 4.00" | 2.75" |
| 5-3-168KX | 1610 | 5.31" | 1.88" | 2.673"-18 Inv. | 3.50" | 2.25" |
| 5-3-108KX | 1610 | 5.31" | 1.88" | 2"-16 | 7.81" | 6.38" |
| 4-3-1751KX | 1550 | 5.25" | 1.38" | 1.75"-16 | 5.38" | 4.00" |
| 4-3-1431KX | 1550 | 5.25" | 1.38" | 1.75"-16 | 10.06" | 8.00" |
| 4-3-1261KX | 1550 | 5.25" | 1.38" | 2.50"-16 | 3.50" | 2.56" |
| 4-3-1241KX | 1550 | 5.25" | 1.38" | 1.75"-16 | 6.88" | 5.50" |
| 3-3-508KX | 1410 | 4.44" | 1.19" | 1.50"-16 | 7.81" | 6.47" |
| 3-3-468KX | 1410 | 4.44" | 1.19" | 1.50"-16 | 3.91" | 2.75" |
| 3-3-448KX | 1350 | 3.88" | 1.19" | 1.50"-16 | 7.31" | 6.12" |
| 3-3-388KX | 1350 | 3.88" | 1.19" | 1.50"-16 | 3.94" | 2.75" |
| 3-3-2381KX | 1410 | 4.44" | 1.19" | 1.56"-16 | 11.50" | 9.50" |
| 3-3-1641KX | 1480 | 4.44" | 1.38" | 1.56"-16 | 9.50" | 7.50" |
| 3-3-1621KX | 1480 | 4.44" | 1.38" | 2.25"-10 | 3.72" | 2.59" |
| 3-3-1601KX | 1480 | 4.44" | 1.38" | 1.56"-16 | 6.81" | 5.50" |
| 3-3-1511KX | 1410 | 4.44" | 1.19" | 1.75"-16 | 3.25" | 2.44" |
| 3-3-118KX | 1410 | 4.44" | 1.19" | 1.50"-16 | 6.50" | 5.34" |
| 2-3-5221KX | 1280 | 3.47" | 1.06" | 1.38"-16 | 6.88" | 5.38" |
| 2-3-5221KX | 1310 | 3.47" | 1.06" | 1.38"-16 | 6.88" | 5.38" |
| 2-3-258KX | 1280 | 3.47" | 1.06" | 1.25"-16 | 4.12" | 3.12" |
| 2-3-258KX | 1310 | 3.47" | 1.06" | 1.25"-16 | 4.12" | 3.12" |
