• Model NO.：SNSTY-230
• Illumination Time：8h
• Cell Type：Lithium Battery
• Charging Time (H)：7hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Item Name：All in One Integrated Lighting 30W LED Solar Stree
• Solar Panel Power：65 Watt 18V
• LED Lamp Power：30W 18V
• Lithium Battery Capacity：30ah 12V
• Working Method：Timer Control,APP Function
• Install Height：5-7 M
• Lighting Time：Controller Auto Adjust 3,5,7,10 Backup Days
• Weight/CTN Size：18kg,132*41*21cm
• Keyword 1：Solar LED Street Light
• Keyword 2：Solar Powered LED Lighting
• Transport Package：Strong Carton
• Specification：30W LED 60W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-230 Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 7hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Item Name All in One Integrated Lighting 30W LED Solar Stree Solar Panel Power 65 Watt 18V LED Lamp Power 30W 18V Lithium Battery Capacity 30ah 12V Working Method Timer Control/APP Function Install Height 5-7 M Lighting Time Controller Auto Adjust 3/5/7/10 Backup Days Weight/CTN Size 18kg/132*41*21cm Keyword 1 Solar LED Street Light Keyword 2 Solar Powered LED Lighting Transport Package Strong Carton Specification 30W LED 60W Solar Panel Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity China

Product Description

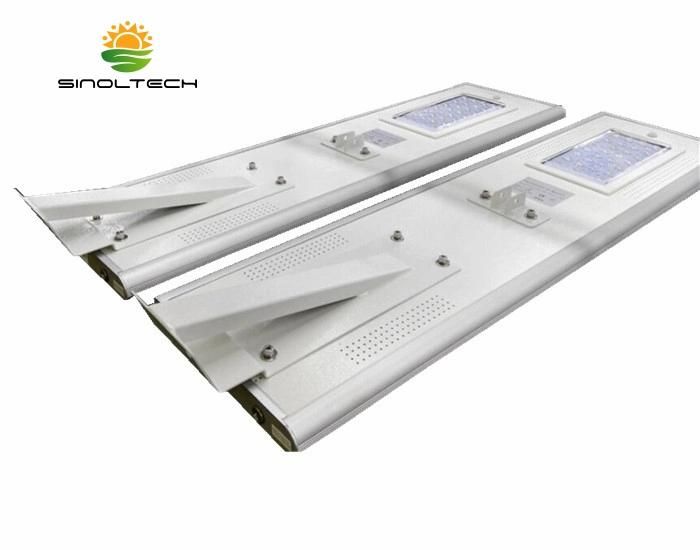

All in One Integrated Lighting 30W LED Solar Street Light (SNSTY-230)

----Main feature of SINOLTECH All in one LED solar street light:
1) Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
    Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2) Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3) Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years, excellent high temperature performance, long life time can ensure the service life of whole product.
4) Waterproof structure, safe and reliable.
5) Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.
6) With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.

----Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.

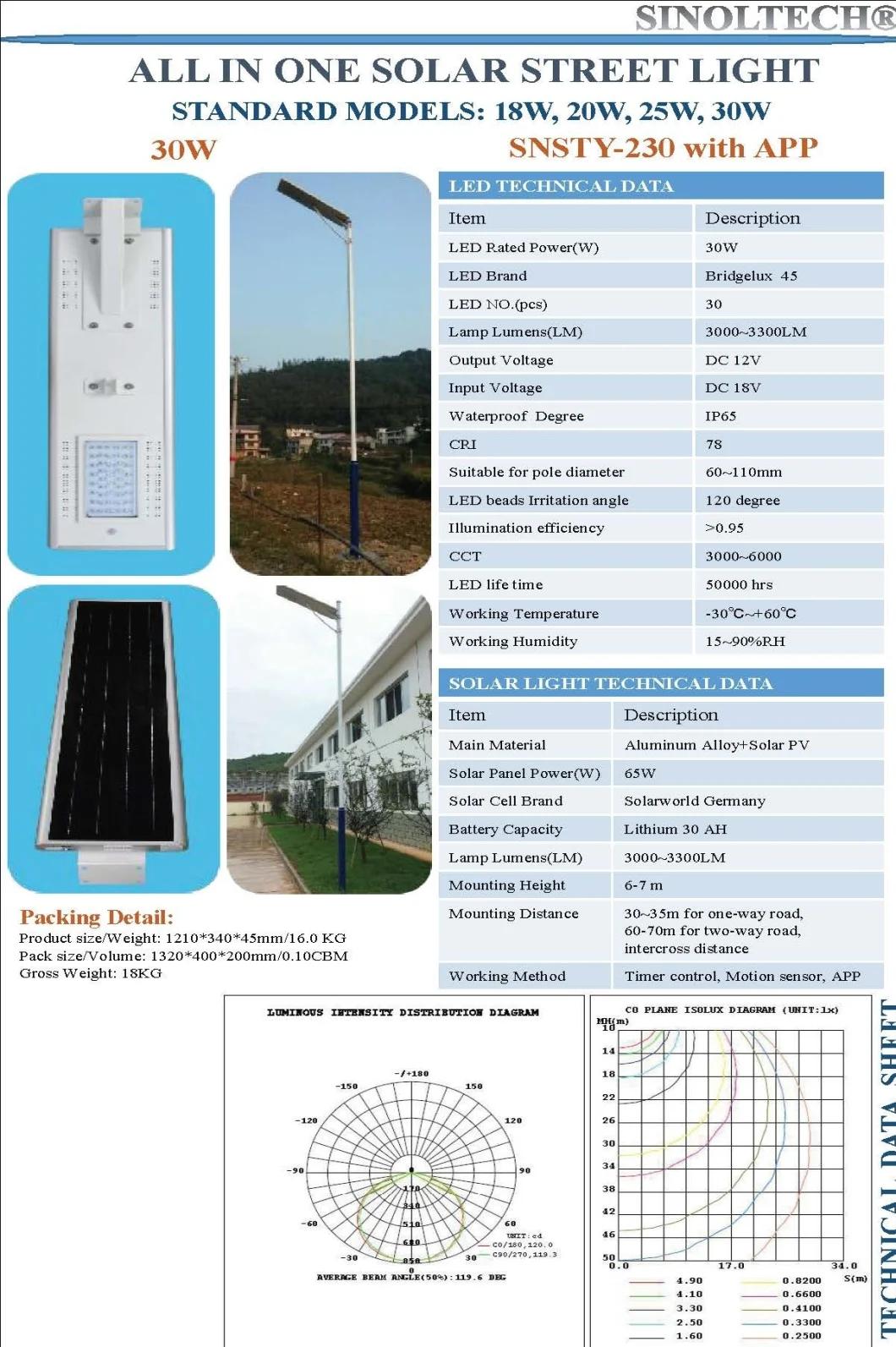

----Technical Data for All in one 30W LED Solar Street Light:

Solar Panel	Max Power	18V60W(High efficiency mono solar cell)
	Life time	25 years
Battery	Type	Lithium battery
	Life time	5 years
LED Lamp	Max power	12V 30W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	3100-3200LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	9 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 10 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6500K (2700-7000K optional)
Mounting height	range(m)	7-7.5m
Space between light	range(m)	20-25m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		5 years

Screw fixing mounting method-

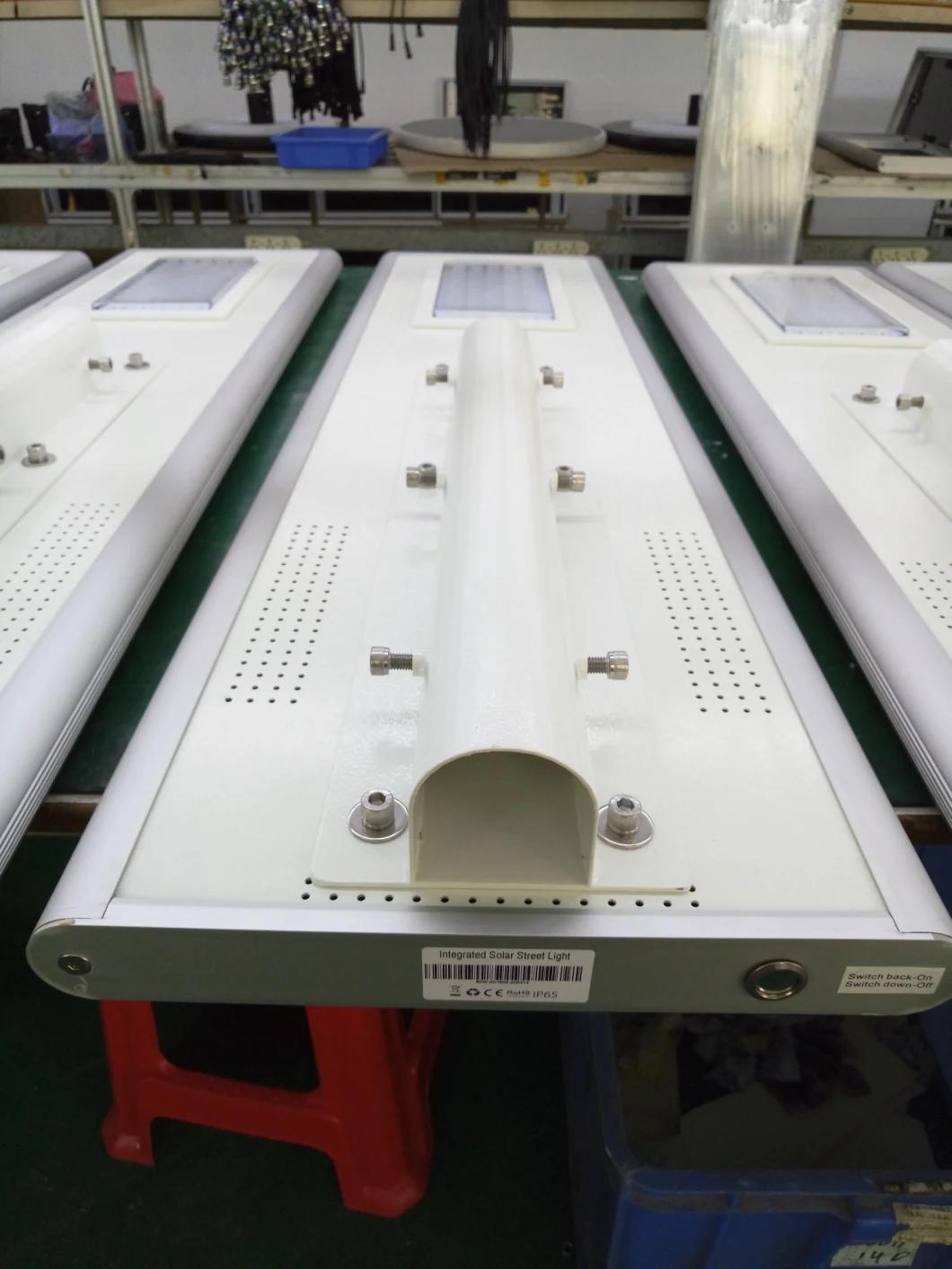

----Tube Mounting option:

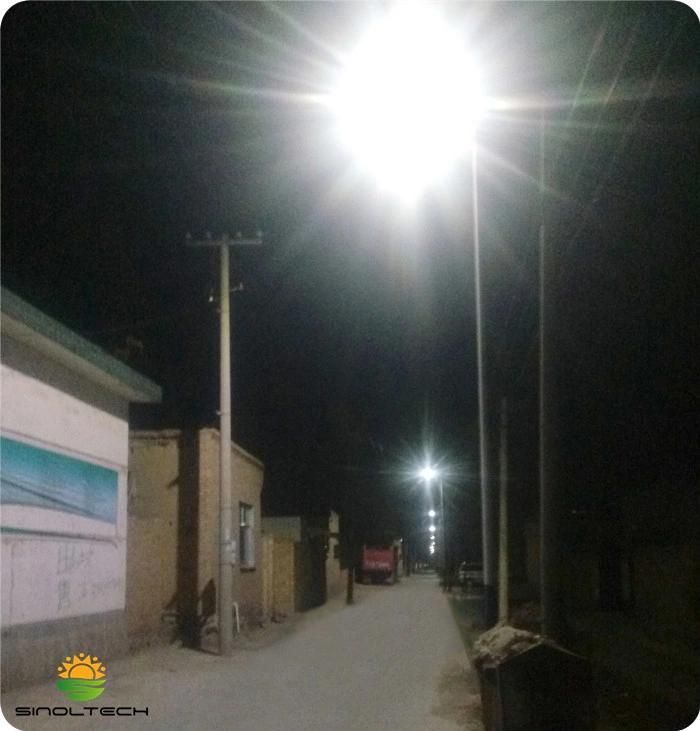

Project Photos-
