• Model NO.：SNSTY-218
• Cell Type：Lithium Battery
• Charging Time (H)：8
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product Size：920*325*43mm
• Gross Weight：14.5kg
• Carton Size：960*370*210mm
• Install Height：5-6m
• Lumen(Lm)：1800-1900lm
• Model No.：Snsty-218
• Product Name：18W LED All in One Solar Street Light
• LED Power：18W
• Solar Panel：40W
• Lithium Battery Capacity：15ah
• Transport Package：Strong Carton
• Specification：18W LED All in One Solar Street Light
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-218 Cell Type Lithium Battery Charging Time (H) 8 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product Size 920*325*43mm Gross Weight 14.5kg Carton Size 960*370*210mm Install Height 5-6m Lumen(Lm) 1800-1900lm Model No. Snsty-218 Product Name 18W LED All in One Solar Street Light LED Power 18W Solar Panel 40W Lithium Battery Capacity 15ah Transport Package Strong Carton Specification 18W LED All in One Solar Street Light Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity China

Product Description

18W LED All in One Solar Street Light Integrated with 40W PV (SNSTY-218)

----Main feature of SINOLTECH All in one LED solar street light:
1) Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
    Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2) Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3) Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years, excellent high temperature performance, long life time can ensure the service life of whole product.
4) Waterproof structure, safe and reliable.
5) Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.
6) With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.

----Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.

----Specification:

Solar Panel	Max Power	18V40W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery 13AH
	Life time	5 years
LED Lamp	Max power	12V18W
(With sensor)	Led chip brand	Bridgelux
	Lumen(LM)	1800-1900LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	6-7 hours
Discharge time	Full power	11 hours
	Half power	22 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6500-7000k
Mounting height	range(m)	5-6m
Space between light	range(m)	18-20m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		5 years

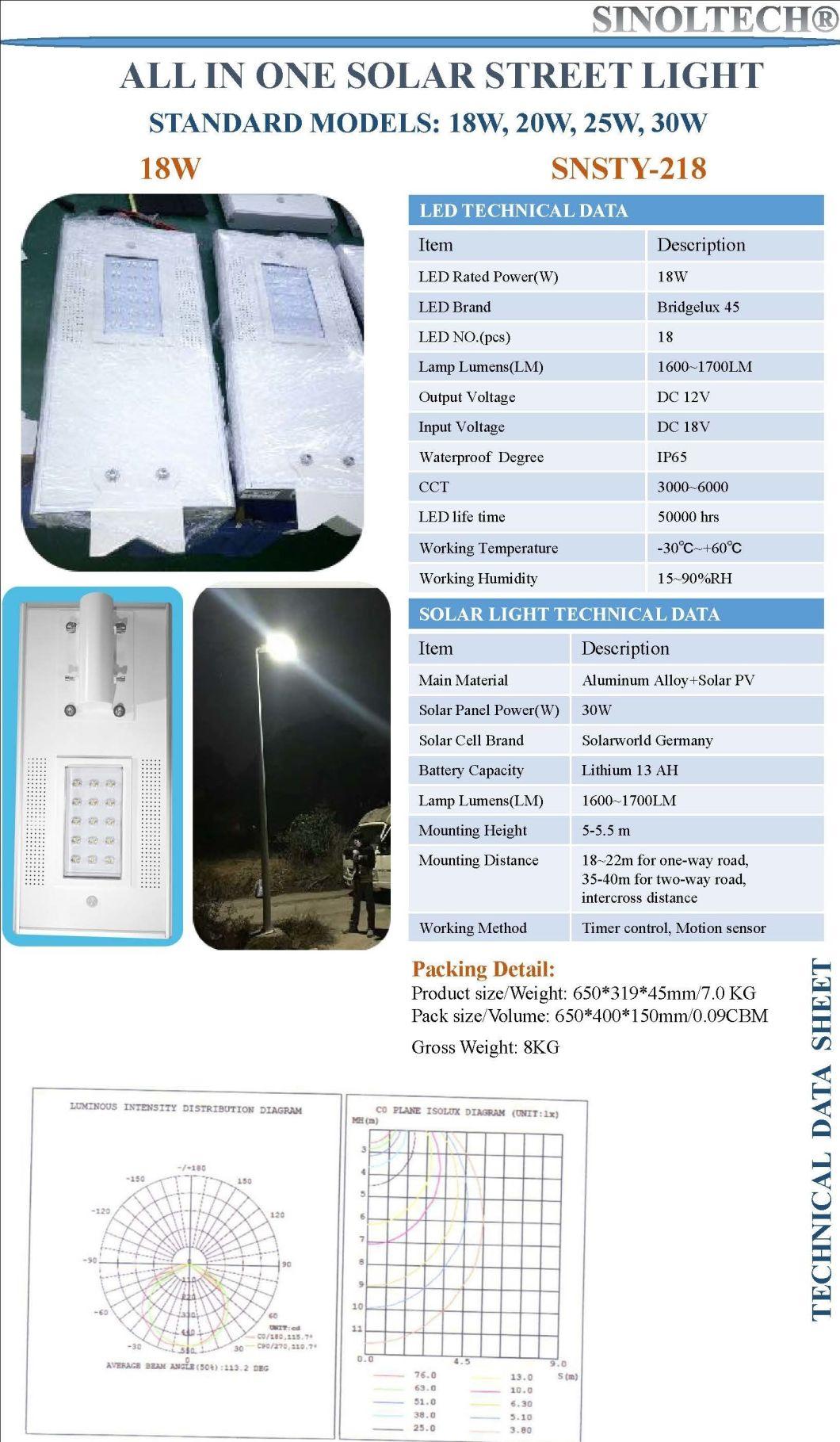

----DATA SHEET:

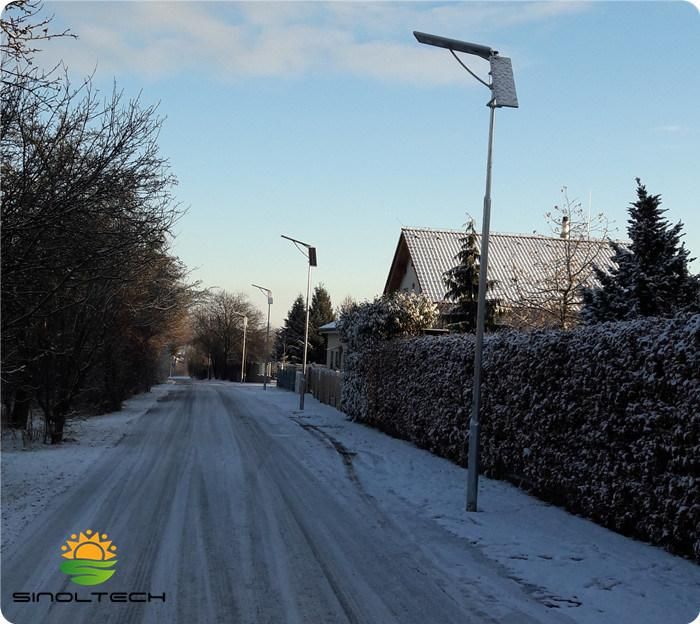

---Case:

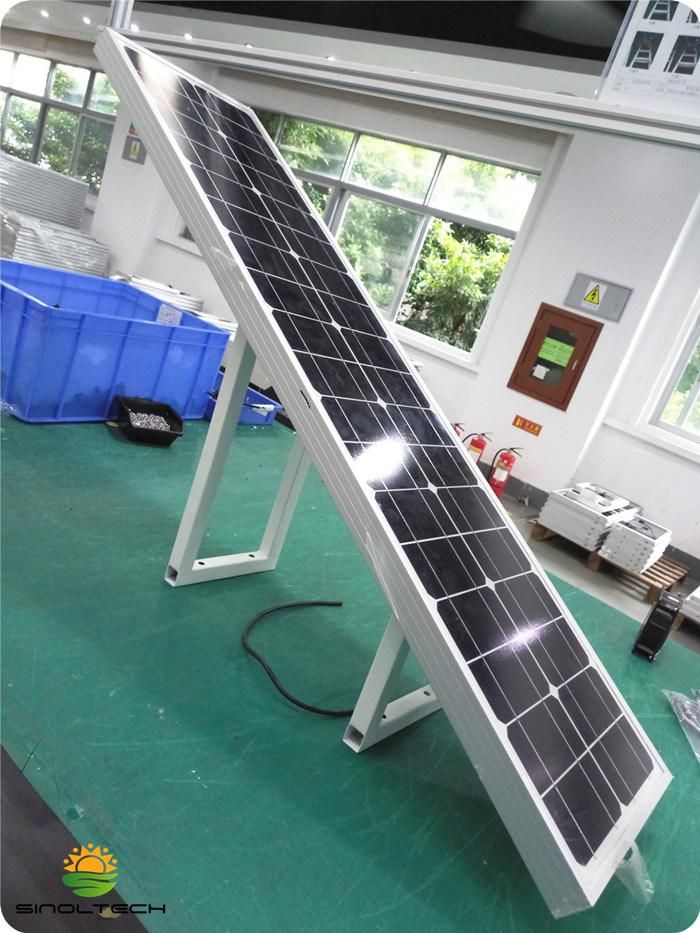

Customized with additional solar panel:
