• Model NO.：FP-VRC
• Driving Motor Number of Mechanical Lift：1
• Double Cylinder Lift Type：Planer-type
• Shearing Lift Type：Small Shear Type
• Condition：New
• Brand：Mutrade
• Design：Four Post
• Height (mm：4000 - 6000
• Width (mm)：2000 - 3500
• Length of Platfrom：4000-6000 mm (on Request)
• Width of Platform：2000 - 3500 mm (on Request)
• Lifting Height：2500 - 5000 mm (on Request)
• Capacity：2000 - 5000 Kg (on Request)
• Power Supply：380V 60Hz 3p
• Finished Treatment：Spray Paint
• Production Time：28 Days
• Transport Package：Standard Exporting Package
• Specification：CE,ISO9001
• Trademark：Muparking,OEM
• Origin：Qingdao, China
• HS Code：84289020
• Production Capacity：500 Units,Month

Basic Info.

Model NO. FP-VRC Driving Motor Number of Mechanical Lift 1 Double Cylinder Lift Type Planer-type Shearing Lift Type Small Shear Type Condition New Brand Mutrade Design Four Post Height (mm 4000 - 6000 Width (mm) 2000 - 3500 Length of Platfrom 4000-6000 mm (on Request) Width of Platform 2000 - 3500 mm (on Request) Lifting Height 2500 - 5000 mm (on Request) Capacity 2000 - 5000 Kg (on Request) Power Supply 380V 60Hz 3p Finished Treatment Spray Paint Production Time 28 Days Transport Package Standard Exporting Package Specification CE/ISO9001 Trademark Muparking/OEM Origin Qingdao, China HS Code 84289020 Production Capacity 500 Units/Month

Product Description

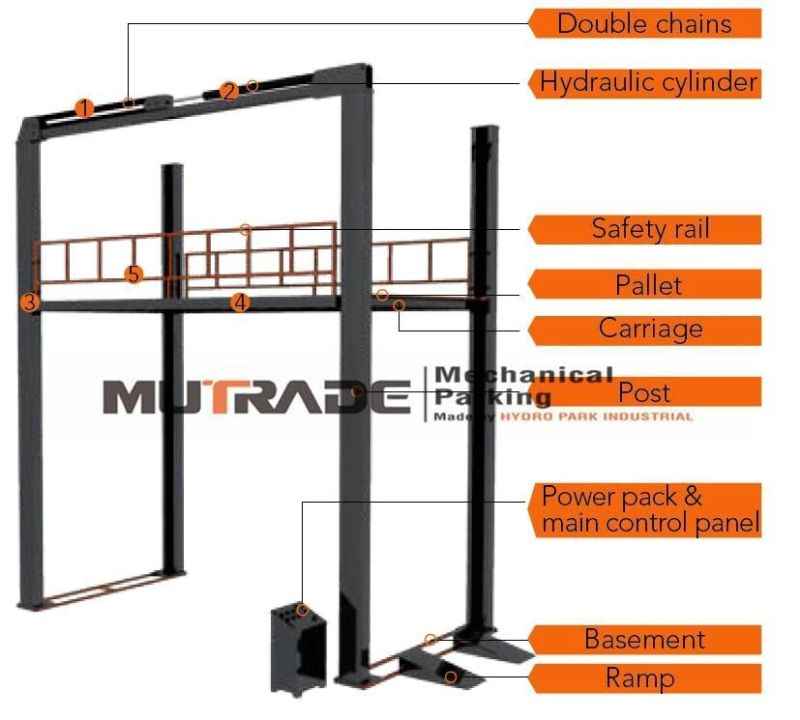

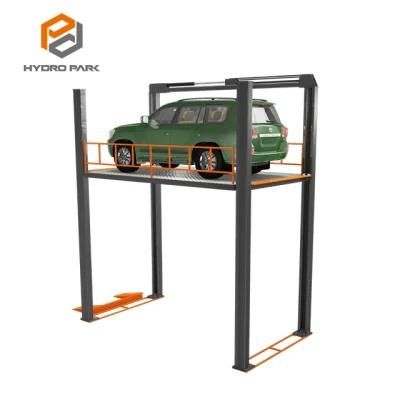

VRC is a vertical transportation lift moves car from one floor to another, it is available both in 4 post & scissor type.

Introduce:


1. VRC is a kind of car or goods lift.
2. Its capacity and plat form are customized.
3. Lifting speed about 3-5m/min.
4. Lifting height can be 3-12m.
5. Drive type: Hydraulic Cyliner.

Features:
1. Stable and quiet
2. Simple operation
3. Fast lifting speed
4. Totally customzied
5. Easy maintenance
6. Smooth lifting motion
7. Small order accetable
8. Flexible on lifting height
9. Build-in balance system
10. Small space occupation
11, Remote control is optional
12, High precision hydraulic drive system
13. Double cylinder design for scissor type
14. Full safety features available as an option
15. Double chain design for higher safety for 4 post type
16. High density chains with longer service lift for 4 post type

Model	S-VRC
Length	Customized
Width	Customized
Height Overall	Customized
Lifting Height	Customized
Lifting Capacity	Customized
Lifting Speed	3-5m/min
Drove Mode	Hydraulic Cylinder
Motor Power	4-15Kw
Voltage	1ph/220v. 3ph/380v.1ph/380v
Net/Gross Weight	Customized
Terms of delivery	FOB Qingdao Port
Surface treatment	Paint Coating
Container load	1-4 units per 40 ft coantainer
Delivery time	45~60 days after prepaid and drawings confirm
Warranty	5 years for structure, 1 year for small parts
