Standard Auto Paint Booth for Car (WLD8100)
Canvard Packaging International Co., Ltd.- Type：Spray Booth
- Certification：CE
- Substrate：EPS
- Brand：Weilongda
- Coating：Powder Coating
- Airflow Direction：Cross-flow Type
Base Info
- Model NO.：WLD8100
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Model：Wld-8100
- External Size：7000*5450*3480mm
- Internal Size：6900*3900*2800mm
- Air Flow：24000m3,H
- Air Speed：0.3-0.5m,S
- Power：10kw
- Vehicle Suited：Saloon Car,Jeep,SUV
- Transport Package：Export Standard
- Specification：Standard Type
- Trademark：WeiLongDa
- Origin：Guangzhou, China
- HS Code：84198990
- Production Capacity：2, 000 Sets ,Year
Description
Basic Info.
Model NO. WLD8100 Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Model Wld-8100 External Size 7000*5450*3480mm Internal Size 6900*3900*2800mm Air Flow 24000m3/H Air Speed 0.3-0.5m/S Power 10kw Vehicle Suited Saloon Car/Jeep/SUV Transport Package Export Standard Specification Standard Type Trademark WeiLongDa Origin Guangzhou, China HS Code 84198990 Production Capacity 2, 000 Sets /YearProduct Description

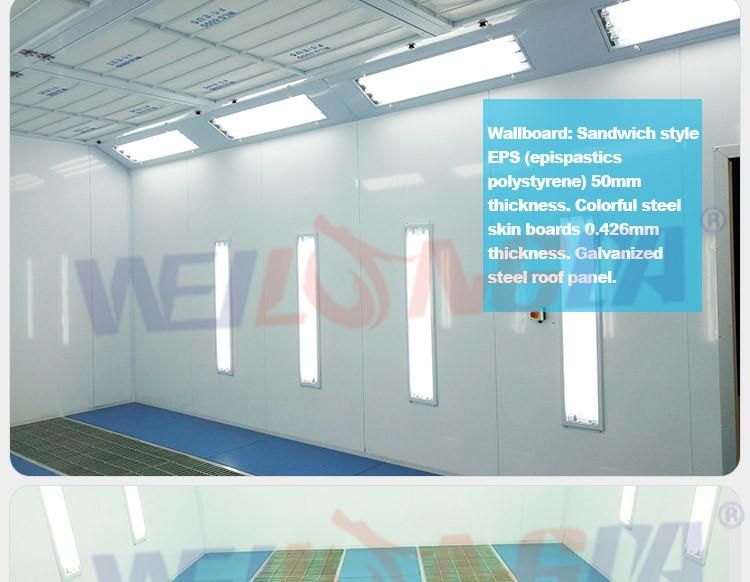

Standard Auto Paint Booth for Car (WLD8100) Specification :- Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.

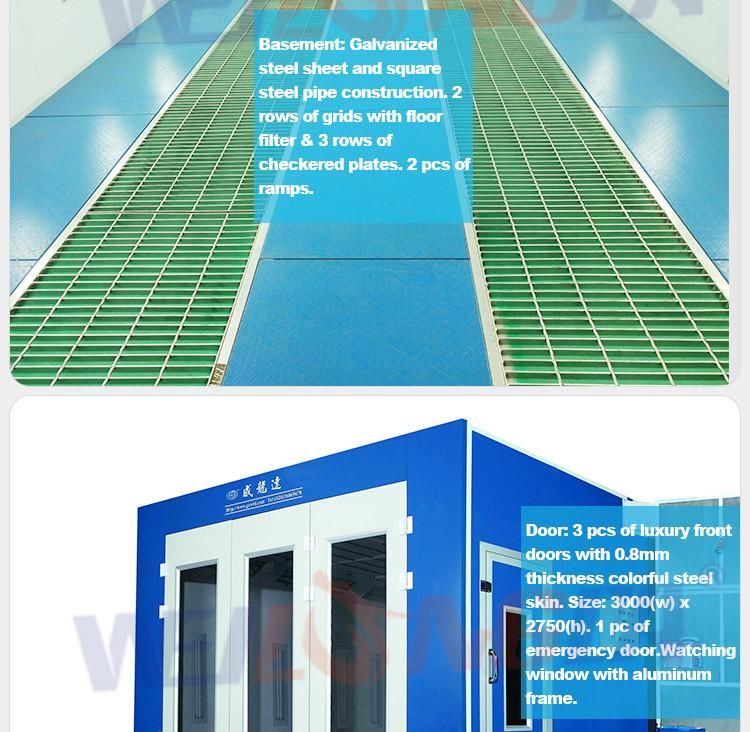

- Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

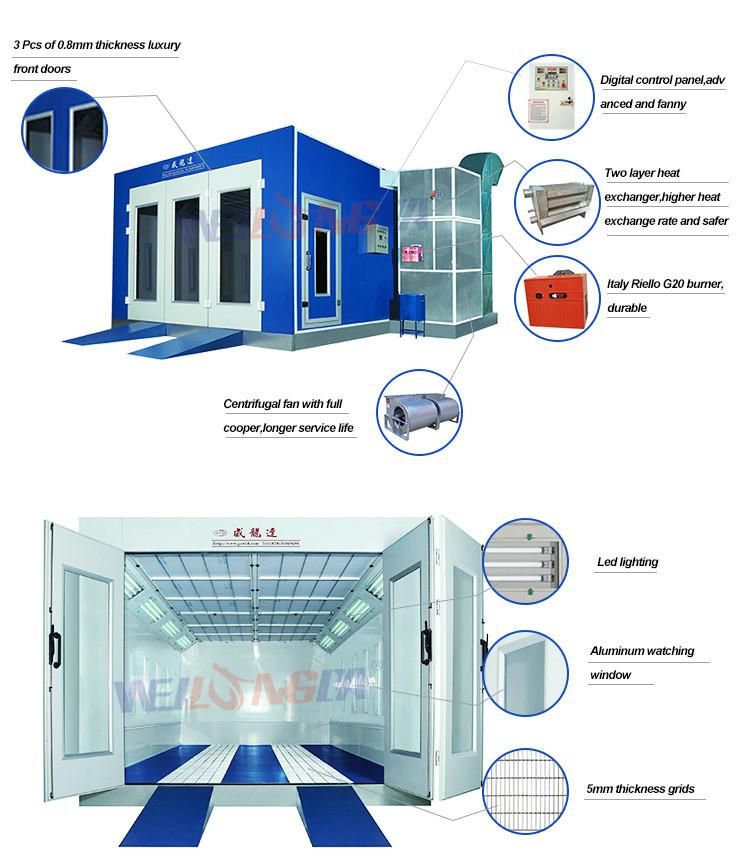

- Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door.Watching window with aluminum frame.

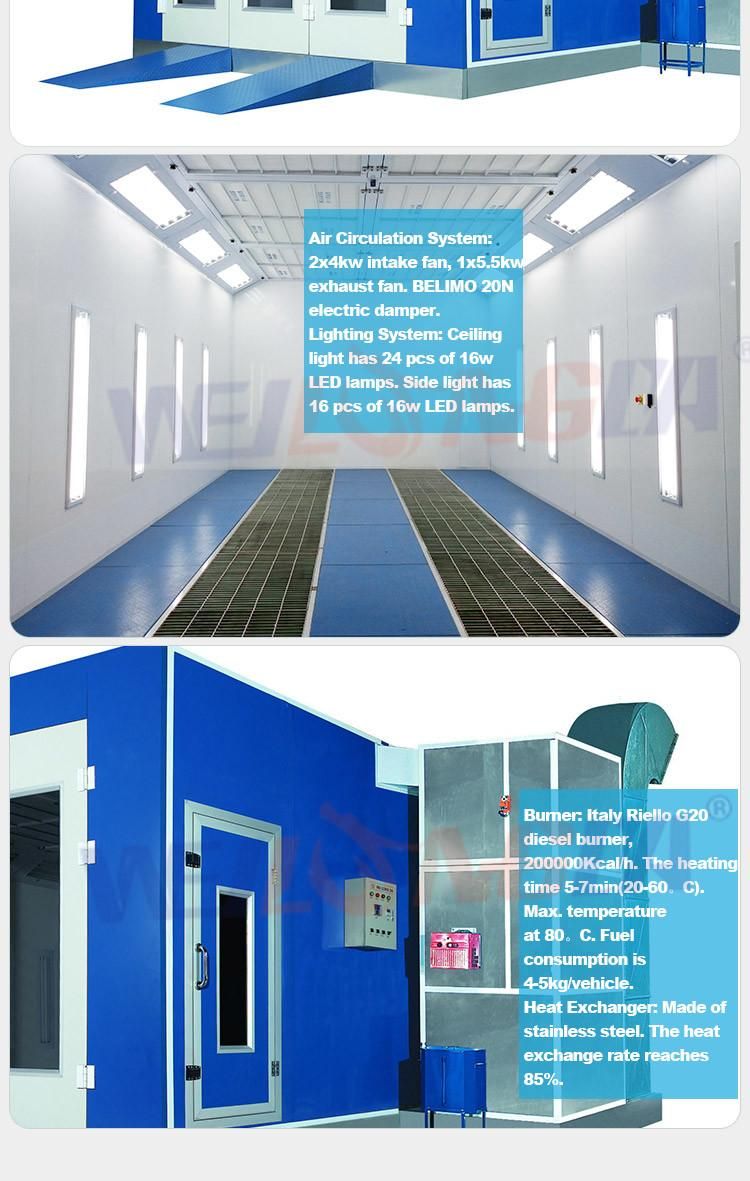

- Air Circulation System: 2x4kw intake fan. BELIMO 20N electric damper.
- Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60.C). Max. temperature
at 80.C. Fuel consumption is 4-5kg/vehicle. - Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
- Lighting System: Ceiling light has 24 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.
- Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
| Model | External Size (m) | Internal Size (m) | Air Flow (m3/h) | Air Speed (m/s) | Power (kw) | Vehicle Suited |
| WLD8100 | 7x5.45x3.48 | 6.9x3.9x2.8 | 24000 | 0.3-0.5 | 10 | Saloon Car Jeep |
