• Model NO.：SNSTY-215
• Cell Type：Lithium Battery
• Charging Time (H)：7 Hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Product Name：15 Watt Integrated Solar LED Street Light
• Model No.：Snsty-215
• LED Power：15W
• Solar PV：28W
• Lithium Battery：13ah
• Mounting Height：3-4.5m
• Mounting Distance：15-20m
• Waterproof Degree：IP65
• CCT：3000-6000K
• Brand：Sinoltech
• Transport Package：Strong Carton
• Specification：15W LED 28W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-215 Cell Type Lithium Battery Charging Time (H) 7 Hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Product Name 15 Watt Integrated Solar LED Street Light Model No. Snsty-215 LED Power 15W Solar PV 28W Lithium Battery 13ah Mounting Height 3-4.5m Mounting Distance 15-20m Waterproof Degree IP65 CCT 3000-6000K Brand Sinoltech Transport Package Strong Carton Specification 15W LED 28W Solar Panel Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity China

Product Description

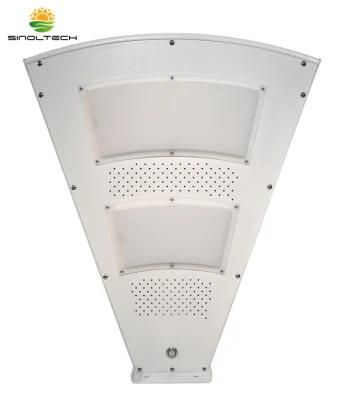

Motion Sensing All in one 15 Watt Integrated Solar LED Street light for car park lighting (SNSTY-215)

---Our products & Services:
We offer customized solution to meet clients' different project and budget requirement:
1. Customized shell material:
High quality Aluminum alloy frame, light weight, anti-corrosion and visual good looking;
Galvanized iron frame, lower cost to reduce total budget, 3 -years corrosion resistance guarantee. Accept customized shell color.

2. Customized working method
Motion sensor, LED full power lighting when there is people/vehicle passing-by, LED 1/3 power
Lighting when there is no people/vehicle passing. Induction time: 60s, sensing distance: 9-10m.
Timing control: Customize time period for different working power.
Recommended"3+4+5", first 3 hrs full power lighting, second 4 hrs 1/2 power lighting, last 5 hrs 1/3 power lighting.

3. Customized brand of components:
Solar panel: USA SUNPOWER brand solar panel(19-23% efficiency) or normal monocrystalline solar panel(17-18% efficiency).
LED lamp: High quality USA bridgelux LED chip or TAIWAN EPISTAR LED chip
Customzied color temperature (3500-7000K) upon request.
Lithium battery with 5 years life time guarantee, accept customized capacity to increase lighting time or reduce product cost.
4. Accept OEM logo printing.

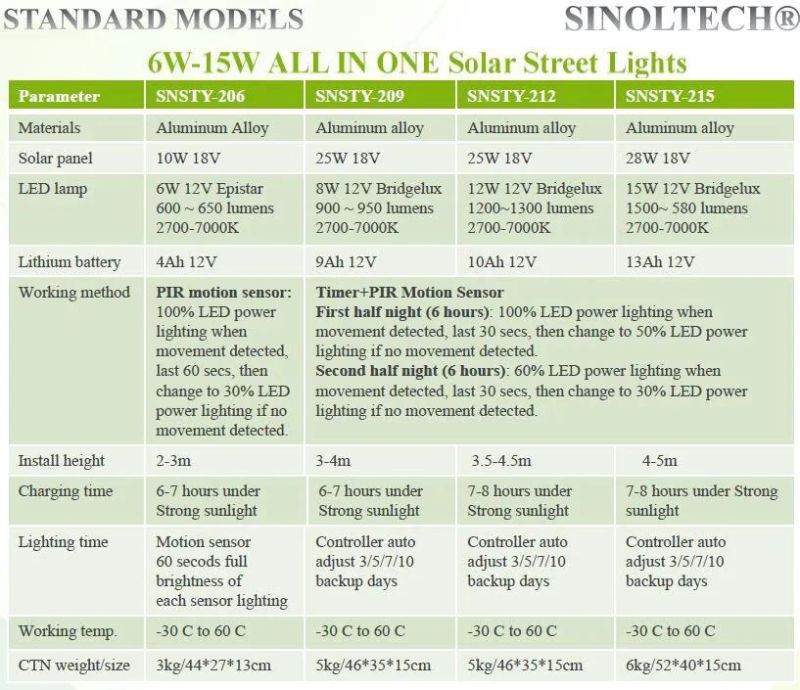

---General specification:

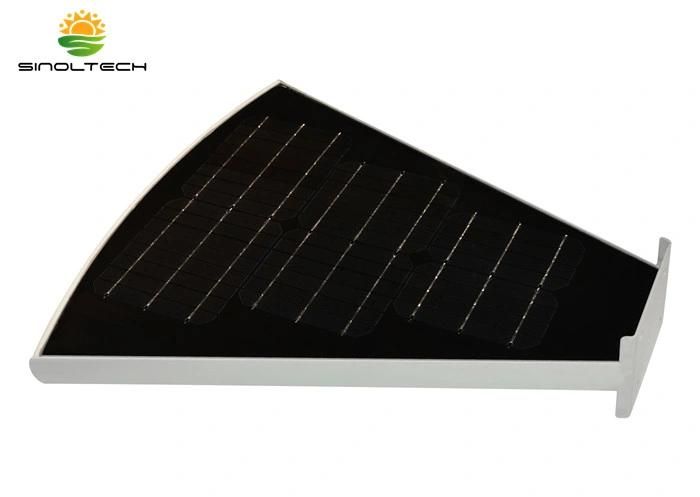

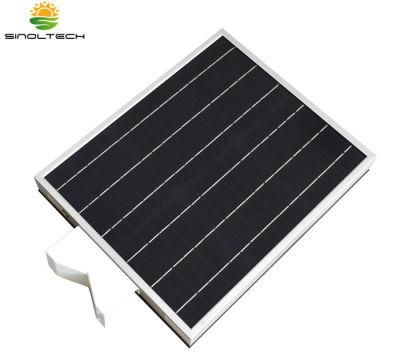

Solar Panel	Max Power	18V28W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery 13AH
	Life time	5 years
LED Lamp	Max power	12V15W
(With sensor)	Led chip brand	Bridgelux
	Lumen(LM)	1500-1580LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	7-8 hours
Discharge time	Full power	10 hours
	Half power	20 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000-6500k
Mounting height	range(m)	3-4.5m
Space between light	range(m)	15-20m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		5 years

---Other shape:

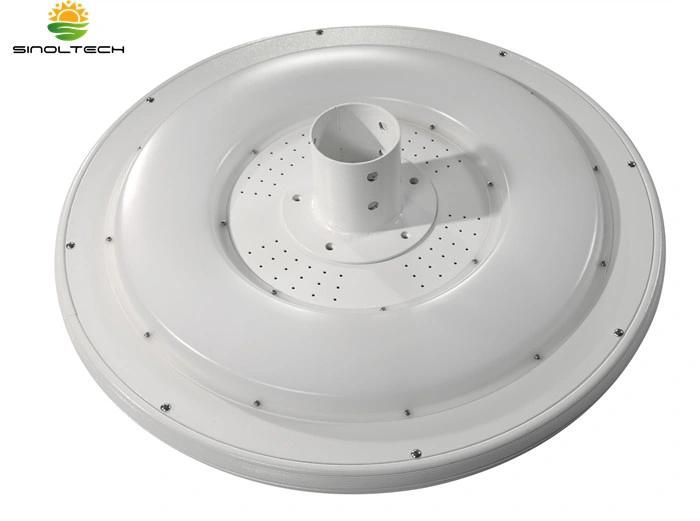

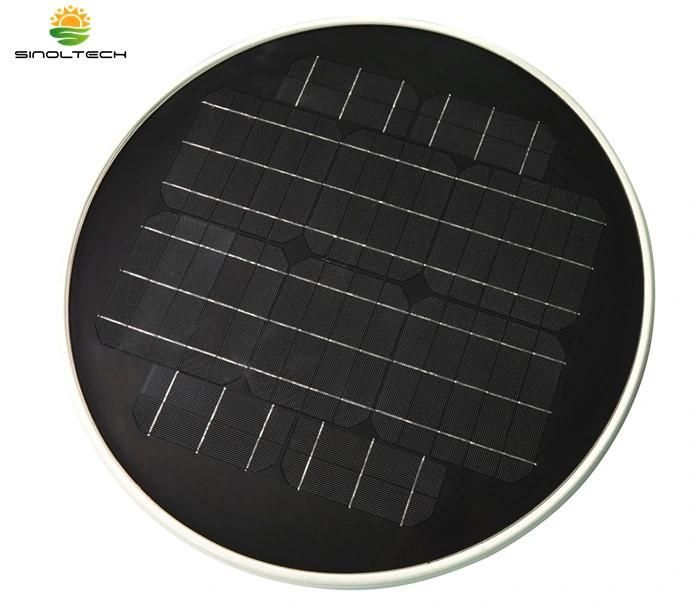

ROUND-

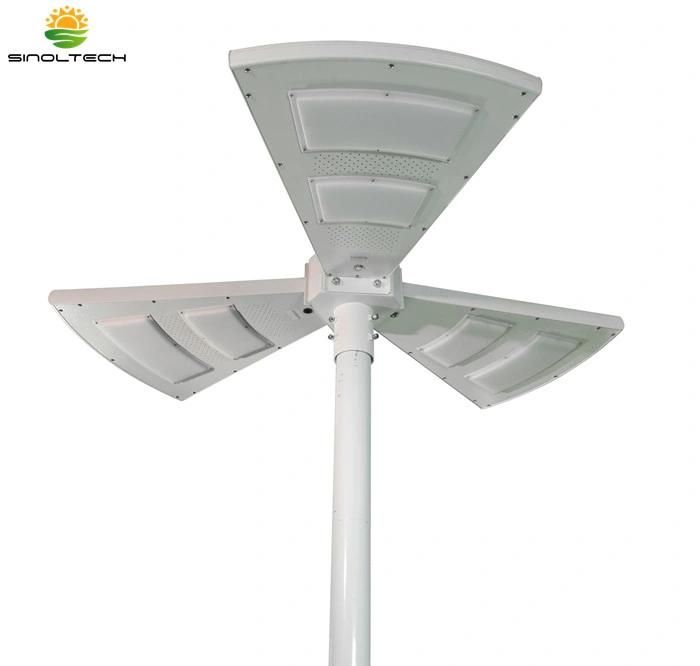

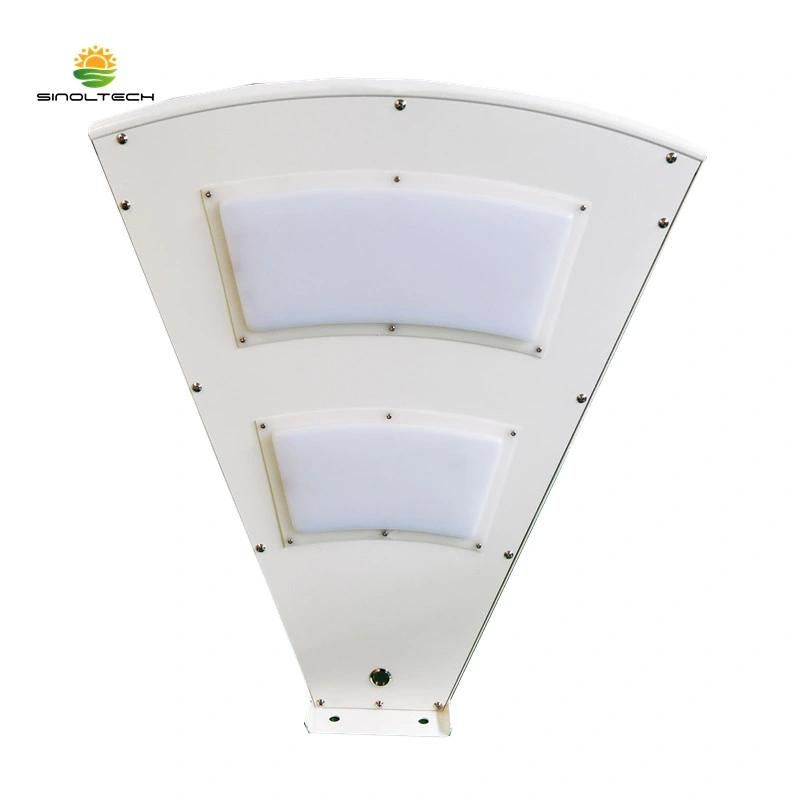

FAN SHAPED-
