• Model NO.：SNSTY-208
• Charging Time (H)：6
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• Product/Packing Size：515*320*52mm , 530*390*140mm
• Product/Packing Weight：5.5kg,6.5kg
• Carton Size：560*W570*H410mm
• Qty/CTN：4 Sets,CTN
• Gw for Carton：27kg
• Loading Qty for 20gp：800PCS
• Loading Qty for 40gp：1600PCS
• Transport Package：Strong Carton
• Specification：8W LED 15W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• Production Capacity：China

Basic Info.

Model NO. SNSTY-208 Charging Time (H) 6 Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V Product/Packing Size 515*320*52mm / 530*390*140mm Product/Packing Weight 5.5kg/6.5kg Carton Size 560*W570*H410mm Qty/CTN 4 Sets/CTN Gw for Carton 27kg Loading Qty for 20gp 800PCS Loading Qty for 40gp 1600PCS Transport Package Strong Carton Specification 8W LED 15W Solar Panel Trademark SINOLTECH Origin China Production Capacity China

Product Description

8W High Power Solar LED Street Light solar garden lights

1. Solar panel: 15W 18V Mono
2. LED: 8W 12V Epistar chip 800-880LM
3. Lithium battery 6AH
4. Main material: Aluminum alloy
With sensor
5. Install height: 3-4m

Solar Panel	Max Power	18V15W(High efficiency monocrystalline silicon)
	Life time	25 years
Battery	Type	Lithium battery
	Life time	5 years
LED Lamp	Max power	12V8W
(With sensor)	Led chip brand	Epistar from Taiwan with high brightness
	Lumen(LM)	800-880LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	6hours
Discharge time	Full power	12 hours
	Half power	24 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6000k
Mounting height	range(m)	3-4m
Space between light	range(m)	8-10m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		2 years

Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.

Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or
Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.

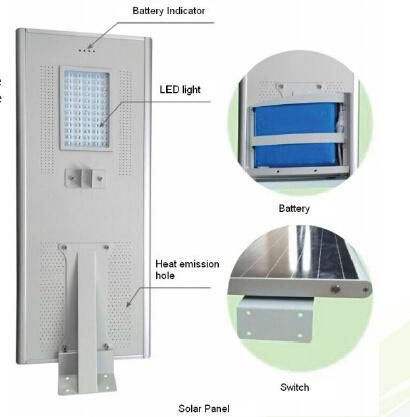

Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary



Product size:
515*320*52mm
Packing size:
520*390*240mm
N. W. /G. W.: 5.8kg/6.8kg
