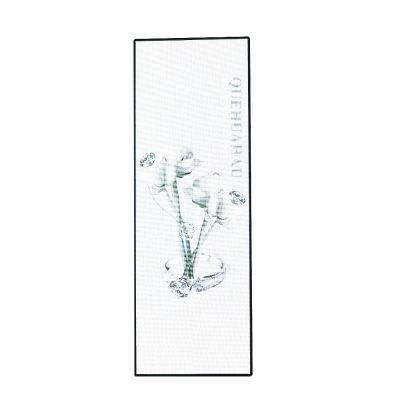

Hot Resolution Outdoor Advertising LED Video Display (P5, P6)
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：6mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：350W , m²
Base Info
- Model NO.：P5
- Pixel Density：27777dots,Sq.M
- Scanning Mode：1,8 Scan
- Display Type：LED Video Display
- Application：Advertising, Stage Performance, Rental
- Certification：CE, RoHS, CCC
- LED Encapsulation：SMD3535
- Module Size：192X192mm
- Cabinet Size：960X960mm
- Cabinet Material：Aluminum,Iron
- Module Pixel：32X32dots
- Transport Package：Wooden Case or as Required
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
P6 Outdoor full Color LED Screen SpecificationPixel pitch 6mm Pixel Configuration 1R1G1B LED component SMD3535 Size of module 192mm x 192mm Resolution of module 32x32dots Size of cabinet 960mm x 960mm x 150mm or 768x768x150mm Resolution of cabinet 160x160dots or 128x128dots Material of Cabinet Aluminum/Iron Weight of Cabinet <40KGS Brightness >6000cd/m2 Density 27777dots/m2 Best viewing angle 140° /140° Best viewing distance 6-100M Maximum power consumption <1000W/m2 Average power consumption <400W/m2 Driving method 1/8 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >2000Hz IP grade IP65 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
