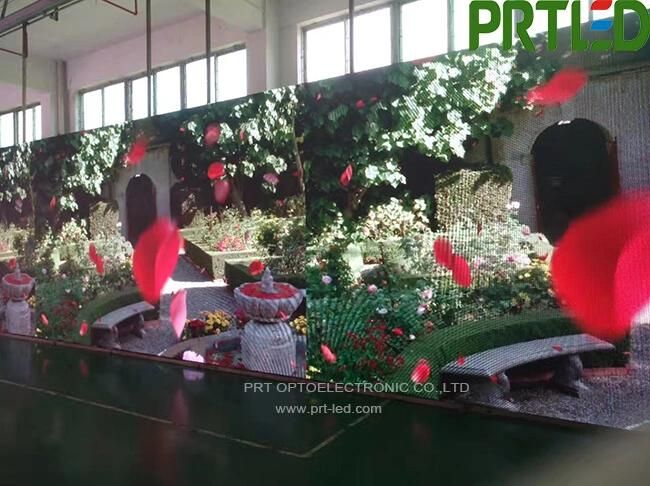

P10 Outdoor Full Color LED Advertising Display with High Brightness
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：350W , m²
Base Info
- Model NO.：P10
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising, Stage Performance, Rental
- Certification：CE, RoHS, CCC
- LED Encapsulation：SMD3535
- Module Size：320X160mm
- Module Resolution：32X16dots
- Brightness：>7000nits
- Transport Package：Wooden Case or as Required
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
P10 Outdoor full Color LED Screen SpecificationPixel pitch 10mm Pixel Configuration 1R1G1B LED component SMD3535 Size of module 320mm x 160mm Resolution of module 32x16dots Size of cabinet 960mmx 960mm /1280mm x 960mm Resolution of cabinet 96x96dots / 128 x 96dots Material of Cabinet Iron with back doors Weight of Cabinet <60KGS Brightness >7500cd/m2 Density 10000dots/m2 Best viewing angle 140° /140° Best viewing distance 10-150M Maximum power consumption <800W/m2 Average power consumption <350W/m2 Driving method 1/2 scan Control method Synchronization Gray scale 65536 Colors 256 x 256 x 256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1800Hz IP grade IP65 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

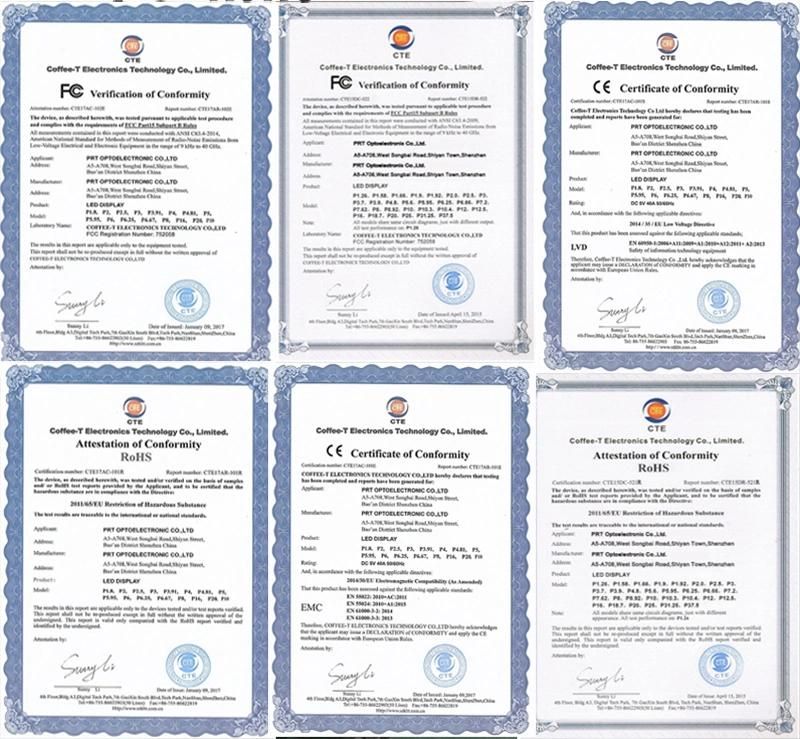

PRTLED produce products according to the internation standard of CE,ROHS,FCC etc,and provide two years warranty,life-time after sale service.also with strict quality control system to confirm high quality with no problem before delivery
