• Model NO.：2.5mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：160000dots,Sqm
• Scanning Mode：1,32 Scan
• System Operating Platform：WIN2000
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall
• IP Rating：IP31

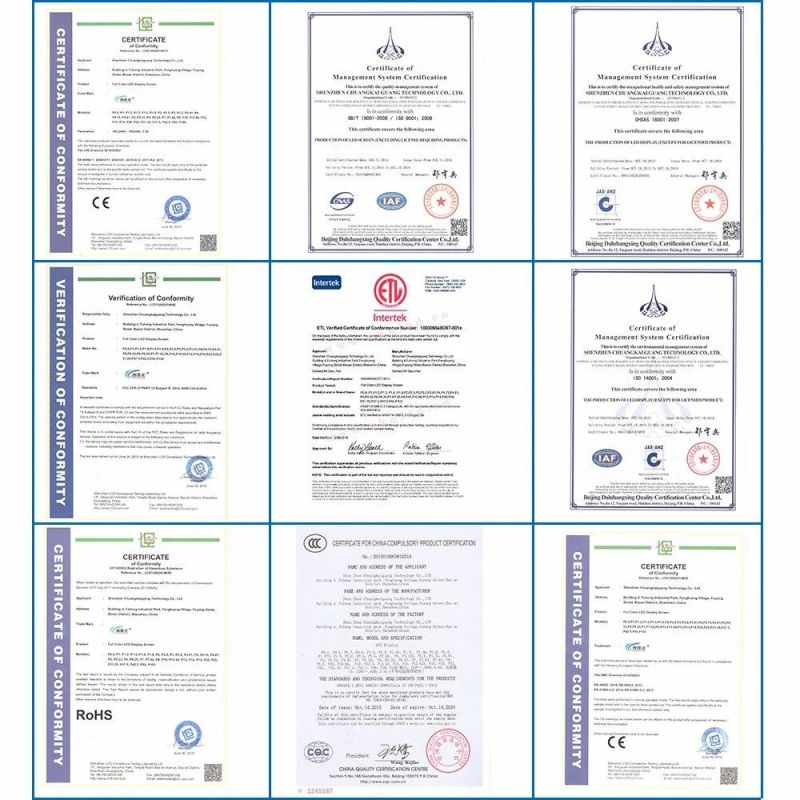

• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：160X160mm
• Module Resolution：64*64dots
• Cabinet Size：480X480mm
• Cabinet Resolution：192*192dots
• Maintenance：Front , Rear Service
• Screen Brightness：1200nits
• Refresh Rate：1920-3840Hz
• Grey Scale：12bits
• Contrast Ratio：3500:1
• Screen Resolution：160000dots,Sqm
• Cabinet Material：Die-Casting Aluminum
• Drive Method：1,12 Scan
• Certificates：UL,FCC,CCC,ETL
• Avg.Power Consumption：200W,Sqm
• Max.Power Consumption：600W,Sqm

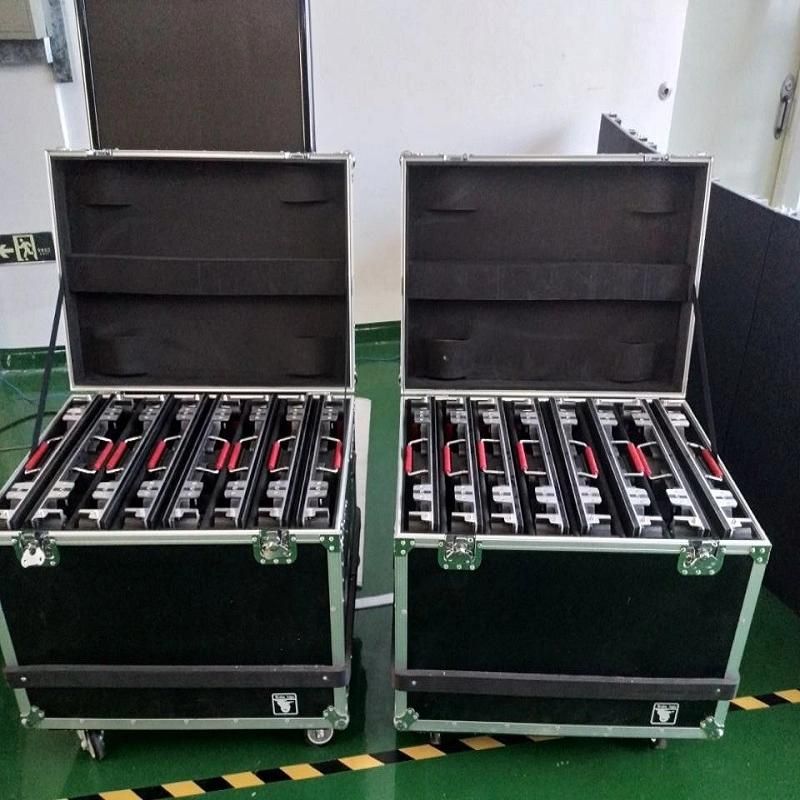

• Transport Package：Flight Case
• Specification：4pcs,6pcs,8pcs cabinet in one case
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 2.5mm Pixel Configuration 1R,1G,1B Pixel Density 160000dots/Sqm Scanning Mode 1/32 Scan System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Shopping Mall IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL Module Size 160X160mm Module Resolution 64*64dots Cabinet Size 480X480mm Cabinet Resolution 192*192dots Maintenance Front / Rear Service Screen Brightness 1200nits Refresh Rate 1920-3840Hz Grey Scale 12bits Contrast Ratio 3500:1 Screen Resolution 160000dots/Sqm Cabinet Material Die-Casting Aluminum Drive Method 1/12 Scan Certificates UL/FCC/CCC/ETL Avg.Power Consumption 200W/Sqm Max.Power Consumption 600W/Sqm Transport Package Flight Case Specification 4pcs/6pcs/8pcs cabinet in one case Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:

. Quiet design(fanless), excellent heat dissipation.

. Fast locking system for better consistency and seamless assembly.

. No mosaic phenomenon ,better contract ratio.

. High-precision die-casting design,light weight and easy assembly/dismantle.

. Nationstar leds, High refresh rate, high grey scale for TV STUDIO / TV STATIONS.


PRODUCT TECHNICAL SPECIFICATIONS:


NO.	Parameter	Specifications
1	Model	CA2

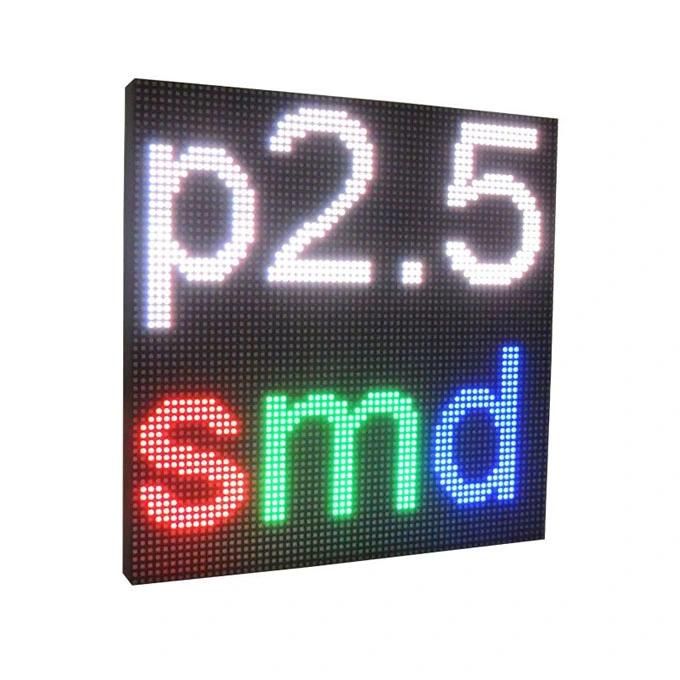

2	Pixel Pitch(mm)	2.5
3	LED encapsulation	SMD2020
4	Screen Resolution(dots/sqm)	160000
5	Scan Method	1/32

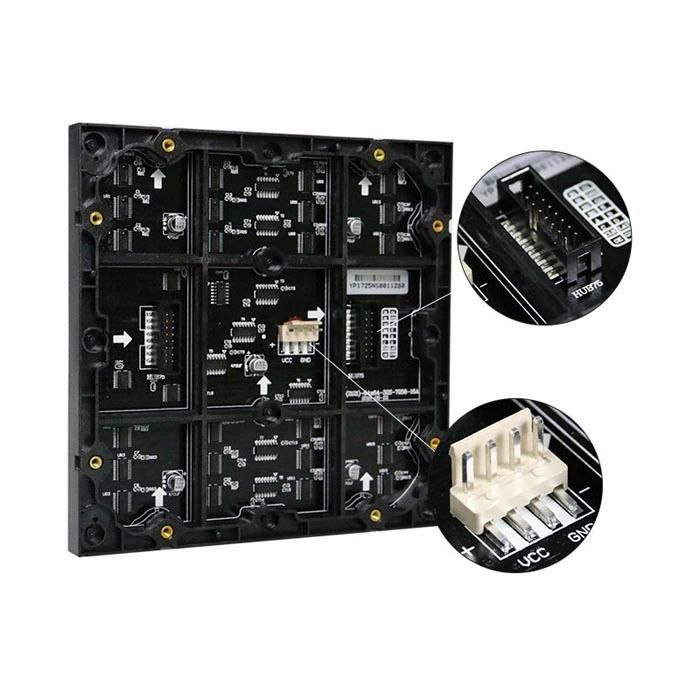

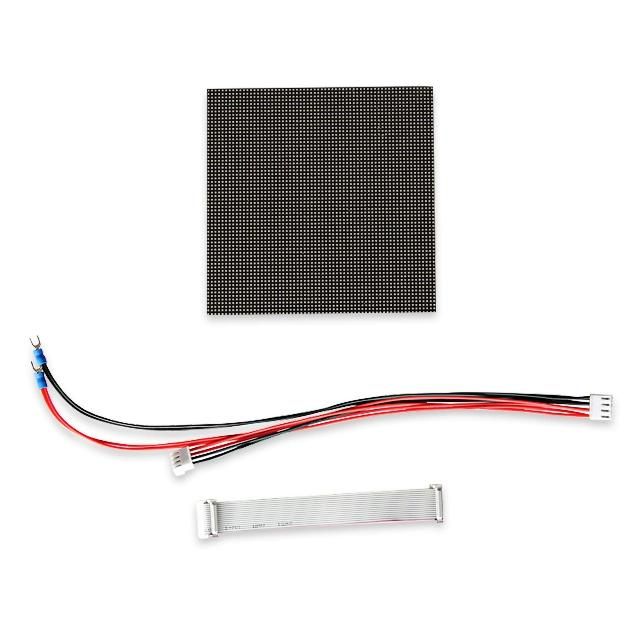

6	Module size(mm)	160x160

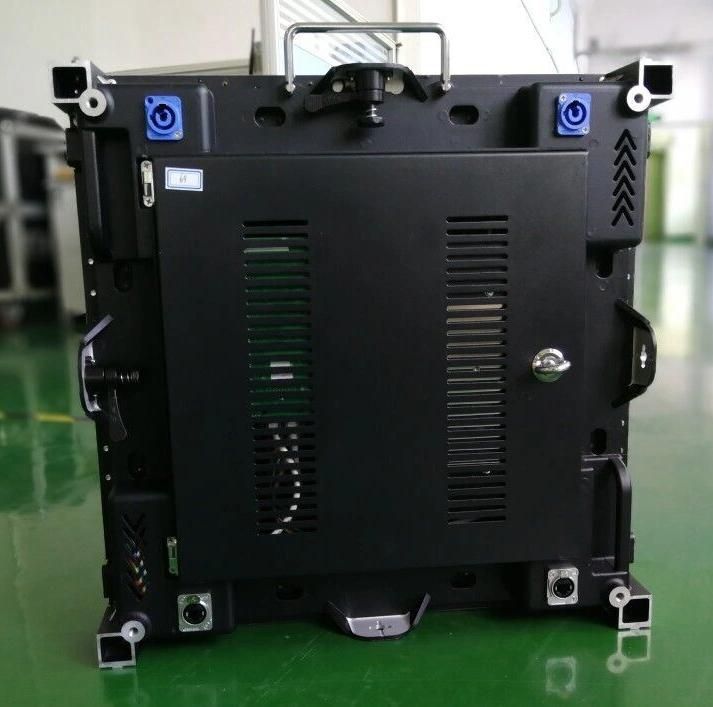

7	Cabinet size(L*W*H)	480x480x80mm

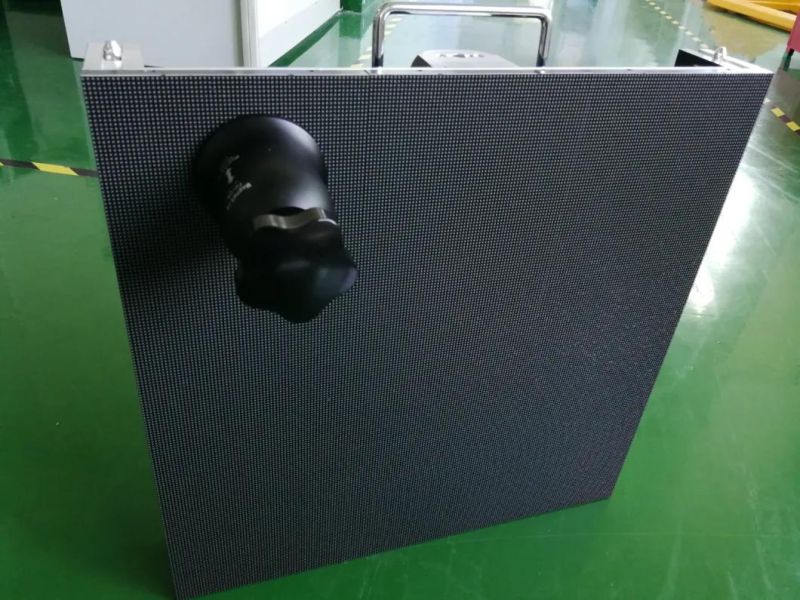

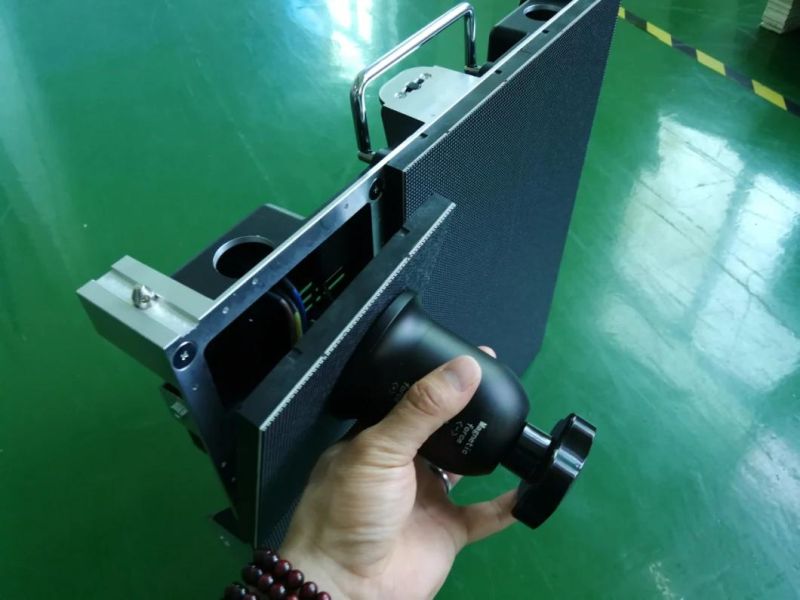

8	Maintenance	Front / Rear service
8	Cabinet(Kg)	6.8KG
9	Viewing angle	H:160° V:160°
10	Grey Scale	16bit
11	Refresh rate(HZ)	≥3840
12	Brightness(nits)	≥1200
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/sqm)	240
15	MAX. power consumption(W/sqm)	560
16	IP grade	IP31
17	controller	Nova
18	Working humidity	10~90%RH
20	Working temperature	-20ºC~40ºC
21	Storage temperature	-40ºC~70ºC

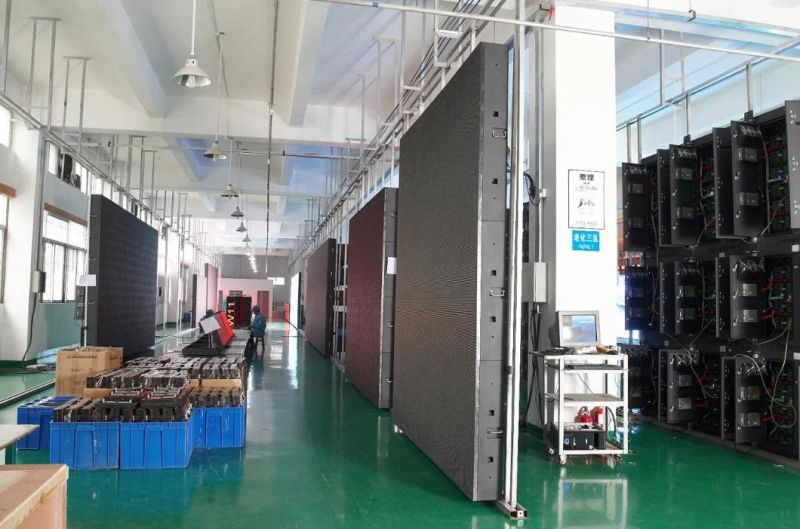

CKGLED FACTORY WORKSHOP:











In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.

(1) Every batch of LED will get a strict testing to exam its performance and quality.

Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance

(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.

Baking environment:
130ºC
2 hours

(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

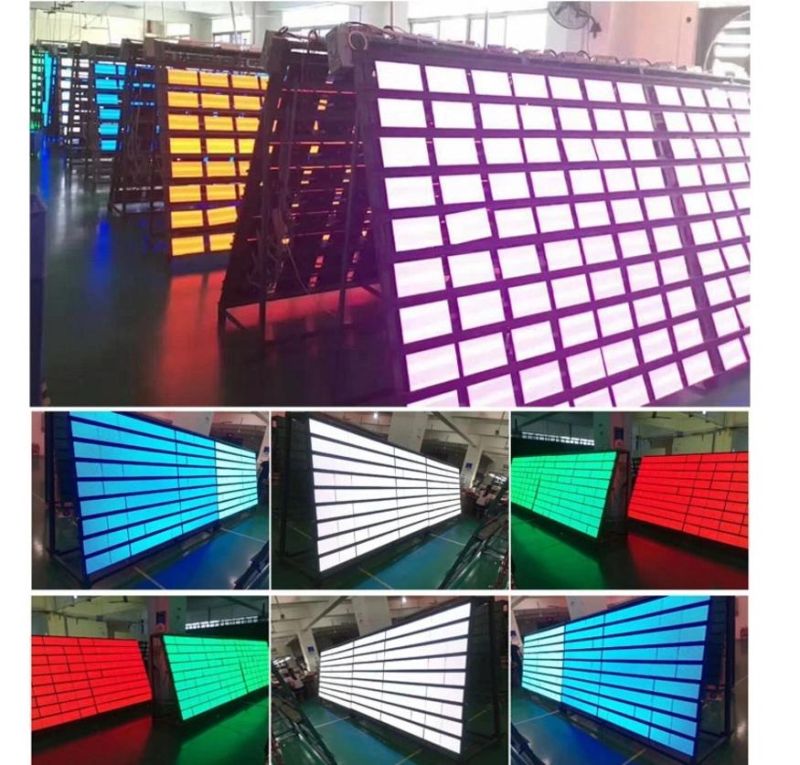

48 hours high brightness aging for the LED module and 72 hours aging  for finished displays,
in order to guarantee the final products steady performance and long MTBF.




Our service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
