• Model NO.：B7011C,HQ1
• Load Rating：P4,P2,P5
• Sealing Type：Sealed or Not
• Inner Diameter：55mm
• Breadth：18mm
• Loading Rating：Cr:19.9kn Cor:12.9kn
• Limiting Speed：Grease:19000r,Min Oil:32000r,Min
• Weight：Abou0.41kg
• Rolling Body：Ball Bearings
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Trademark：ZYS
• Origin：Luoyang, Henan, China

Basic Info.

Model NO. B7011C/HQ1 Load Rating P4/P2/P5 Sealing Type Sealed or Not Inner Diameter 55mm Breadth 18mm Loading Rating Cr:19.9kn Cor:12.9kn Limiting Speed Grease:19000r/Min Oil:32000r/Min Weight Abou0.41kg Rolling Body Ball Bearings Transport Package Cases and Pallets or as Customer′s Requirment Trademark ZYS Origin Luoyang, Henan, China

Product Description

       The ZYS precision angular contact ball bearings for spindles, have four size series,718,719,70 and 72. With the same inner diameter, the outer diameters and the widths of 718,719,70 and 72 series increase in turn.
       ZYS precision angular contact ball bearing with 15 ° (C) and 25 ° (AC) contact angles. As for the angular contact ball bearings, the bigger the contact angle is, the greater the axial load capacity is, but the lower the limited speed of bearings becomes. Therefore ,the spindle, with high speed and small axial load ,should adopt the 15 ° angular contact ball bearings,whereas the 25 ° angular contact ball bearing should be adopted.
        ZYS precision angular contact ball bearings with high-speed angular contact bearings (standard series), super-speed angular contact ball bearings, high-speed sealed angular contact ball bearings and high-speed spindle bearings.

Types and performances of angular contact ball bearing :

     ZYS precision angular contact ball bearings with high-speed angular contact bearings (standard series), super-speed angular contact ball bearings, high-speed sealed angular contact ball bearings and high-speed spindle bearings.

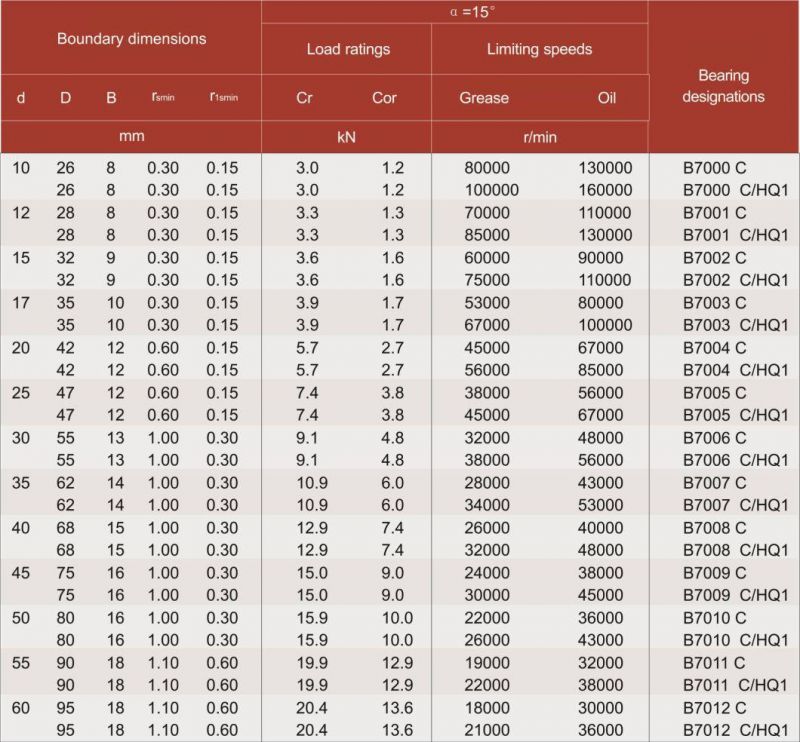

Dimension table of angular contact ball bearing:





ZYS Precision Bearing Quality Control and Assurance:

Austrian AICHELIN heat treatment equipment and long-life heat treatment process provide a strong guarantee for the continuous and reliable operation of bearings.

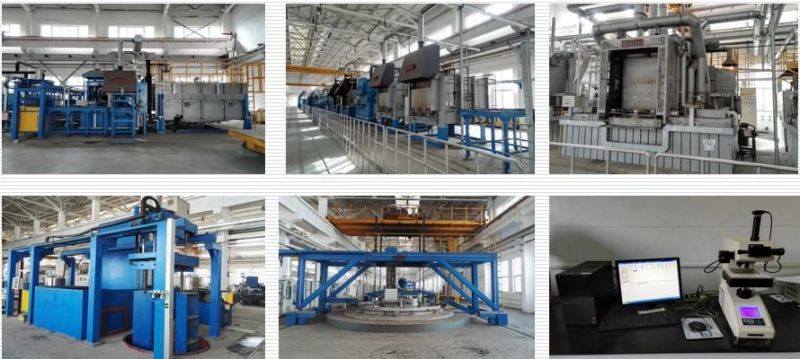

ZYS MANUFACTURING CAPACITY


ZYS Quality assurance

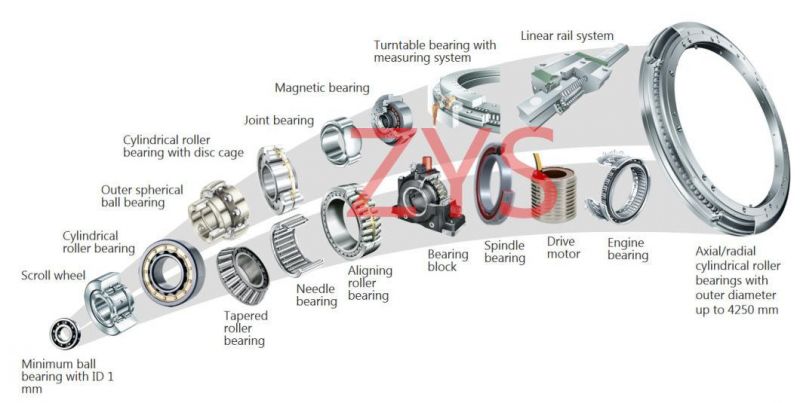

ZYS bearing products


ZYS Packing :




FAQ:

Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.


Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail  for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
