• Model NO.：NV-230
• Illumination Time：12h
• Cell Type：Lithium
• Charging Time (H)：6
• Usage：Garden, Street
• IP Rating：IP67
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Solar Panel：18V 60W
• LED：Bridgelux 30W
• Battery Type：Lithium Battery
• Battery Capacity：12V 21ah
• Lumen：3600lm
• Charge Time：6 Hours
• Install Height：6-7m
• Full Power：10 Hours
• Saving Model：3-5 Rainy Days
• Transport Package：Box
• Specification：Carton size: 1180*390*220mm
• Trademark：NOVA
• Origin：China
• HS Code：8504403090
• Production Capacity：10000

Basic Info.

Model NO. NV-230 Illumination Time 12h Cell Type Lithium Charging Time (H) 6 Usage Garden, Street IP Rating IP67 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Solar Panel 18V 60W LED Bridgelux 30W Battery Type Lithium Battery Battery Capacity 12V 21ah Lumen 3600lm Charge Time 6 Hours Install Height 6-7m Full Power 10 Hours Saving Model 3-5 Rainy Days Transport Package Box Specification Carton size: 1180*390*220mm Trademark NOVA Origin China HS Code 8504403090 Production Capacity 10000

Product Description

Description:

1. All in one Solar garden&street lights, New invention patent products.

2. From 6W to 120W

3. Integration design, put solar panel, Led lamp, battery and cotroller all in a box, without any cable.

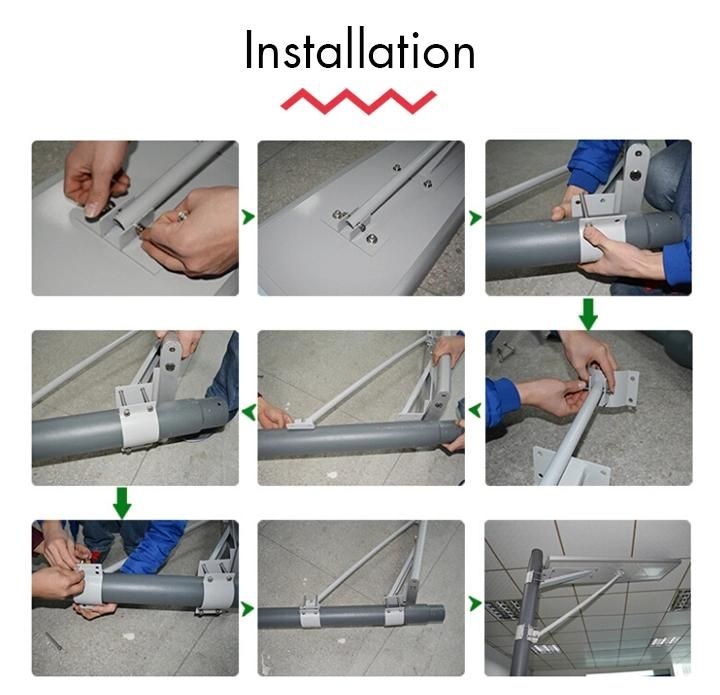

4. What you need to do when you receive them is to put them on the pole or wall, easy to ship,
    install and maintain.

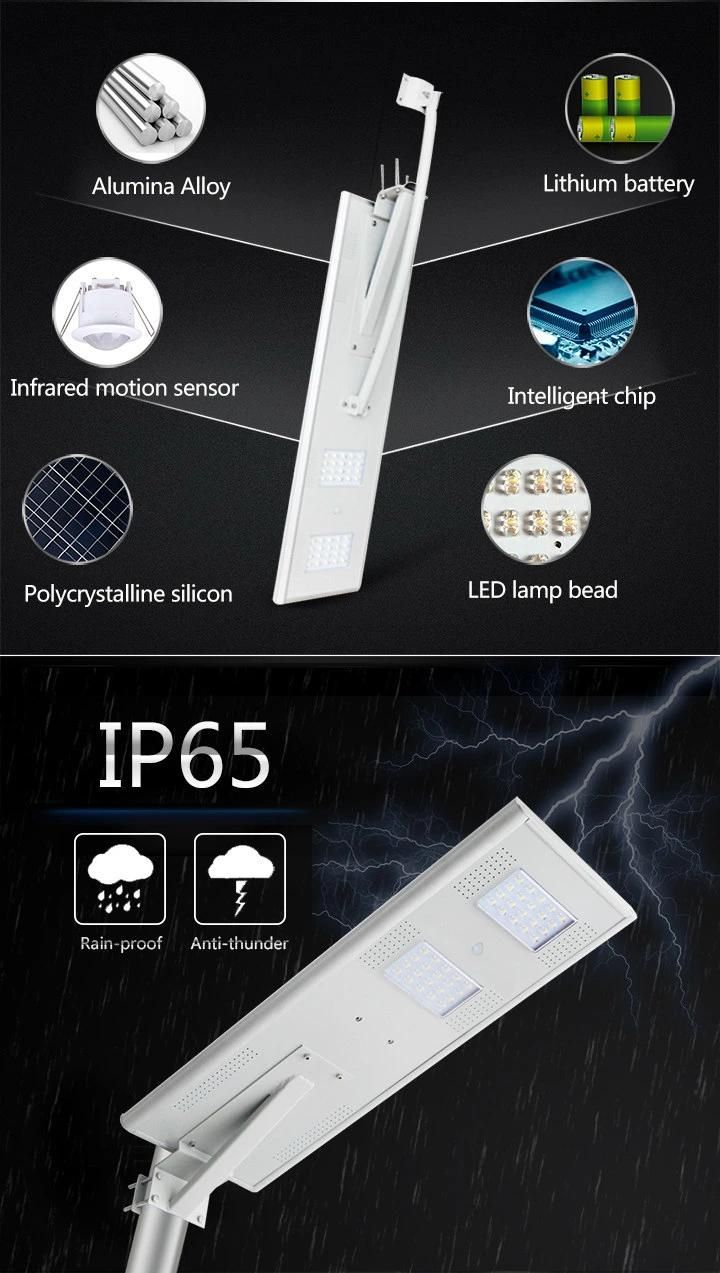

Features:

1.High capacity and long life Lithium battery,5-year  working life and high-temperature resistance.

2.Alumina Alloy is used for main structure in order to prevent dusty and corrosion.

3.Different power control according to time period, lower brightness when less people after midnight,
   in order to save energy and improve practicability.

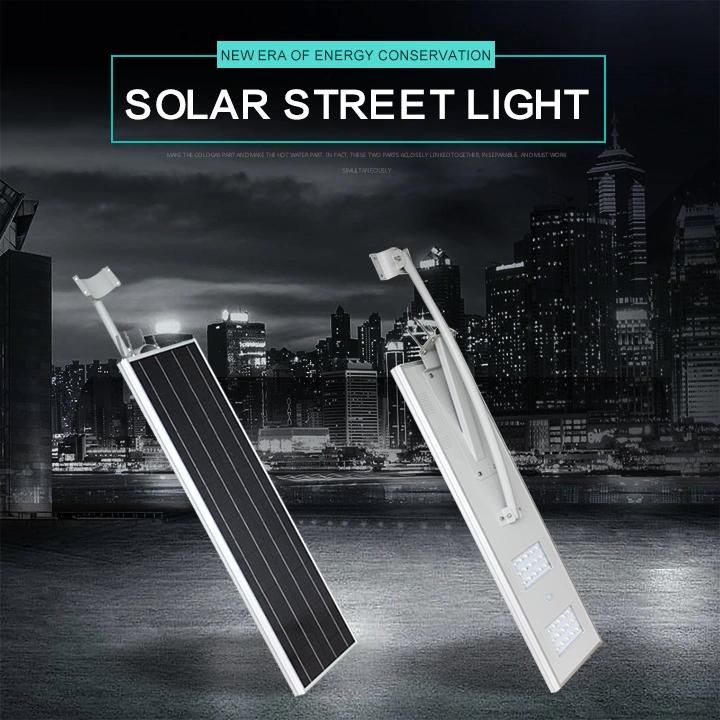

Product Name	Integrated solar street light
Model:	NV-230 (with motion sensor)
Solar panel Max power:	18V 60W (high efficiency imported Monocrystalline silicon )
Solar panel Life time:	25 years
Battery Type:	lithium battery 12V 21AH
LED Max power:	12V 30W
Led chip brand:	Bridgelux
Lumen (LM):	110-120lm/w
LED Life time:	50000hours
Lighting Viewing Angle:	120°
Adjustable Angle:	30°~150°
Charge time(by sun):	6-7hours (with enough strong shine)
Working TEMP( ºC )	-30~+65ºC
Warranty period:	3 years
Sensor distance	10m
Mounting height(m):	6-7m
Space between light(m):	20-25m
CCT (k):	6500k-7000k
N.W / GW.for carton:	14.8KG / 16.5KG
20GP container / 40GP container:	270pcs / 550pcs
Unit size	1120*305*140mm
carton size	1180*390*220mm
Working time :	The lamp attomatically turns on after sunset ,and off when sunrise.
Working mode:	During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power .

FAQ

Q1.Does your company also provide other solar products except inverter and solar
      charge controller ?

A:Yes, we also provide other solar products, like Inverter with solar charger, car inverter ,
    battery charger, battery protection switch ,MC4 Solar Connectors and tools .

Q2.How to choose the Power Inverter ?

A:Modified Inverter : lights , fan , computer ,laptop ,small refrigerator,pump
    Pure Inverter : Air conditioner , refrigerator,pump,cleaner , coffee maker , intelligent instruments

Q3.What is the delivery time?

A:For sample,within 3-5 days after receiving payment.
    For bulk order,usually in 10-15 days after receiving payment.

Q4.What is certification you got?

A:We have certification of ISO9001,CE,RoHS,FCC,ETL,TUV,UL.

Q5: How about your payment and shipment?

A:Payment: We accept T/T, Trade Assurance ,Western Union,Paypal etc.
Shipment: For sample order, we use DHL, TNT, FEDEX  etc.

Q6.Could you offer C/O?

A:Yes.We can prepare relative documents to foreign affairs office or other office
to apply for this certificate.We also supply Form A,Form B,Form E,Form F .

Q7.Does your company offer technical support?

A:We have a professinal technical support group for all the item sale and after -sale service.
