Sinter Hot-Pressed Turbo Dry Cuting Blade for Stone Materials/Diamond Tool/Cutting Disc
Pinghu Kaixin Plastic Industry Co., Ltd.- Blade Type：Turbine
- Manufacturing Process：Sintered
- Application：Stone
- OEM Service：Acceptance
- Suitable：Dry Cutting
- Transportation：Ocean, Land, Air
Base Info
- Model NO.：STBF
- Certificate：En13236
- Customized：Customized
- Transport Package：Carton
- Specification：230x10x22.23mm
- Trademark：COREDIAM
- Origin：China
- HS Code：82023910
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. STBF Certificate En13236 Customized Customized Transport Package Carton Specification 230x10x22.23mm Trademark COREDIAM Origin China HS Code 82023910 Production Capacity 10000PCS/MonthProduct Description
1.IntroductionThe manufacture art of the blade is sinter hot-pressed. The diameter is 230mm, the segment height is 10mm. This type of blade can be widely used in cutting granite, marble and other stone materials with good efficiency. It can be installed on the angle grinder, circular saw and tile saw. MOQ is 100pcs/size. Turbo segment for better cooling and better dust removal, with fast, smooth cutting and long life. The wave steel core improves blade rigidity, reduces friction, avoids wobbling during cutting and it the better removal of filings. Special arrangement holes are for better cooling.
2. Features:
- Universal dry cutting blades.
-Turbo segment for better cooling and better dust removal, with fast, smooth cutting and long life.
-The wave steel core improves blade rigidity, reduces friction, avoids wobbling during cutting and it the better removal of filings.
- Special arrangement holes are for better cooling.

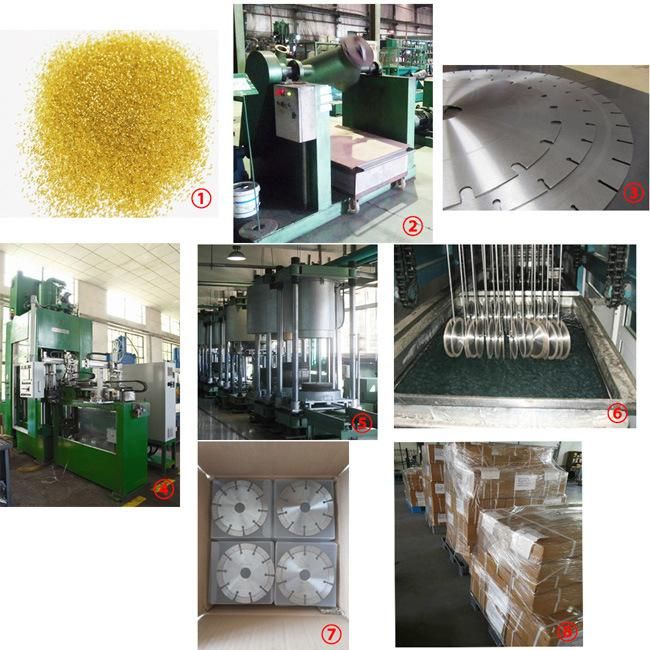

3. Production process.
Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch
4. Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.
If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.
5. Corediam Service
We Corediam provide full diamond blade solution for your project, offering customized diamond blade dependent on the demand of your stone cutting project.
Specification for reference: (others also availiable as per required)
| Item No. | Diameter | Segment Height | Segment Width | Arbor |
| STBF12510 | 125mm | 10mm | 2.2mm | 22.23mm |
| STBF15010 | 150mm | 10mm | 2.2mm | 22.23mm |
| STBF18010 | 180mm | 10mm | 2.5mm | 22.23mm |
| STBF20010 | 200mm | 10mm | 2.5mm | 22.23mm |
| STBF23010 | 230mm | 10mm | 2.7mm | 22.23mm |
