• Model NO.：CGWL
• Transportation：Oocean, Land, Air, Express
• OEM Service：Available
• Transport Package：Carton, Pallet
• Specification：180x4.5x22.23mm
• Trademark：COREDIAM
• Origin：China
• HS Code：68042190
• Production Capacity：5000 Pieces,Month

Basic Info.

Model NO. CGWL Transportation Oocean, Land, Air, Express OEM Service Available Transport Package Carton, Pallet Specification 180x4.5x22.23mm Trademark COREDIAM Origin China HS Code 68042190 Production Capacity 5000 Pieces/Month

Product Description

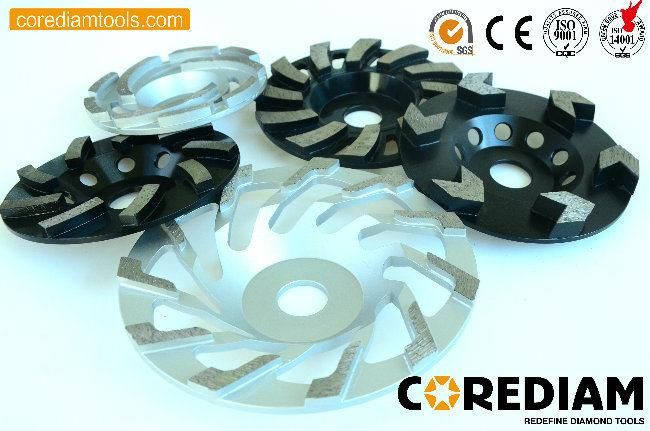

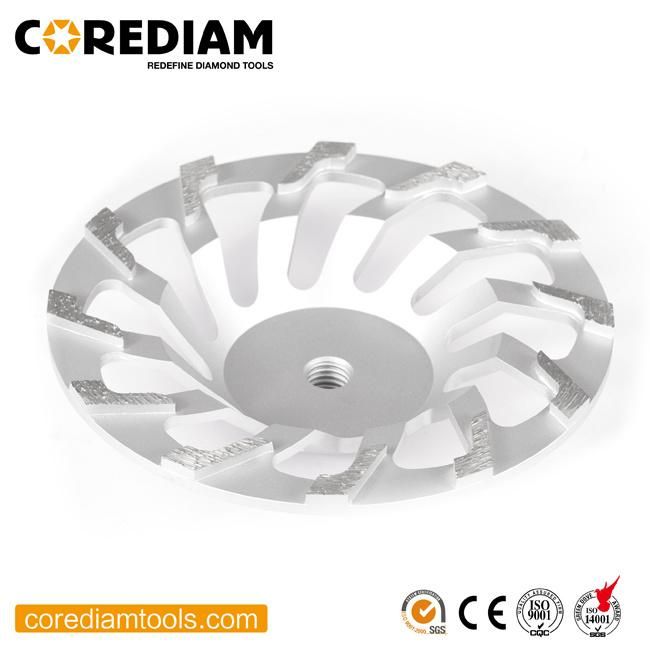

1.L-segment diamond cup wheel introduction
This type of cup wheel is with L segment, the manufacture of art is silver brazing. Diameter ranges from 4inches to 7 inches, segment height is 4.5mm. It can be widely used in rough grinding different kinds of concrete and masonry materials with superior efficiency. The diameter is 180mm, the segment number is 12. The quality level is premium.



2. Features:
- Light and easily-carried.
- Fast grinding speed and long grinding life.
- Rough surface grinding different kinds of concrete and masonry materials with superior efficiency
- A high-performance grinding product, with excellent efficient and reasonable lifespan.
- Specially designed holes help to dissipate heat and drain during the grinding process.



3. Delivery time

1 week for sample order, and  2-3 weeks for batch orders.

4.Specification


Item No.	Diameter	Segment No.	Segment Thickness	Arbor
CGWL10504	105mm	8	4.5mm	7/8",5/8"-11,M14
CGWL11504	115mm	9	4.5mm	7/8",5/8"-11,M14
CGWL12504	125mm	10	4.5mm	7/8",5/8"-11,M14
CGWL15004	150mm	11	4.5mm	7/8",5/8"-11,M14
CGWL18004	180mm	12	4.5mm	7/8",5/8"-11,M14

5. Packing & Delivery.
