• Production Capacity：50000PCS,Year
• HS Code：843710

Model

Capacity

Power (kw)

Dimension (L*W*H,mm)

Weight

(without motor)

SB-10

1000kg/h

11

760*730*1750

250kg

SB-30

1200kg/h

15

1100*750*1800

300kg

SB-50

2000kg/h

22

2400*1100*2100

580kg

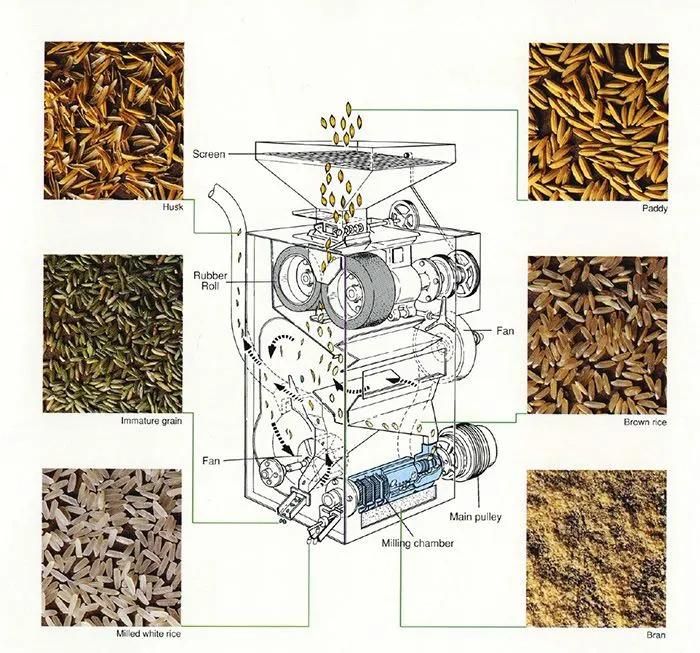

Working Principle




A vibrating screen attached in the feeding hopper, will remove large impurities such as straw, rachis branches, etc. from the paddy before husking.

Between the feeding hopper and husking chamber a special magnet is installed to remove ferrous particles before husking.

The husking is done by rubber rolls which rotate in opposite directions at different speeds. The paddy is husked as it passes through these rubber rolls.

The integral aspirator separates the husks, immature grains and brown rice by a fan. Practically all the husks and immature grains are discharged outside of the machine while the brown rice is fed into the milling chamber.

In the milling chamber the brown rice is milled into white rice by the friction method. This method utilizes a milling roller and hexagonal screen for whitening.

The bran is removed through the slot of the hexagonal screen by air injected through the milling roller by an independent fan.

The injection air not only removes the bran but also helps to clean and cool the rice during the whitening process.




Packing And Delivery






For safety transportation purpose, we use standard exporting packing for all the machines. Packing method such as wood box/tray, steel box/tray etc, to ensure the machine will be reached to you safely.
