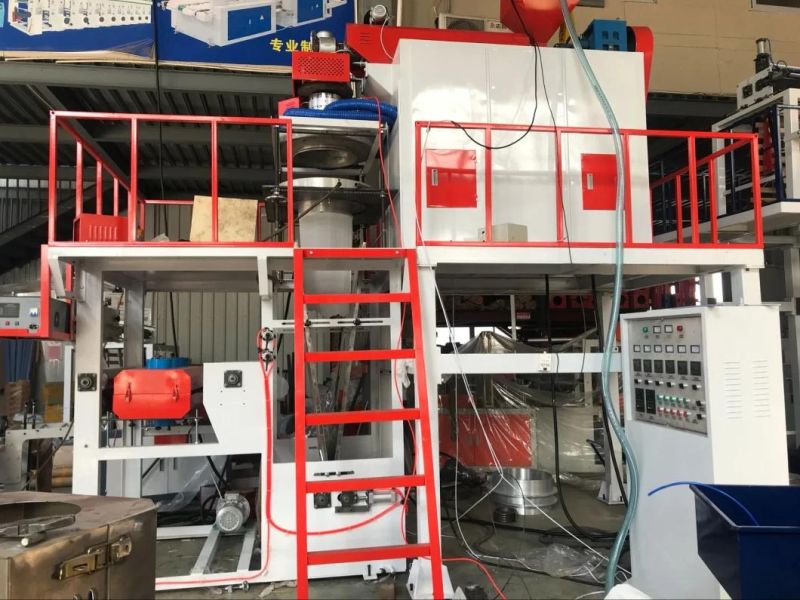

PP Rotary Die-Head Blowing Film Line (SJ55-75)
Nanyang Yukang Photonics Co., Ltd.Base Info
Description
Basic Info.
Model NO. SJ55-75 Computerized Non-Computerized Machine Weight 1.9/3.0/4.0 T Certification CE, ISO9001:2008 Thickness of Film: 0.02-0.01mm 0.01-0.1mm Extrusion Output 35-75 Kg/H Screw L/D 28:1 Transport Package Wooden or as Required Specification CE Trademark YUNBANG Origin China(Mainland) HS Code 8477309000Product Description
USEMainly pack audio-video tape, toy, disc, magazine, glass, advertising material, camera, painting brush, shoes, sweet food and soon.
Feature
1. Composed by one squeezing machine, joint squeezing rotary die head, system of wind cooling and water cooling, double axial film, motor control system and etc. Parts.
2. Die head and cooling wind ring rotates continuously in order to ensure drawing in and rolling up of film is even and smooth.
3. (φ 100-200) change of die head, applying to blow film with different specifications.
4. Dispose various functional elements on the spot according to the selection of consumer.
Type | SJ-55 | SJ-60 | SJ-70 |
Diameter of Screw mm | Φ55 | Φ60 | Φ70 |
Max.Layflat Width mm | 100-550 | 200-600 | 300-800 |
Film Thickness mm | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max.Output(kg/h) | 40 | 45 | 65 |
Screw L/D Ratio | 28:1 | 28:1 | 28:1 |
Power of Main Motor(kw) | 11 | 15 | 18.5 |
Power of Traction Motor(kw) | 1.1 | 1.5 | 1.5 |
Overall Dimensions(L×W×H)mm | 4500×1100×3300 | 4800×1100×3300 | 5000×1500×3300 |
Weight(T) | 1.9 | 3.0 | 4.0 |
