Basic Info.

Model NO. SJ- Machine Weight 1.5t Certification CE, ISO9001:2008 Screw Length (L/D) 30:1 Film Width(mm) 400-1000 Film Thickness(mm) 0.006-0.10 Max.Extrusion Output (Kg/H) 80kg/Hour Die Size(mm) Φ100/150 Transport Package as Require Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/Month

Product Description

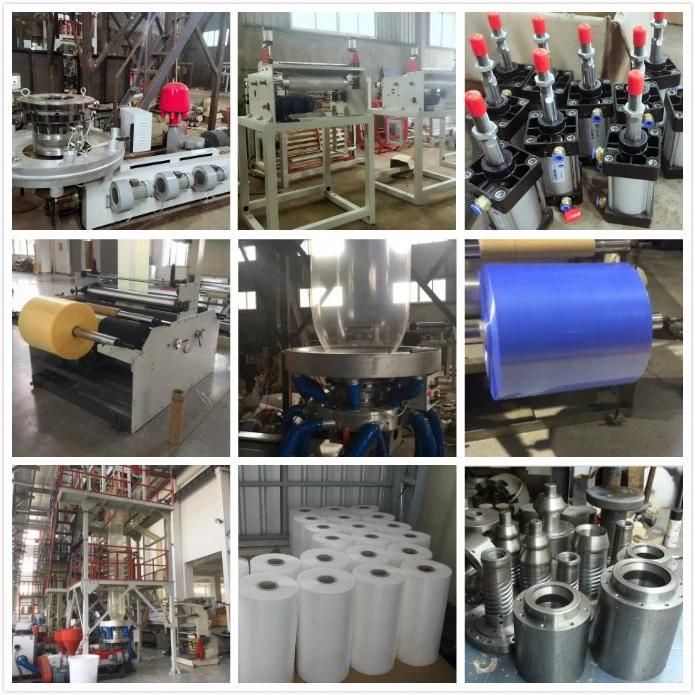

Machine Introduction

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

 Machine Parameters

Model	SJ-50/HMB600	SJ-55/HMB800	SJ-60/HMB1000	SJ-65/HMB1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30:1	30:1	30:1	30:1
Film Width(mm)	200-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.006-0.10	0.006-0.10	0.006-0.10	0.006-0.10
Max.Extrusion Output (kg/h)	60	70	80	90
Die Size(mm)	Φ60/100	Φ80/120	Φ100/150	Φ100/200
Cylinder Cooling (Kw)	0.25	0.25X1	0.25X2	0.25X2
Driving Motor(kw)	15	18.5	22	30
Total power(kw)	28	36	42	48
Cover Dimension(m)	5.0*2.1*3.8	5.0*2.3*4	5.5*3.3*4.2	5.8*3.6*4.5
Weight of Machine(kg)	2000kg	2500	2800	3000
