Ab/ABA/ABC/ PP Sheet Extruder
BEHAPPY CRAFTS (SUZHOU) CO., LTD.Base Info
Description
Raw Material
PP/PE/PS (New or Reclaimed)
Suitable Sheet Thickness
0.3-2.0mm (Adjustable Extent)
Max.Width Of Finished Sheet
720mm
Max. Capacity20
280Kg/H
Diameter of screw
Φ110/Φ80/Φ65
Length-Diameter Ratio of Screw
32:1
Main Motor Of Extrusion
55kw/30kw/22kw
Gear Box
250 /173 /200 Model (Hard Tooth Surface)
T-Die Width
850mm
Die Lip Pitch Range
0.3-2.0mm
Hydraulic Net-change Motor
2.2Kw
Three-roller Diameter
Φ350*850mm (Up,Middle,Down)
Three-roller Transmission Motor
3Kw*3pcs
Rewinding Motor
3Kw
Voltage Support
3Phase 380V, 50Hz,4Lines
Work Power
About 90Kw
Total Power
About 250Kw
Capacity of Water Consumption
18-22 M3/H
Machine Weight
About 10000Kgs
Overall Dimension
15*2.5*2.5mm
Three Screws

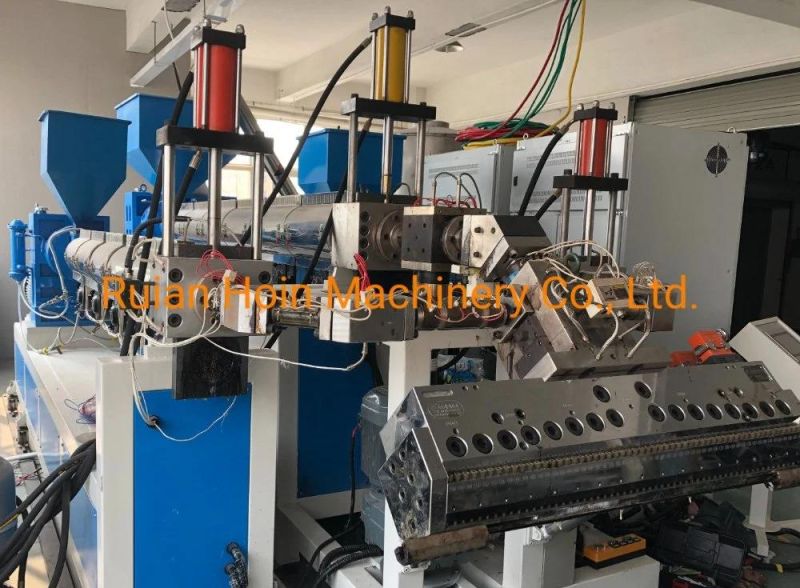

Plastic Sheet Extruder Is Running
