Basic Info.

Model NO. RBT Specification 4m*1.4m*1.2m Trademark HOIN Origin Ruian/Wenzhou/China Production Capacity 10sets/Months

Product Description

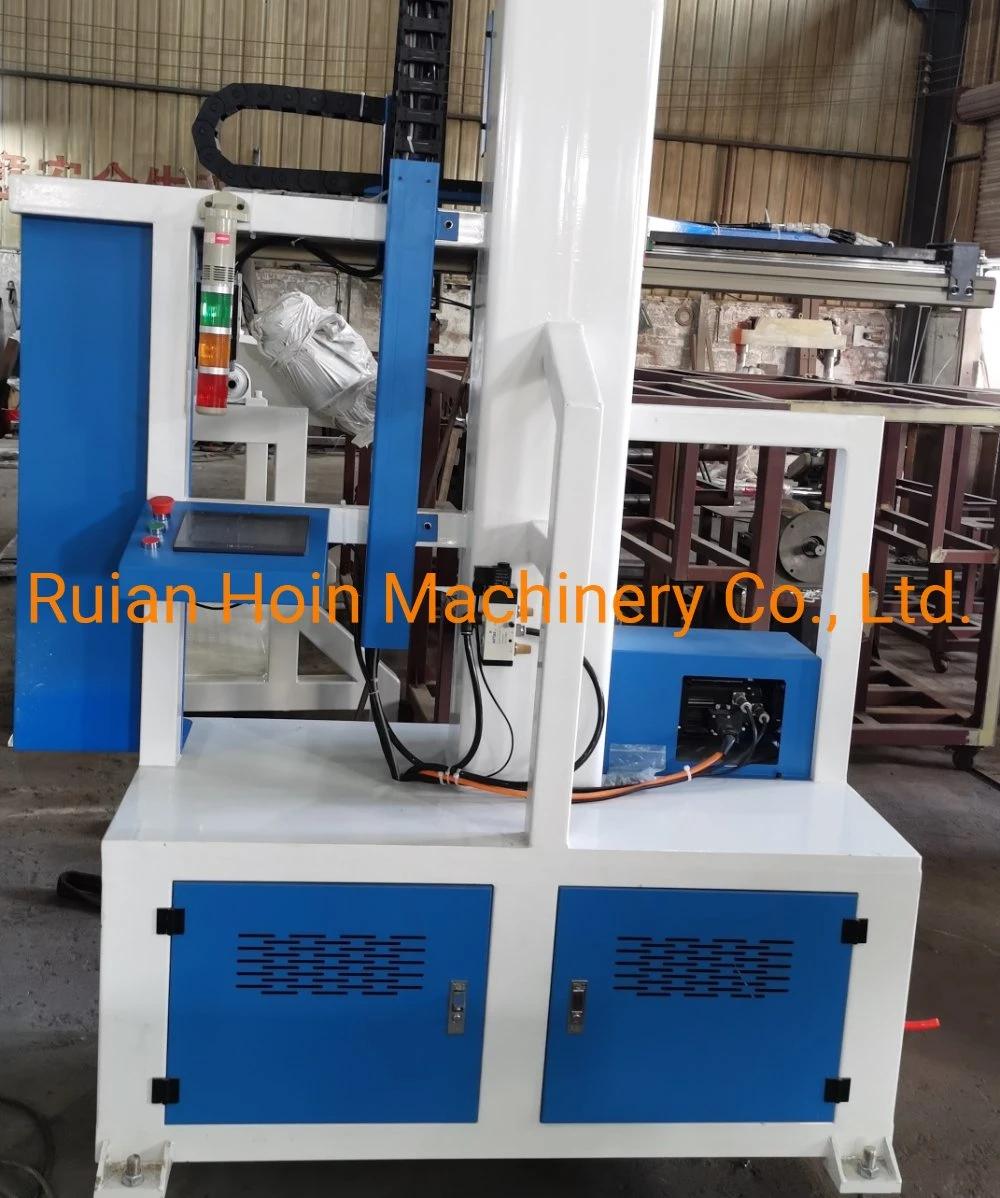

Robot Stacking Machine
A.SPECIFICATION
The machine can connect with the thermoforming machine to stack cups.
B.MAIN TECHNICAL PARAMETER

Machine function:	For Stacking Cups
Type	Servo Motor
Vertical stroke	1400mm
Crosswise Stroke	750mm
Max load (with tool)	3Kg
Minimum Take Time	0.7 Sec
Dry Cycle Time(without tool)	1.7 Sec
Drive System	Pneumatic
Working Air Pressure	0.5Mpa
Ower Consumption	1.8KVA
Conveyer Table(L*W)	3.5m*0.9
Power	Ac 220V   50/60HZ
Net Weight	350kg

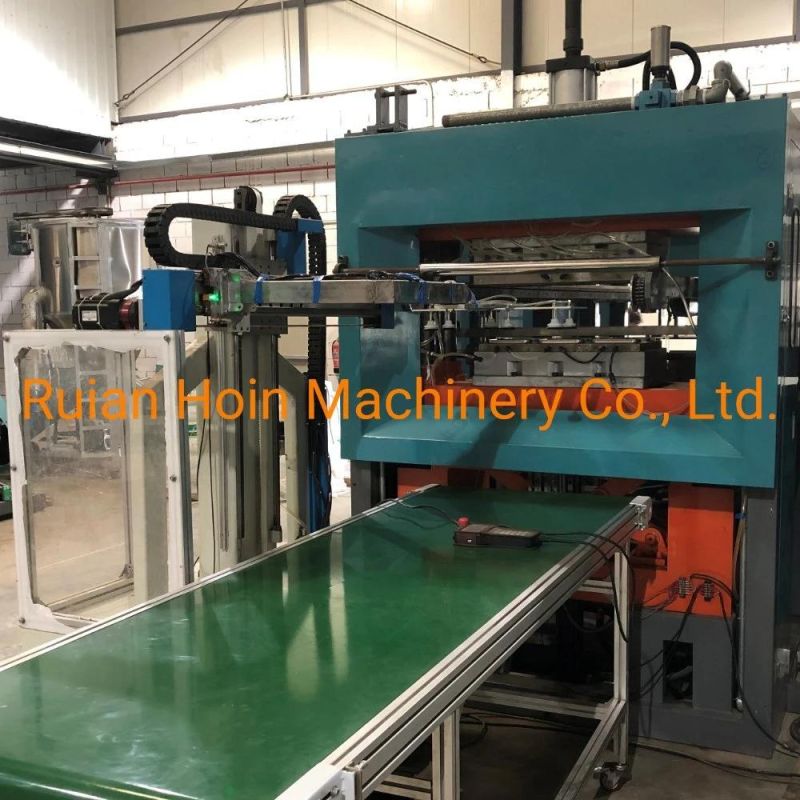

C.MACHINE DETAILS Robot Stacking Machine And Thermoforming Machine
D.MORE PRODUCTS
1.Plastic Sheet Extruder(Single Screw/Double Layers)
2.Plastic Thermoforming Machine(Cup/Lid/Bowl/Tray/Container Making Machine,etc...)
3.Thermoforming Moulds(Cup/Lid/Bowl/Tray/Container Mould,etc...)
4.Plastic Cup Printing Machine & Cup Packing Machine & Cup Stacking Machine
5.Film Blowing Machine & Flim Printing Machine & Bag Making Machine
6.Other Auxiliary Equipments:Mixing Machine,Material Feeding Machine,Cooling Tower,
   Robot,Cup Stacking Machine,Hydraulic Forlift,Chiller,Crushing Machine,etc...
