Model NO. PE-655/1372 Condition New Extruder High-Efficient Output Single Screw Extruder Electrical Elements ABB Inverter, Simens PLC and Contactors Calibration Method Vacuum and Water Sparying Cooling Cutting Method Planetary Cutting Transport Package Standard Package Specification Pipe diameter from 420mm to 1680mm Trademark HSD Origin Qingdao, China HS Code 8477209000 Production Capacity 1000 Unit/Year

Product Description

HDPE Thermal insulating Jacket Pipe Extrusion Line

---Pipe diameter range: 110-600mm 650-1372mm 960-1680mm
---The extrusion line comprise equipments and devices as below,


1set Vacuum loader

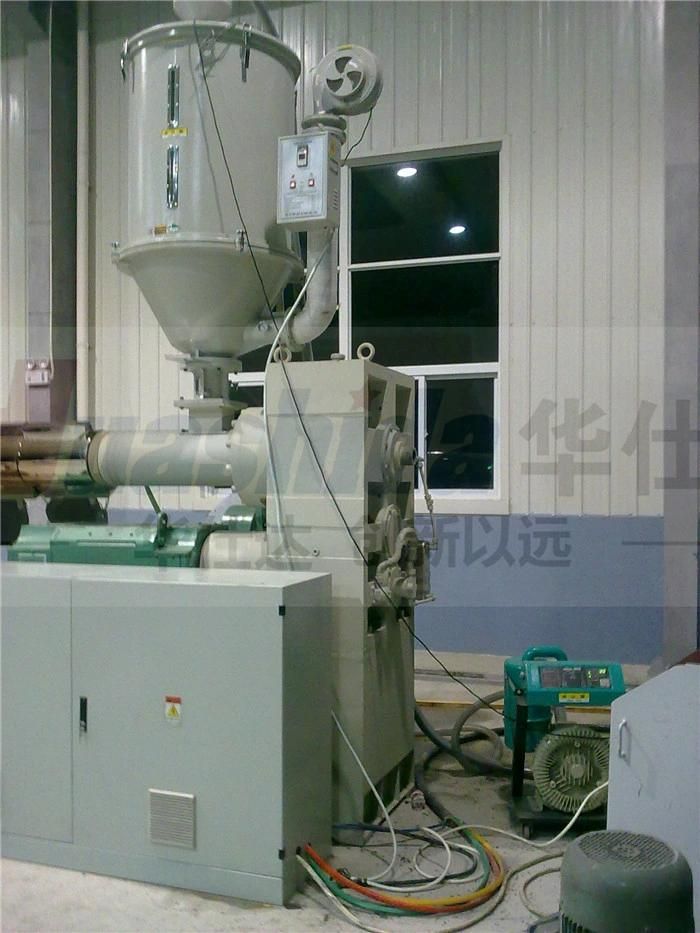

1set Hopper dryer

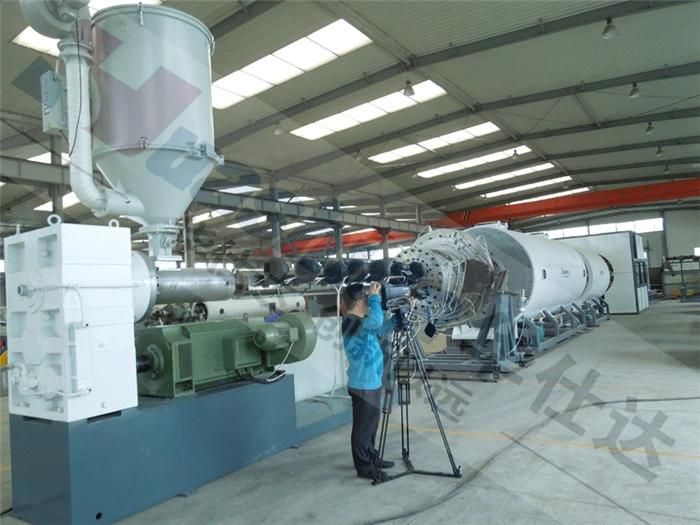

1set High-effeciency single screw extruder
1set 25/25 single screw extruder for mark line

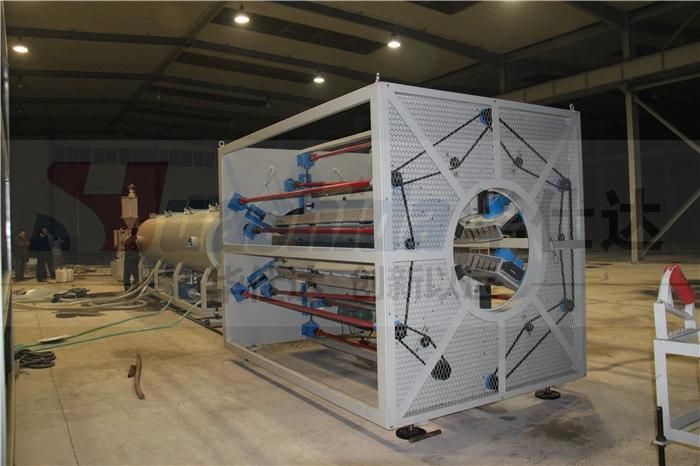

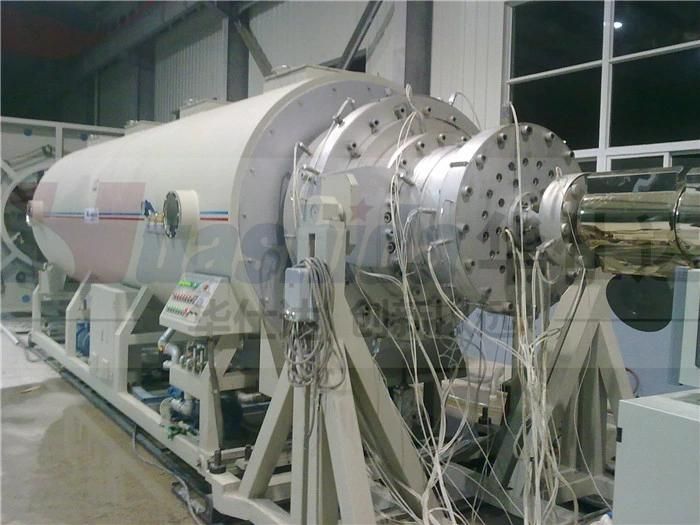

1set Vacuum calibration table

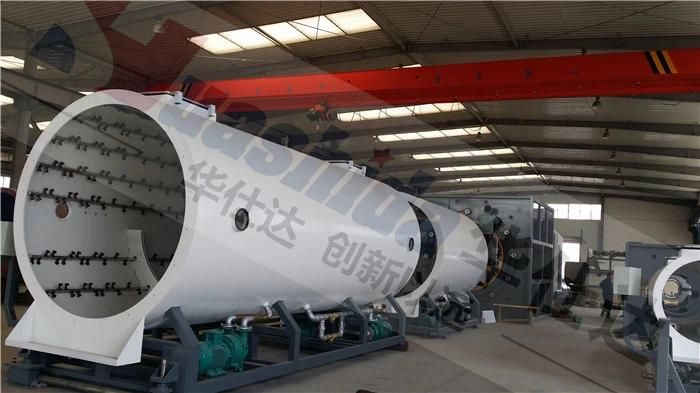

1set Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker





I. Pipe Usage
---HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.
II. Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
For example
SJ-75/33---250-350kg/h
SJ-120/33---700-900kg/h
SJ-150/33---800-1200kg/h
---Compared with inflating method (internal pressure method)
1. For 24 hours working, it reduces 2-3 workers for each shift.
2. There is much waste pipe and material, no need workers to crush waste material.
3. High-effeciency. Take Dimater 960mm as an example, Output is approximately 60 PCS of 11.6meters pipe, it is much higher output than that of inflating method.
4. Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
5. No need trim edge, once forming.
III. Main machine- High-effeciency single screw extruder
---Single screw is with barreir & mixing head; Barrel is new model with slotting (channel), Both make security of good jellification, large output and stable performance.
IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer; S requirement, to be with PLC, or without.
V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- Siemens AC contactors

Style	PE-110/600		PE-655/1372	PE-960/1680
Main extruder	SJ-75/33		SJ-120/33	SJ-150/33
Pipe diameter	Φ110-600mm		Φ 655- 1372 mm	Φ 960-1680mm
Capacity	250-350kg/h		700~900 kg/h	800-1200kg/h
Installed power	160kw		440 kw	580kw
Length	28m		32 m	45m
