Basic Info.

Model NO. jacke dia. 110-600mm Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Extruder Sj75/33 Output 300-350kg/H Total Power 160kw Pipe Dia.Scope 110, 125, 140, 160, 180, 200, 225, 250, 265, 315, 365 Delivery Time 40 Work Days Legth of Processing Line 24000mm Usage Water / Oil/Gas Supply Pipeline Application Pipeline Keep Temperature Transport Package Standard Package Specification Dia. 600-1200mm Trademark HSD Origin Qingdao China HS Code 84772090 Production Capacity 50 Units/Year

Product Description

PU Foaming pre-insulated Pipe HDPE Jacket /shell/casing Plastic Extruder 110-600mm





Commercial Name:
HDPE black Jacket pre-insulated think wall plastic pipe extruder line
Technology:  Vacuum Calibrating Method
Advantage:
The main equipment of the production line adopts Germany's most advanced screw technology, which is highly efficient and energy-saving.
The feeding section adopts a forced feeding system to make the output higher.
The head adopts KraussMaffei screw head technology, and the head weighs 12 tons. The operation is simple.
The vacuum sizing system makes the operator comfortable and comfortable;
 the rotating planetary automatic cutting system is perfect;
the pipe cutting is processed online once, without the need for secondary trimming, saving time and effort.
In a nutshell, the equipment has a simple production process, uses fewer people, and has high production efficiency.
The daily output can reach more than 20 tons. With high product yield and less waste, it can increase the benefits of the manufacturer. It can produce one-time processing and online production without secondary processing.
The production line adopts a PLC computer centralized control system, and the production is stable and reliable.

Pipe  Application:
PE Pipe produced by this line, is with excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on.

It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.

Compose of Processing Line
1. Automatic Vacuum feeder
2. Hopper dryer
3.High efficiency single screw extruder
4. die Mold
5. calibrating sleeve
6. vacuum calibrating water tank

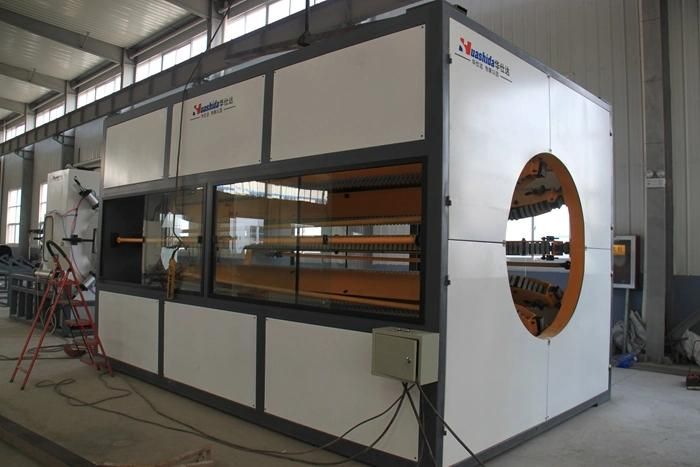

7.Hauling Machine

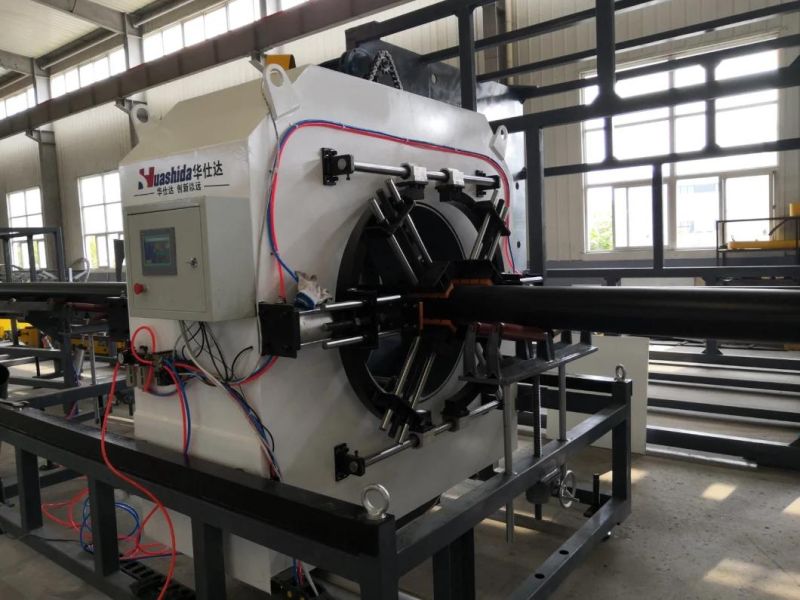

8. Cutting Machine
9. Carrier
10. PLC Aotumatic Control System

Main Specifiction:

Style	PE-110/600	PE-365/760	PE-655/1380	PE960-1680
Main extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ 365-Φ 760 mm	Φ 655-Φ 1380 mm	Φ 960-Φ 1680mm
Capacity	250-300kg/h	400~500 kg/h	850~950 kg/h	900-1100KG/H
Installed power	160kw	420 kw	480 kw	580KW
Length	35m	36 m	40 m	48 M

1. Automatic Vacuum feeder

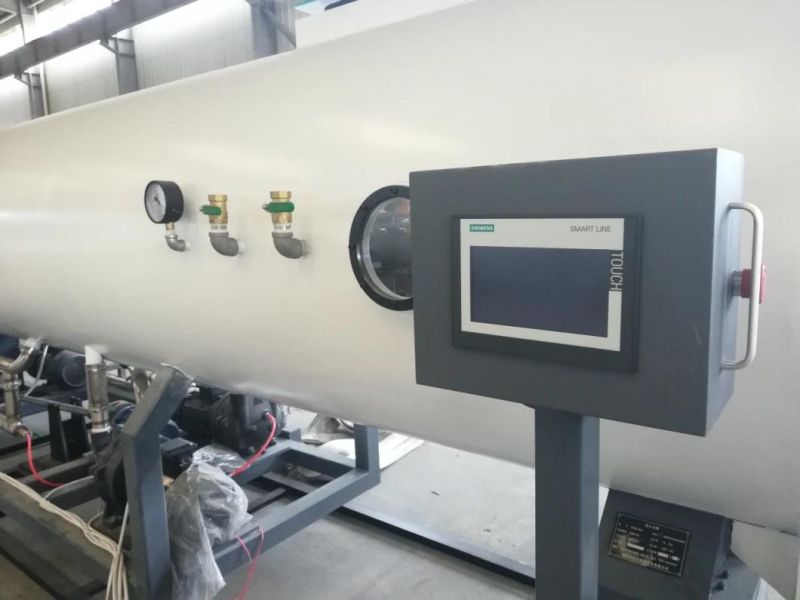

2 vacuum calibrating water tank

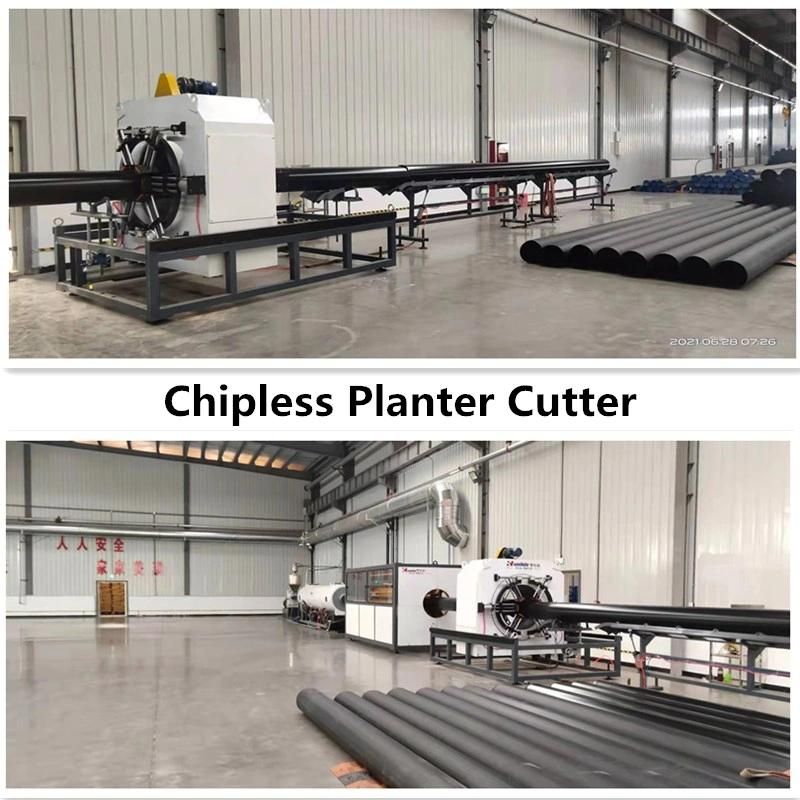

3. Cutting Machine

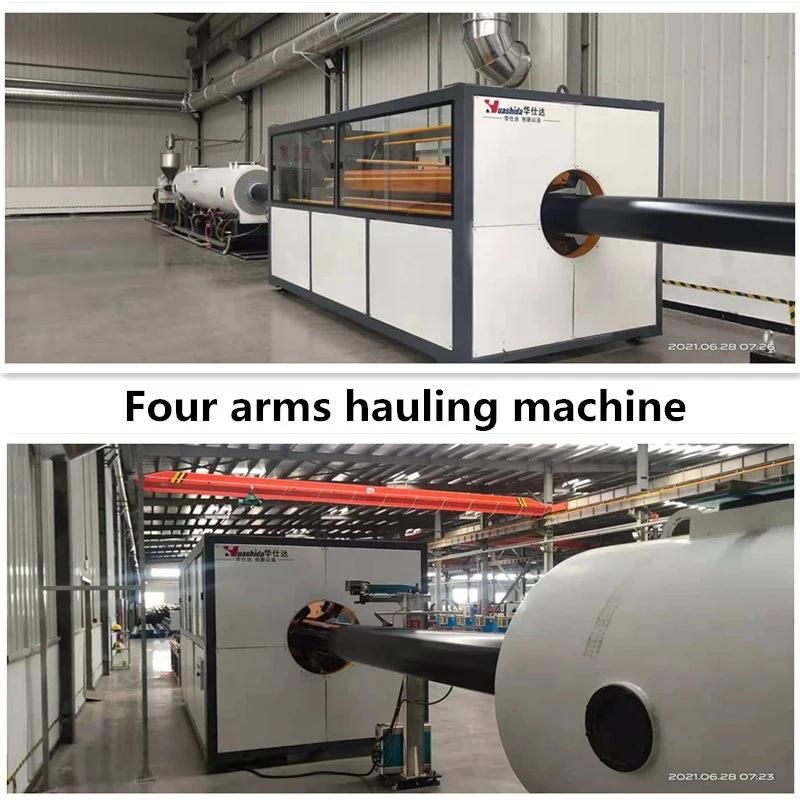

3. Hauling Machine

If you have interesting for our pruduction line you can contact with us.

Qingdao Huashida Machinery Co., Ltd is one of the top manufacturers of plastic extrusion machines in China, specialized in dealing with Steel pipe in terms of anticorrosion and insulation technology, R&D of the coating technique, design and manufacture of the equipment for coating, products and materials, researching and development of plastic extrusion equipments, especially of Vacuum Calibrating method PE insulation jacket pipe extrusion line, and PE hollow wall spiral pipe production line, PE PP sheet extrusion line, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.
Up to now, We have successfully entered the oversea markets of Russia, Iran, UAE, India, Belarus, Kazakhstan and son on. Our pipeline production line is nearly 50sets at home and abroad.

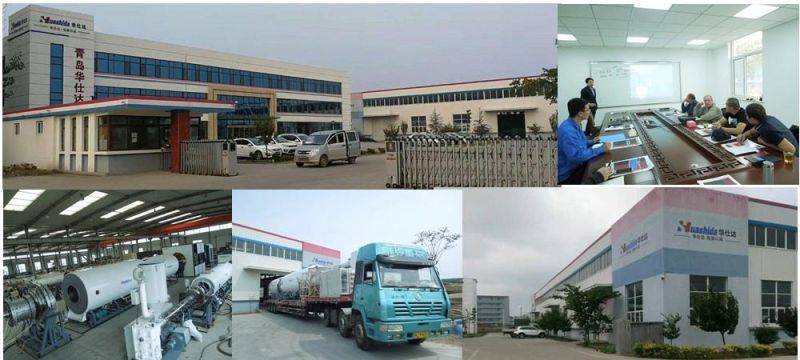

HUASHIDA Factory located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have obtained more than 10patents and many industry certifications at home and abroad. HUASHIDA company has high qualified and experienced teams for reaching& designing, manufacturing and site operation.
We have reliable products of different models because of our powerful making capacity. We can satisfy our customer's special need because of our outstanding R&D and design capacity. We can offer our user with timely and convenient techniqual support because of our perfect after-sales service.

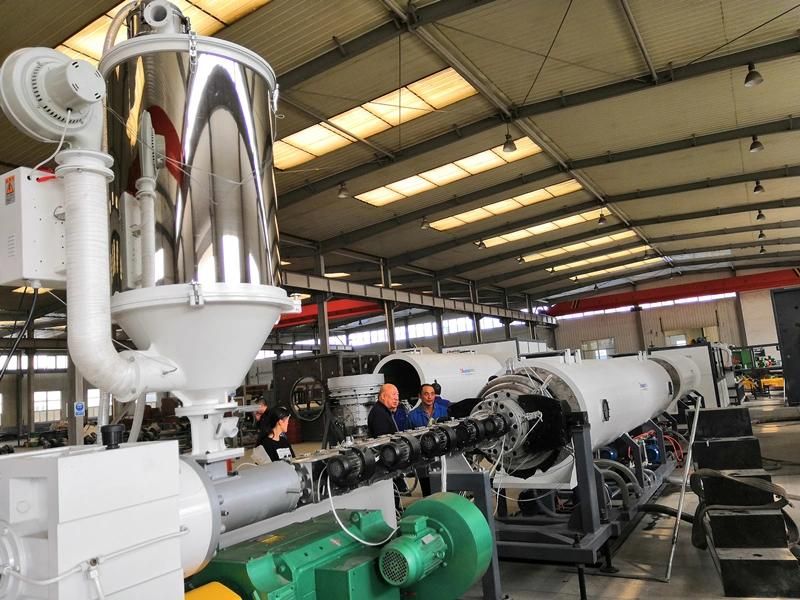

insulation pipe shell machine workshop
