Basic Info.

Model NO. XYJ-3/120 Condition New Transport Package Wooden Crate Specification 1680*1100mm Trademark CHAOYING Origin China HS Code 8453800000 Production Capacity 50 Sets/Month

Product Description

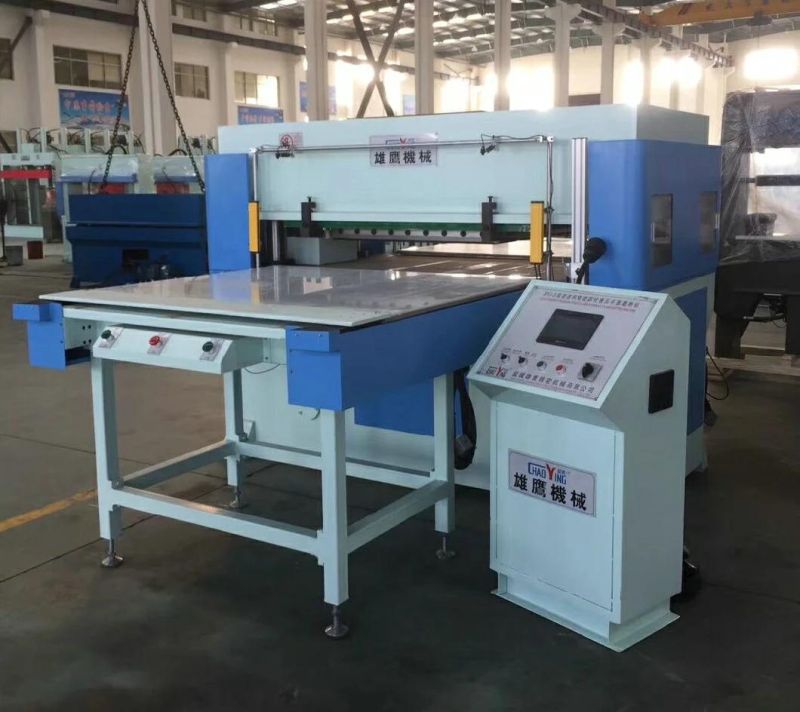

LVT PVC WPC stone flooring board making machine
Use and character
It is suitable for cutting all kinds of floor & wall decorative materials ( such as EVA floor , PVC anti-static floor , asphalt floor ,
rubber floor , carpet  and so on ) into large pieces of finished product batch production .
1.PLC touch screen program control , it has two kinds of cutting die setting mode ( automatic and manual ) for optional ;
2. The operation is labor-saving and simple, with low malfunction, strong cutting force and high cutting
speed.
3. Equipped with automatic pick-up device , it can save the worker labor and enhance the working efficiency ;
4. Equipped with wo Red-ray location device , it is helpful to put the board on the accurate place on cutting
area ;
5. We can make the special available worktable size as per customer's need and install the water cooler as
per customer's request ;
Technical specification

Maximum cutting force	150T /200T
Travel adjustment range	0-200mm
Range between the working tables	80-280mm
Size of the upper pressing board	1680× 1100mm
Size of lower worktable	1680× 1120mm
Motor power	11kW/15Kw
Overall dimension	2380× 1850× 1900mm
Total weight	6000KG

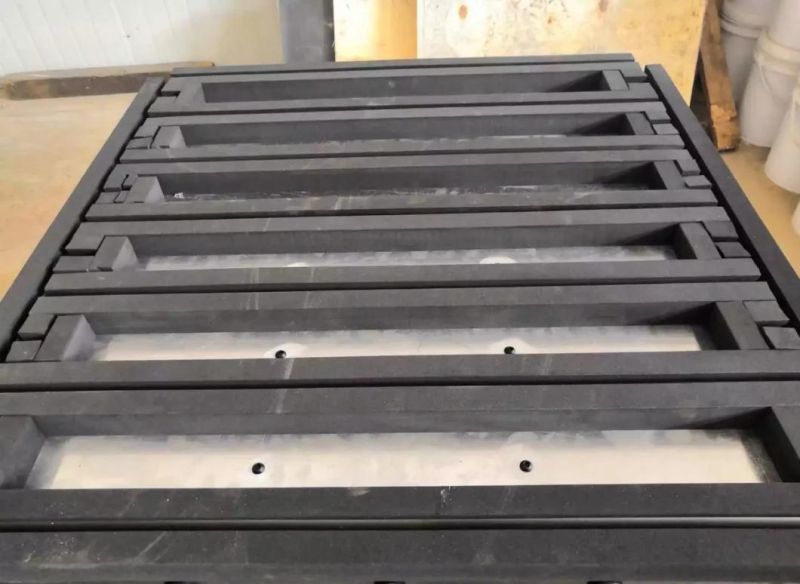

Special cutting mold :

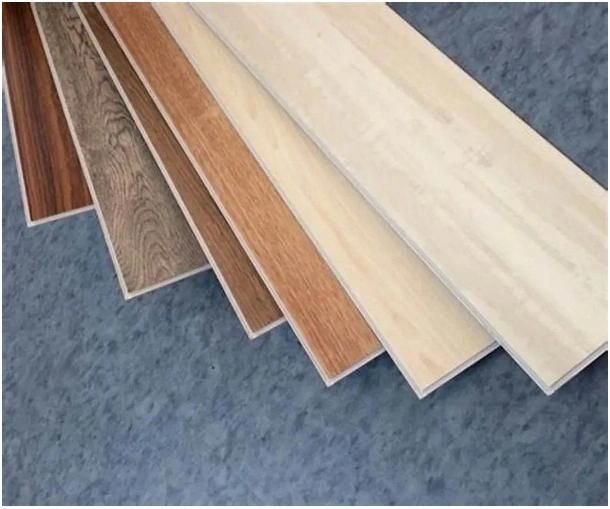

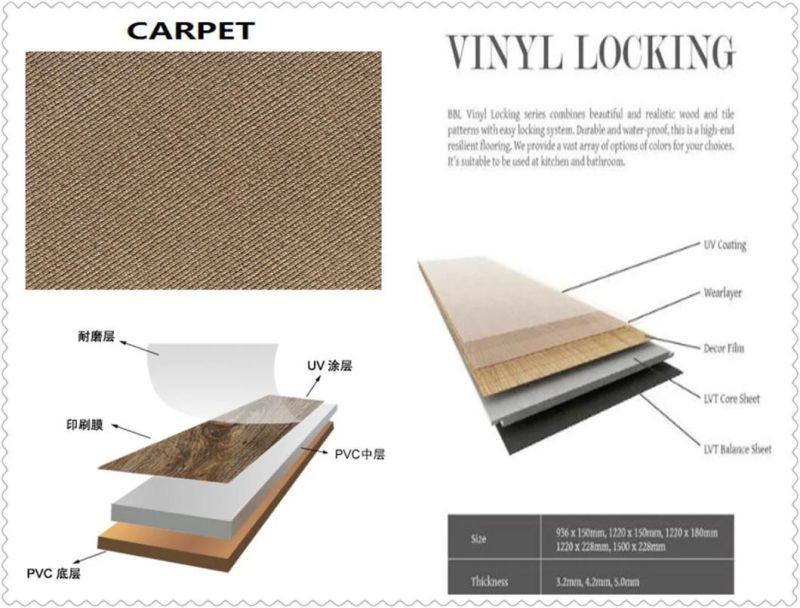

Machine applicable Range  :

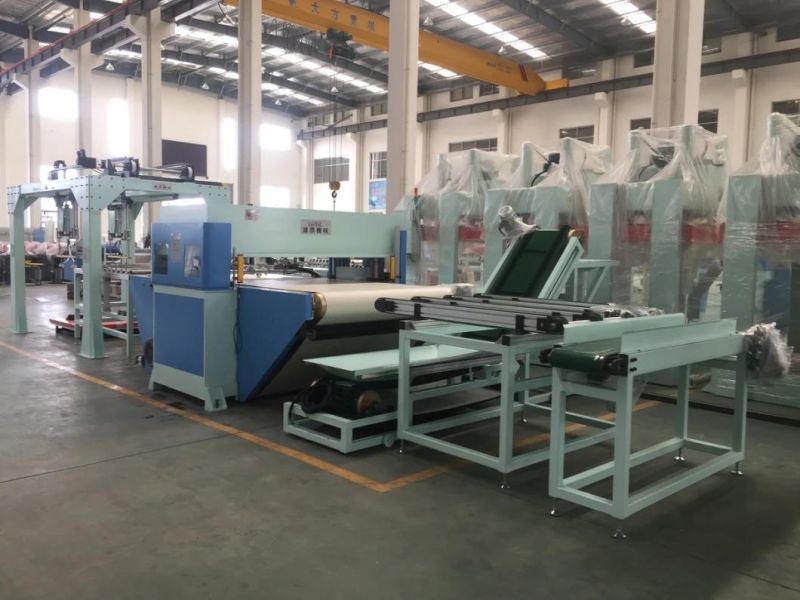

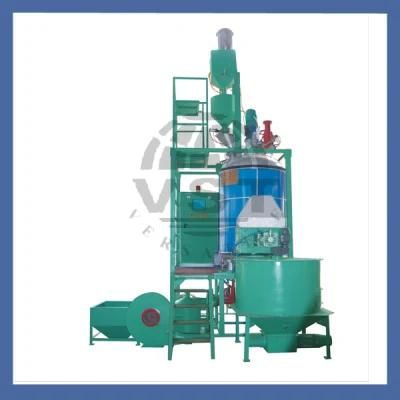

Relative machines :

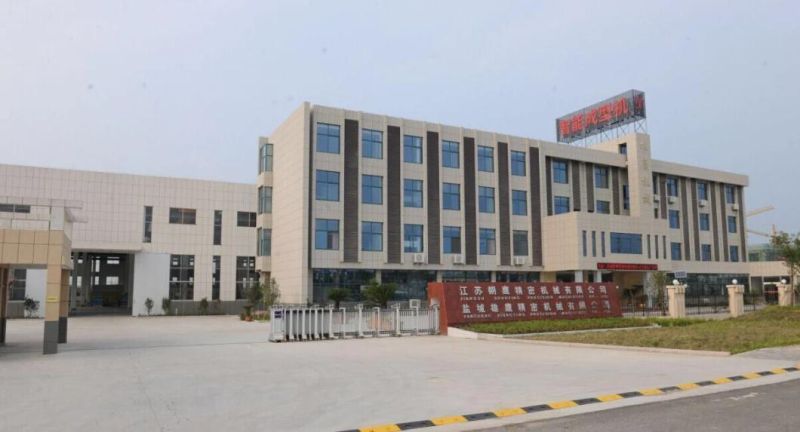

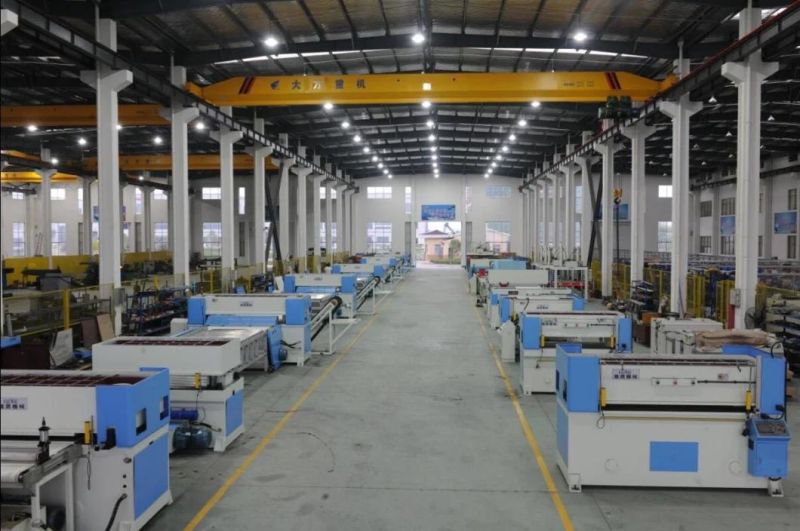

Factory views :

Attending Fairs :




Customer's visiting :
Certificates :

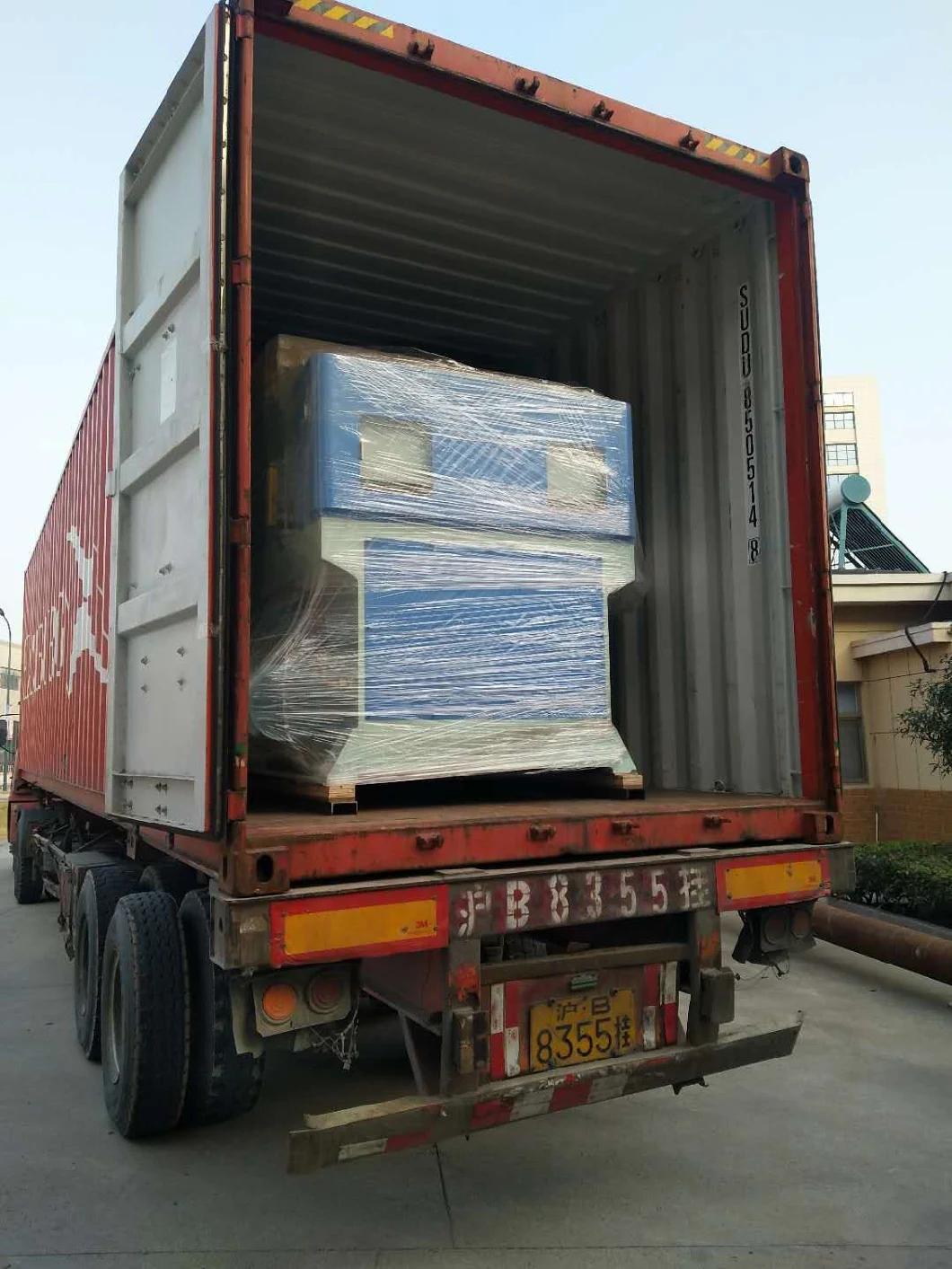

Shipment :
