Agriculture Waste Plastic Film Flakes Washing Recycling Machinery Line
Fujian Quanzhou Huazuan Diamond Tools Co., Ltd.Base Info
Description
Total10 sets All brands can accoring customer's requirements.

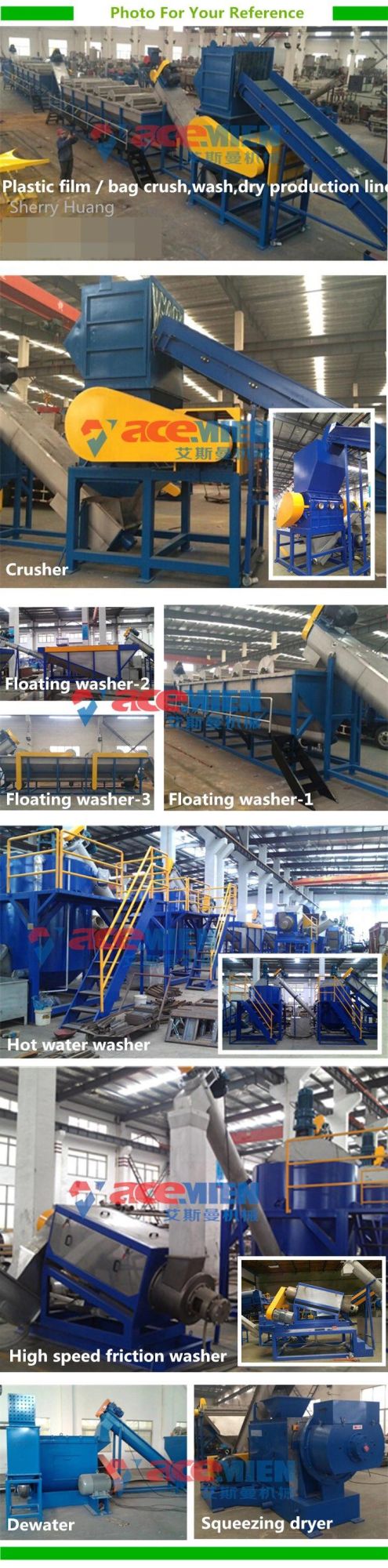

We can design a complete films washing line according to your request.
1. Belt conveyor: Convey material to next process.

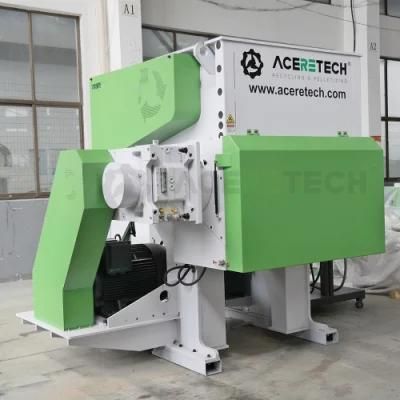

2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4.Hot washer:Add cleaner to hot water,can clean the oil,sand,soil,glue etc.Two kinds heating types,steam or electrical heating,customer can choose one or both.Electric heating motor 60kw.
5. Float Washer: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
6. Screw feeder: transport material and as well as for rub them for surface cleaning.
7. Dewater machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
8. Pipe dry system: Using stainless steel "U" type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
9.Silo: Storage for final products.
General information(Take capacity 500kg/h Waste Film Recycling Production Line as example):
Work condition (provide by customer):
Energy consumption:
Main commercial terms:
We can design a complete films washing line according to your request.
1. Belt conveyor: Convey material to next process.
2. Crusher: Crush the materials to flakes of 15mm (two series: one for PET, one for PP/PE)
3. Friction washer: Surface clean the materials (two series: one for PET, one for PP/PE), and transport material to next washing equipment.
4.Hot washer:Add cleaner to hot water,can clean the oil,sand,soil,glue etc.Two kinds heating types,steam or electrical heating,customer can choose one or both.Electric heating motor 60kw.
5. Float Washer: For separation of the flakes with a specific density of <1g/cm^3 from >1g/cm^3 or in contrast to separate the flakes with a specific of > 1g/cm^3 form <1g/cm^3 (PET >1g/cm^3 and PP/PE <1g/cm^3)
6. Screw feeder: transport material and as well as for rub them for surface cleaning.
7. Dewater machine: for mechanical surface drying of the material flakes with rotating roller (two series: one for PET, one for PP/PE)
8. Pipe dry system: Using stainless steel "U" type pipeline and cyclone silo to dry the material to the necessary residual level for downstream material processing.
9.Silo: Storage for final products.
General information(Take capacity 500kg/h Waste Film Recycling Production Line as example):
| Raw material | plastic film,bottle,bag etc(PE PP HDPE LDPE PET PVB etc.) |
| Final product & Output capacity | Film flakes / 500kg/h |
| Machine color | Specified by customer |
Work condition (provide by customer):
| Warehouse/Workshop | Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools; Workshop dimension (M*M*M):60(L)×5(W)×5(H); |
| Power supply | 380V,50HZ,3PH(or customer's) |
Energy consumption:
| Installation power | 282.6KW (Actual power consumption percentage: 70%) |
| Water supply | Consumption: 10ton/h(Proposed water-treatment project) |
| Ancillary staff | 4-6 Persons |
Main commercial terms:
| Project | 500kg/h Waste Film Recycling Production Line |
| Payment term | 30% as down payment by T/T; 70% by T/T before delivery and after inspection; |
| Container qty. | 1 -2 sets 40HP |
| Delivery time | 60 working days since the date of receiving down payment |
| Packing | Wooden case for important parts,belt ,electric cabinet etc.and plastic film |
| Warranty period | 12months since date of bill of lading |
| Heating type (hot washer) | Steam heating and electric heating(60kw*2sets) |
