No.ItemParameters1ModeSJ-502Specification of drip irrigation beltØ12-20mm3Wall thickness of drip irrigation belt0.16-0.20mm4Space between of drip irrigation belt100,150,200,300,400,600mm5Size of the final product500-200m6Production speed30-40m/min7Max. extruding capacity 30Kg/h8Installation power36 kw9Total water consumption1m3h10Air consumption

0.3m^3_/h

11Installation dimensions(LxWxH)12m x 1.6m x 2.5m12Weight2650Kg

III.Configurations of Machine

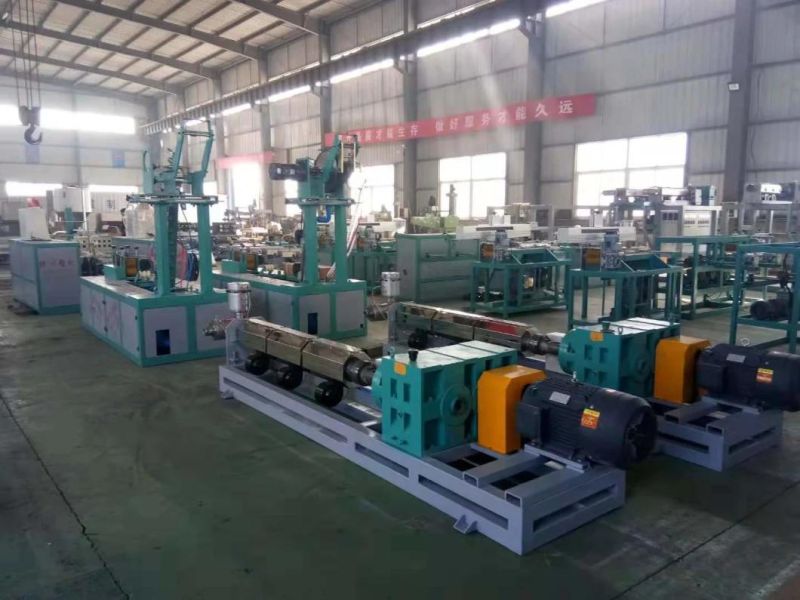

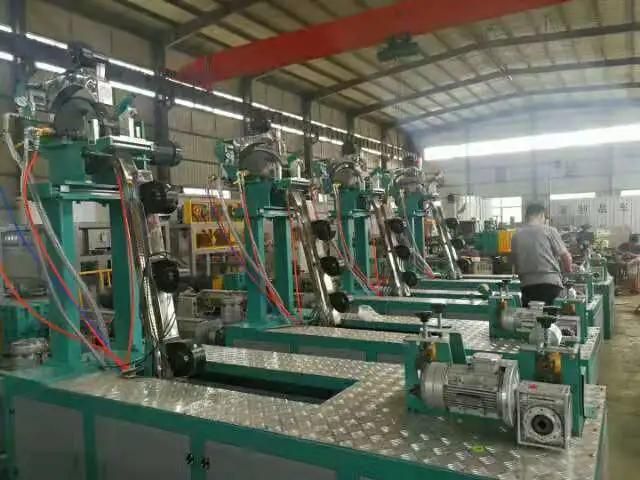

No.Description of equipments and model no.Quantity1SJ-45/30 extruder for labyrinth tape1 set2Mould for labyrinth tape1 set3Labyrinth tape forming device1 set4Cooling trough for labyrinth tape1 set5Water removing device for labyrinth tape1 set6Haul-off for labyrinth tape1 set7Labyrinth transportation and insert device 1 set8SJ-60/30 extruder (for pipe)1 set9SJ-20/25 single extruder(for marked line)1 set10Mould for pipe1 set11Vacuum sizing water tank1 set12Cooling tank and water removing device1 set13Haul-off and cutting device1 set14Two position winder1 set15PLC control system1 set
