• Model NO.：GJB Series
• Name and Description：3000L 5000L High Shear Homogenizer for Milk Tomat
• Product Material：Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Homogenizer Life Time：More Than 10years
• Motor Brand：ABB,Siemens ,China Brand
• Motor Power：5.5-110kw.
• Warranty：in One Year
• Homogenizer Electricity：220V,380V,415V,440V

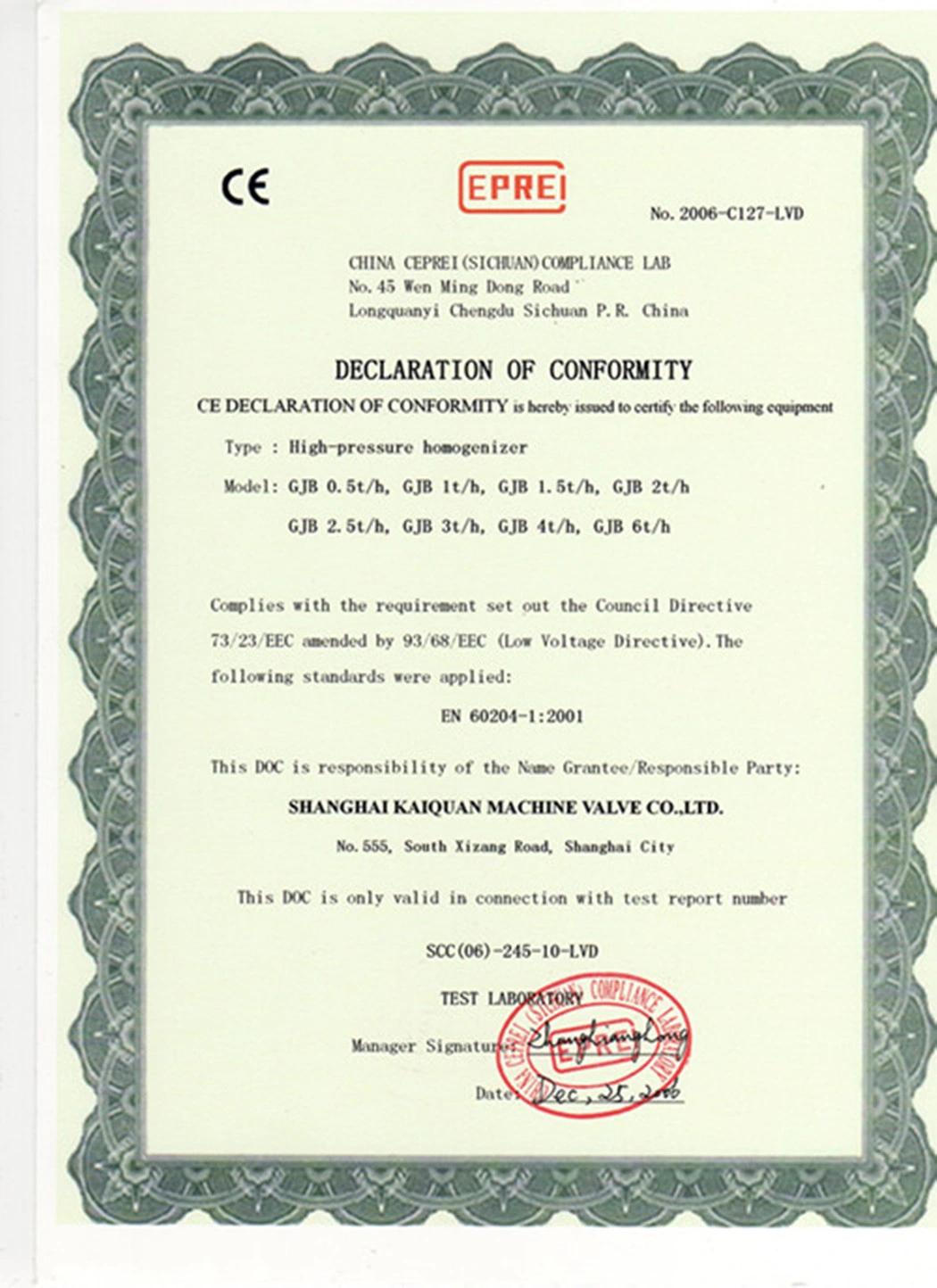

• Certificated：Ce
• OEM：Yes
• Delivery：10 Days
• Packing：Wooden Box
• Spare Parts：Available
• Stage：Two Stage
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name and Description 3000L 5000L High Shear Homogenizer for Milk Tomat Product Material Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Homogenizer Life Time More Than 10years Motor Brand ABB/Siemens /China Brand Motor Power 5.5-110kw. Warranty in One Year Homogenizer Electricity 220V,380V,415V,440V Certificated Ce OEM Yes Delivery 10 Days Packing Wooden Box Spare Parts Available Stage Two Stage Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

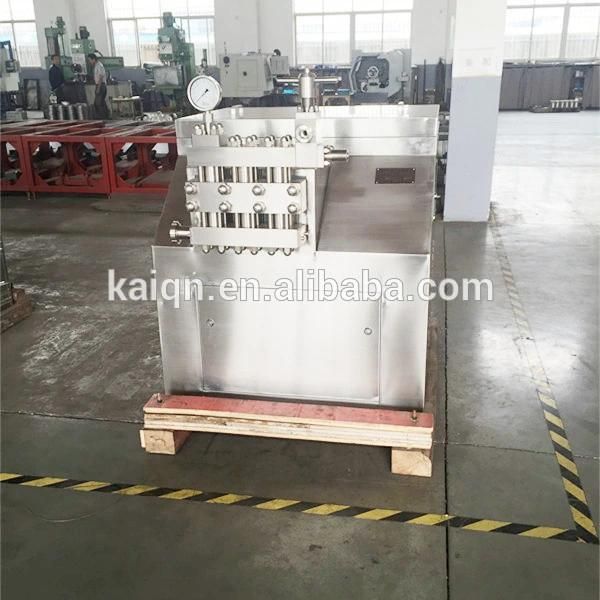

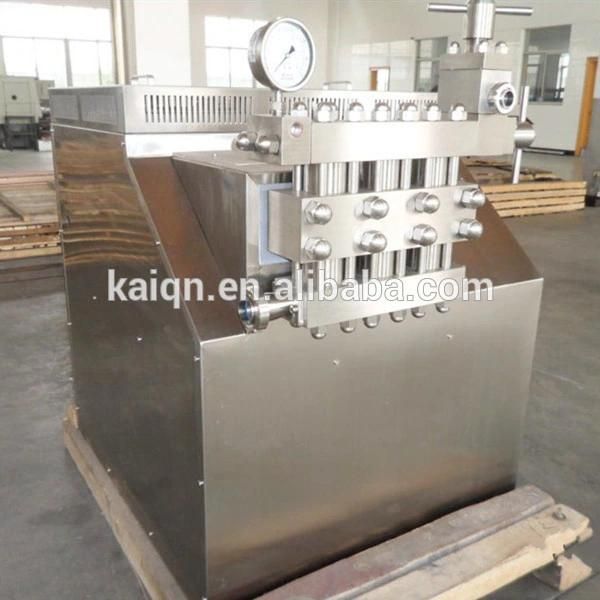

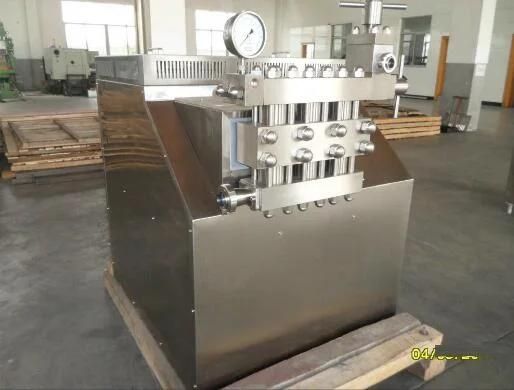

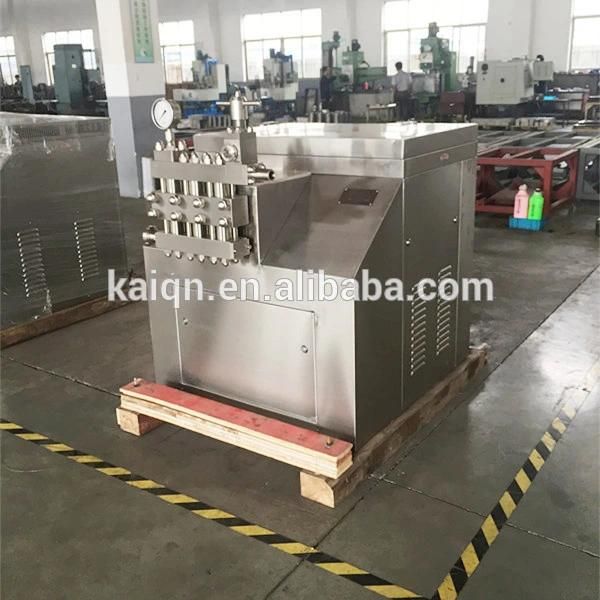

3000L 5000L High Shear Homogenizer For Milk Tomato Juice
Industry Homogenizer Homogenizer Factory Homogenizer Price High Pressure Homogenizer
China Industry Homogenizer 250 bar Price


Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer FROM US
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )


Industry Homogenizer Homogenizer Factory Homogenizer Price High Pressure Homogenizer

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

China Industry Homogenizer 250 bar Price

3000L 5000L High Shear Homogenizer For Milk Tomato Juice  .
