Omrs Series Replace Eaton Char-Lynn 103 Series Hydraulic Motor
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：RoHS, CE
- Type：Hydraulic Motor
- OEM：Accept
- Form of Structure：Cycloidal
- Speed Level：Low Speed
- Rated Speed：600rpm
Base Info
- Model NO.：OMRS36~OMRS375
- Rated Torque：240n*M
- Material：Cast Iron
- Performance：Runs Steadily and Long Life
- Motor Flange Shape：Square and Rhombus
- Warranty Period：12 Months
- Hydraulic Valve：Proportional Control Valve
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：CE, CCC, ISO
- Trademark：Blince
- Origin：Dongguan, China
- HS Code：8412291000
- Production Capacity：30000 Per Month
Description
Displacement
(cc/rev)36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4 Max speed
(rpm)
cont 1250 960 750 600 475 378 310 240 190 155 int 1520 1150 940 750 600 475 385 300 240 190 Max torque
(N/m) cont 72 100 195 240 300 360 360 390 390 365 int 83 126 220 280 340 430 440 490 535 495 peak 105 165 270 320 370 460 560 640 650 680 Max. output (kW) cont 8.5 9.5 12.5 13.0 12.5 12.5 10.0 7.0 6.0 5.0 int 9.8 11.2 15.0 15.0 14.5 14.0 13.0 9.5 9.0 8.0 Max
Pressure
drop
(Mpa) cont 14.0 14.0 17.5 17.5 17.5 16.5 13 11 9.0 7.0 int 16.5 17.5 20 20 20 20 17.5 15 13 10 peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15 Max flow
(L/min) cont 40 50 60 60 60 60 60 60 60 60 int 45 60 75 75 75 75 75 75 75 75 Net Weight (kg) 6.5 6.7 6.9 7.0 7.3 7.6 8.0 8.5 9.0 9.5
BLINCE OMRS hydraulic motor
Model:
36cc,50cc,80cc,100cc,125cc,160cc,200cc,250cc,315cc,375ccMounting Flange: H2: 2-Ø13.5Rhomb-flange, pilot Ø82.5×2.8
H6: 4-Ø13.5Rhomb-flange, pilot Ø82.5×2.8
H4: 4-3/8-16 Square-flange, pilot Ø44.4×2.8
H5: 4-M10 Square-flange, pilot Ø44.4×2.8 Output Shaft: K: Shaft Ø25.4,Woodruff Key Ø25.4×6.35
S: Sub-shaft Ø25.4,splined toothSAE 6B
A: Shaft Ø25 , parallel key 8×7×32
R: Shaft Ø25.4, parallel key 6.35×6.35×31.75
H: Sub-shaft Ø25.4,Pin hole Ø10.3
H1: Shaft Ø25.4, pin hole Ø8
D: Shaft Ø22.22, parallel key 6.35×6.35×25.4
I: Shaft Ø22.22, splined tooth13-DP16/32
T2: Cone shaft Ø25.4 , woodruff key Ø25.4×6.35
P: Shaft Ø25,parallel Key 8×7×28
J: Shaft Ø25,parallel Key 7×7×32 Ports and Drain Port: G: G1/2, G1/4
S: 7/8-14 O-ring 7/16-20UNF(G1/4)
P: 1/2-14 NPTF, 7/16-20UNF(G1/4)
T: 3/4-16 O-ring, 7/16-20UNF
R: PT(Rc)1/2, PT(Rc)1/4
B4:Ø10 O-ring manifold 4x5/16-18, 7/16-20UNF
B5: Ø10 O-ring manifold 4xM8, G1/4
M1: M18×1.5, M10×1
M2: M20×1.5, M10×1
M3: M22×1.5, M10×1 Rotary Direction Standard
Reverse
Application areas:
* Sweeper
* Hydraulic Winch
* Conveyor
* Crane
* Aerial lift
* Combine Harvester
* Seeder
* Spreader
* Auger
* Machine tool
* And more

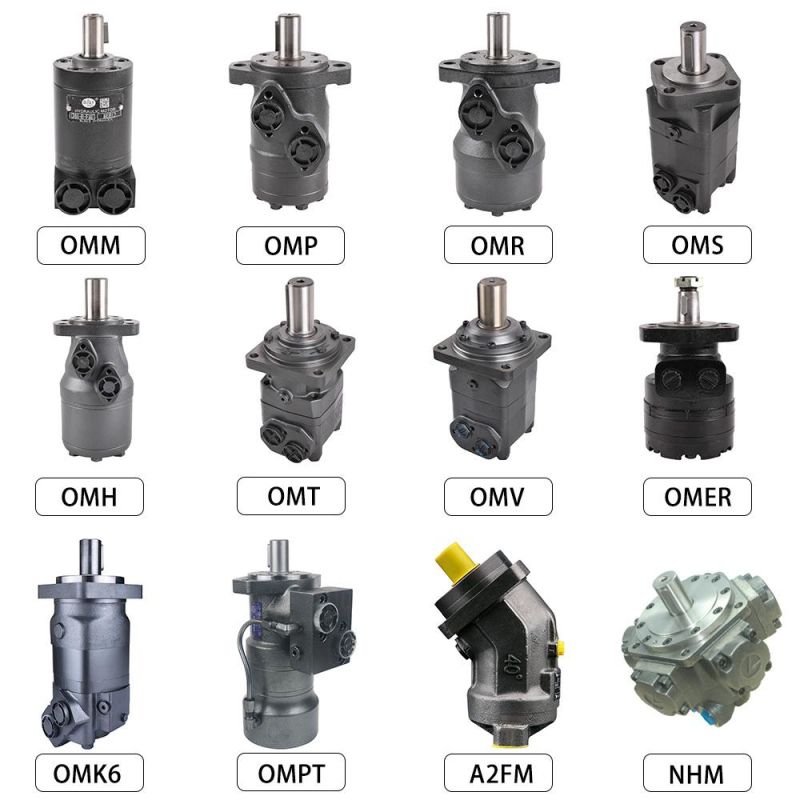

Related Products:
