• Model NO.：QHS
• Processing Type：Carbonated Drink Processing Machine
• Processing Type 2：CIP Cleaning System
• Processing Type 3：Carbonated Drink Production Line
• Material：SUS304,316L
• Auxiliary Equipment：Pipe, Valve, Cable Bridge, Pipe Bridge etc
• Transport Package：Wooden Pallet
• Specification：Customize
• Trademark：QC
• Origin：Jiangsu, China
• HS Code：8438800000
• Production Capacity：15 Sets,Month

Type

QHS 1500

QHS - 3000

QHS 4000

QHS - 5000

QHS - 6000

Production Capacity (kg/h)



1000 - 1500



2500 - 3000



2000 - 4000



2500 - 5000



4000 - 6000

Adjust Proportion of Syrup and Water



1:3 1:10



1:3 1:10



1:3 1:10



1:3 1:10



1:3 1:10

Gas Qty

1.5-2.5

2.5

2.5

2.5

2.5

Cool Water Entry Temperature ()



0 - 5

Working Pressure (MPa)



0.05 0.15

Storage Tank Working Pressure (MPa)



0.2 0.5

Power (KW)

1.5

3.7

4.05

5.6

6.2

Dimension (mm)

900 * 700

*2000

1720 * 1140

*2100

1860 * 1300

*2100

1960 * 1400

*2150

2020 * 1500

*2200

Weight (kg)

500

1100

1300

1600

1800

Mixing tank


Stainless steel mixing tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards .

1. Capacity :100-20000L

2. Single layer/ double layers/ three layers

3. Motor power:0.75-5.5kw

4. Materials are all sanitary stainless steel .

5. Humanized structure design and easy to operate .

6. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation .


Parameter
 Common rotation speed 35, 43, 60; Stepless speed reducer or dual-speed reducer are also available600920*1000285060380.55700990*1000285060380.55800950*1220300060380.559001010*1220300060380.5510001060*1220315060510.7515001160*1500335060510.7520001340*1500341060511.130001410*2000400060511.540001620*2000425060511.550001810*2000430060512.260001980*2000455060512.270001930*2440500060512.280002060*244050006051390002180*2440505060513100002300*2440505060513120002270*3000560060514150002530*3000570060514200002640*3660640060515.5
CIP cleaning system

CIP(cleaning in place) system is a system, in which, producing equipments(tanks, pipes and valves ect) and whole production line is cleaned and disinfected circularly in a closed loop without being dismantled or open. It is applied for cleaning of equipments and pipes industries of dairy, beverages alcohol, Agricultural and sideline products. CIP cleaning system is composed of acid tank, alkali tank, hot-water tank, pure-water tank, back-water tank, thick-acid tank, thick-alkali tank, heat exchanger, pumps peripheral valves and pipes. These tanks can be allocated according to technical requirements. Generally, the CIP system only comprising acid tanks, alkali tanks and hot-water tanks is sufficient for requirement of cleaning.
 300L~10,000LCIP Tank typealkali tank, acid tank, hot water tank, pure water tank, water recycle tankCleaning recyclesSingle circuit, double circuits, three circuits, four circuitsHeating methodCoil pipes inside, plate, tubelarAutomatic types and charasticsFully automatic1. Flow rate auto control
2. Temperature auto control
3. Auto compensate cip liquid level
4. Auto compensate the liquid concentrate
5. Cleaning liquid auto transfer
6. Auto alram°Semi-auto1.Temperature auto control
2. Electrical control with manual operate the other matters.Manual control1. Manual operate on the cleaning process

Washing process:take dairy and beverage industry as an example

1. Wash for 3-5 minutes at room temperature or above 60°C hot water; alkali wash for 10-20 minutes, 1%-2% solution, 60°C-80°C; middle wash for 5-10 minutes, clean water below 60°C; Finally wash for 3-5 minutes, clean water.

2. Wash for 3-5 minutes, hot water at room temperature or above 60°C; alkali wash for 5-10 minutes, 1%-2% solution, 60°C-80°C, middle wash for 5-10 minutes, clean water below 60°C, Sterilize for 10-20 minutes with hot water above 90°C.

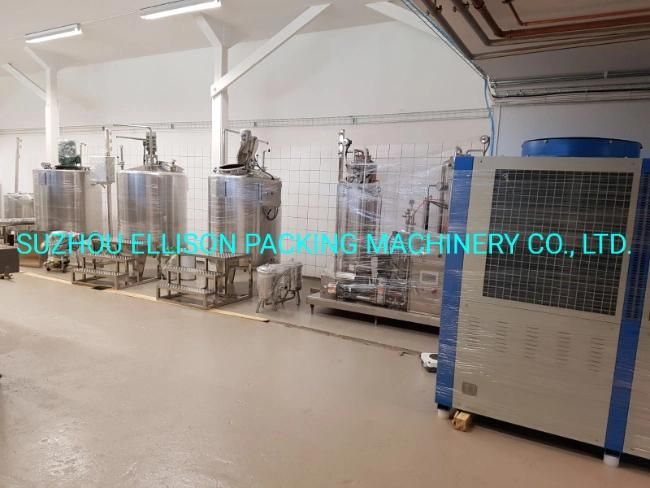

More photos for ref

Machine setup and commissioning

After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

Contact information

Please write to us with below information for getting detailed quotation sheet quickly:

- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;

Shipping & Cooperation brand
