• Model NO.：SUS
• Processing Type：Juice Production Line
• Processing Type 2：CIP Cleaning System
• Processing Type 3：Carbonated Drink Production Line
• Material：SUS304,316L
• Auxiliary Equipment：Pipe, Valve, Cable Bridge, Pipe Bridge etc
• Transport Package：Wooden Pallet
• Specification：Customize
• Trademark：QC
• Origin：Jiangsu, China
• HS Code：8438800000
• Production Capacity：15 Sets,Month

 Steam boiler > Hot water tank> Syrup melting pot  V VCIP cleaning system: will
connect to pipe for washing V>Mixing tank # 1 V>Mixing tank # 2     VHigh pressure homogenizer<UHT
for heating up<Double filterV    UHT>Juice sstorage tank>Filling machine
Our product

1. Heat preservation material of the vessel adopt high-temperature resistant and anti-aging polyurethane blister or per cotton.

2. Volume Specification: 100L-30000L or to be designed and manufactured at customers'actual request.

3.According to your product, we can configure with different mixing tool, if low viscosity product, need high speed mixer, if high viscosity product, usually high speed mixer with low speed mixer to meet different process.

4.To choose the right machine will greatly advance your production efficiency and production quality.

5.The stainless steel mixing tank can engineer heating, cooling or vacuum or other process.

6. We have rich practicel data for different product, with the data can help customer to choose the right machine.

Parameter
 Common rotation speed 35, 43, 60; Stepless speed reducer or dual-speed reducer are also available600920*1000285060380.55700990*1000285060380.55800950*1220300060380.559001010*1220300060380.5510001060*1220315060510.7515001160*1500335060510.7520001340*1500341060511.130001410*2000400060511.540001620*2000425060511.550001810*2000430060512.260001980*2000455060512.270001930*2440500060512.280002060*244050006051390002180*2440505060513100002300*2440505060513120002270*3000560060514150002530*3000570060514200002640*3660640060515.5
CIP cleaning system

Clean-In-Place (CIP) systems are automated systems used to clean the interior surfaces of food and beverage process pipes, processing vessels, tanks, spiral freezers, mixers, blenders, homogenizers, roasters and associated fittings, without disassembling the process. Thorough, repeatable in-place cleaning is critical to the quality of your product, the safety of consumers-and your bottom line.

Chuen Chen CIP Systems are engineered to your specific plant application, layout and utility requirements for effective and efficient sanitary process equipment cleaning. Our application-specific CIP design and sizing ensures sufficient flow. As a result, appropriate pressure is available to thoroughly remove residue, rinse effectively, shorten cycle times and promote worker safety.
 300L~10,000LCIP Tank typealkali tank, acid tank, hot water tank, pure water tank, water recycle tankCleaning recyclesSingle circuit, double circuits, three circuits, four circuitsHeating methodCoil pipes inside, plate, tubelarAutomatic types and charasticsFully automatic1. Flow rate auto control
2. Temperature auto control
3. Auto compensate cip liquid level
4. Auto compensate the liquid concentrate
5. Cleaning liquid auto transfer
6. Auto alram°Semi-auto1.Temperature auto control
2. Electrical control with manual operate the other matters.Manual control1. Manual operate on the cleaning process

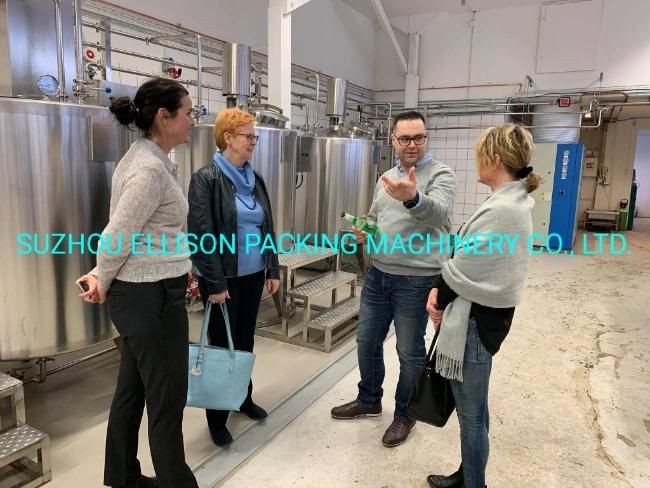

More photos for ref

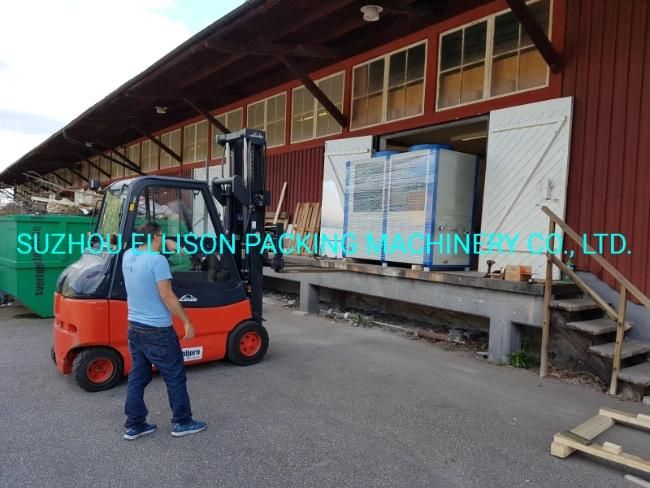

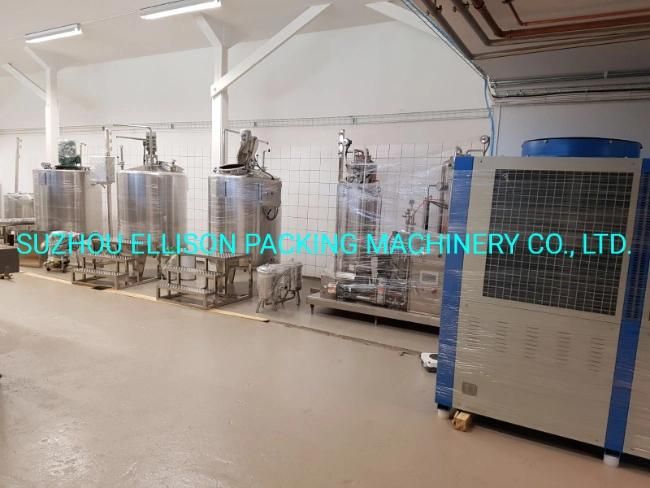

Machine setup and commissioning

After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

Contact information

Please write to us with below information for getting detailed quotation sheet quickly:

- What is the filling material;
- What is your bottle type and cap type;
- How many bottle types that you have;
- How many bottles per hour you will produce;

Shipping & Cooperation brand
