Basic Info.

Model NO. HSD Condition New Application Make Jacket Insulated Pipe Material PE Diameter 100-2000mm Transport Package Standard Package Specification pipe dia. 100-2000mm Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 50 Units/Year

Product Description

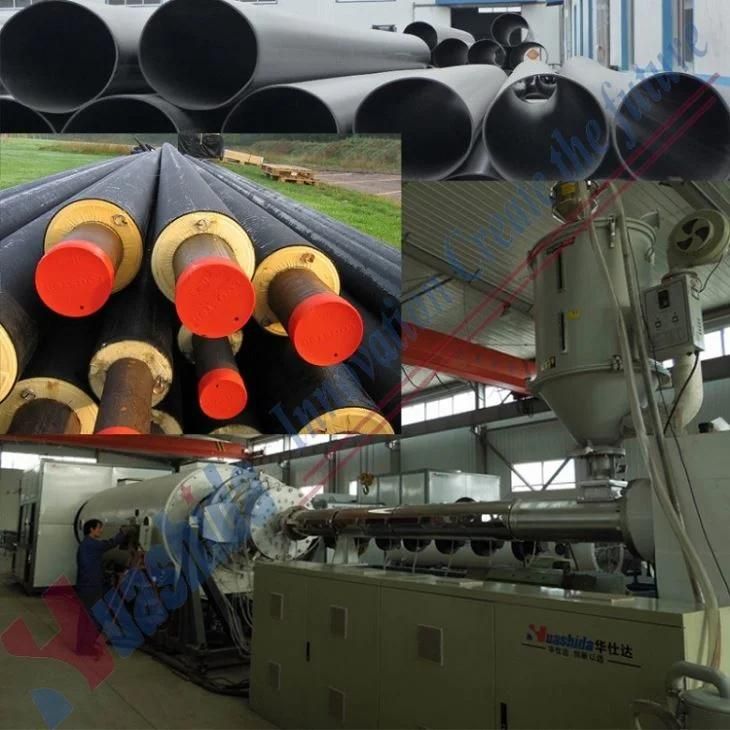

HDPE Insulated Jacket Pipe Extruder Production Line
Description of the production: HDPE PU Foam Thermal Pre-insulated thin wall Pipe Extrusion Line. is a high efficiency equipment with high speed and energy saving which is developed by Qingdao Huashida Machinery Co.Ltd., PU foam Pre-insulated Pipe Extrusion line is easy to operate with automatic control system and has long service life.


Prefabricated directly buried insulating pipe cosist of steel pipe, polyurethane foam layer and PE jacket pipe. Because of its special structure, the PU Insulated Pipe is an irreplaceable role in municipal heating engineering.

Pipe  Application:
PE Pipe produced by this line, is with excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on.

It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.

Compose of Processing Line
1. Automatic Vacuum Feeding
2. Drying Machine
3. Single screw Extruder

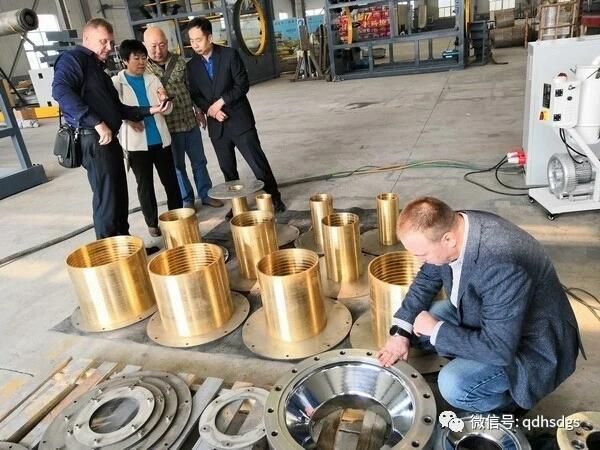

4. Mold
5. Calibrating

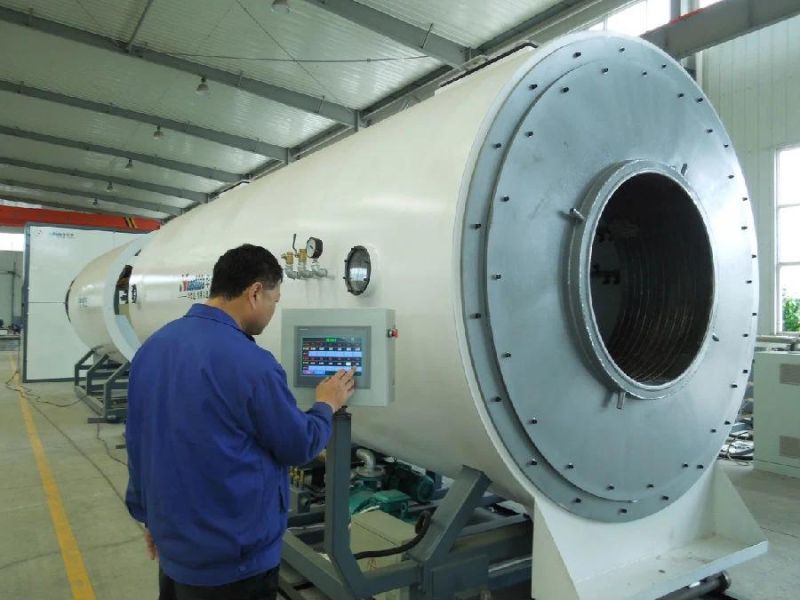

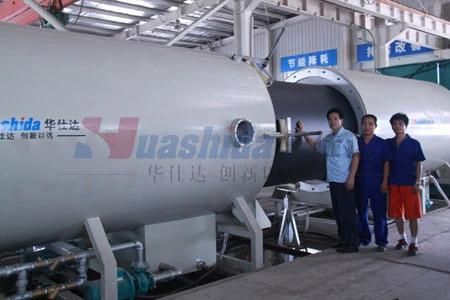

6. Vacuum calibrating water tank

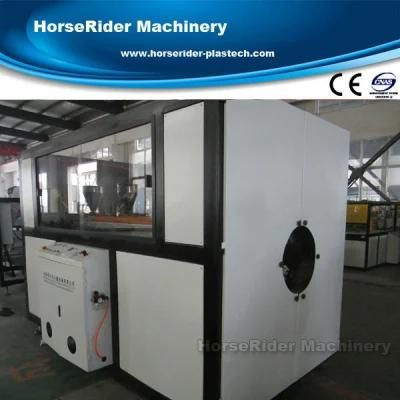

7. Hauling Machine
8. Cutting Machine
9. Carrier

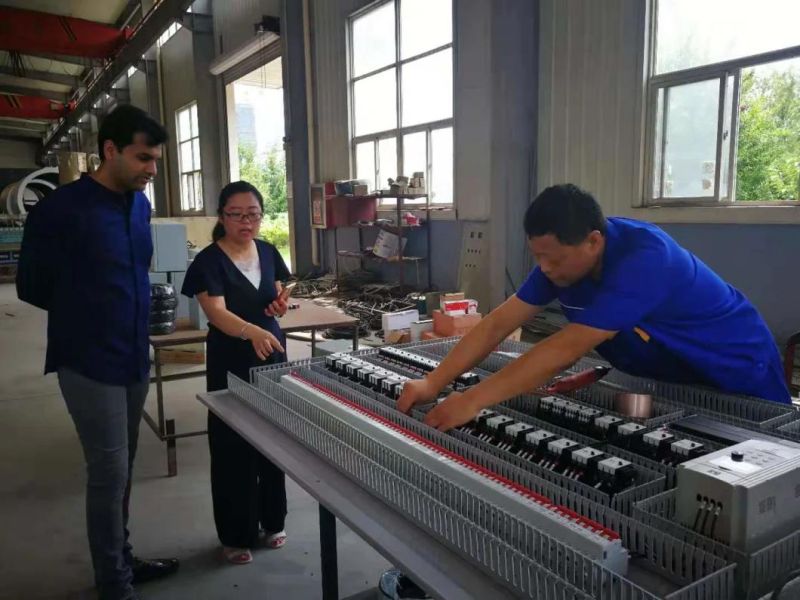

10. PLC Automatic Control System

Main Specifiction:

Style	PE-110/600	PE-365/760	PE-655/1380	PE-960/1680
Main extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ 365-Φ 760 mm	Φ 655-Φ 1380 mm	Φ 960-Φ 1680mm
Capacity	250-300kg/h	400~500 kg/h	850~950 kg/h	900-1100kg/h
Installed power	160kw	420 kw	480 kw	580kw
Length	35m	36 m	40 m	48m
