Basic Info.

Model NO. NBR Board-1200 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Pipe Dia. 16-114mm Thickness 6-25mm Borad Width <=1200mm Transport Package Standard Package Specification 85x6x4m Trademark HSD Origin Qingdao China HS Code 8479820090 Production Capacity 10units/Year

Product Description

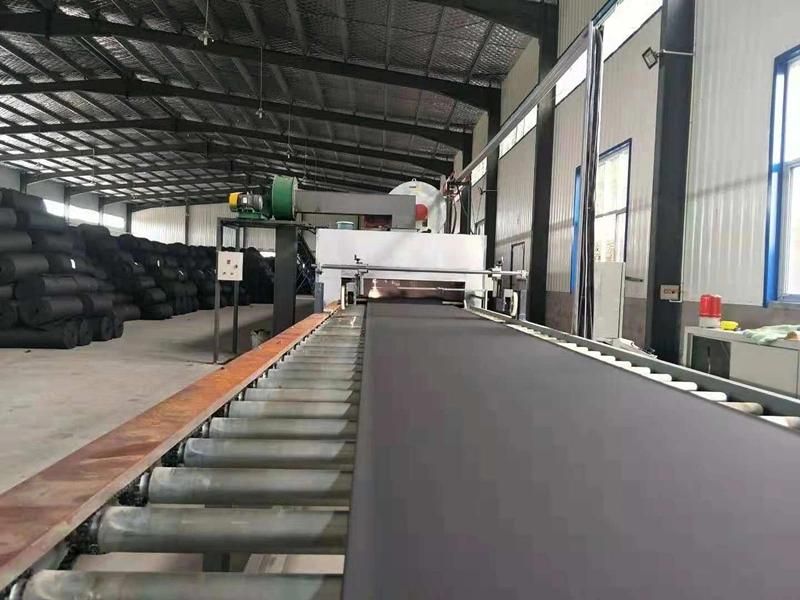

NBR/EPDM Rubber Foam Insulation Tube Production Line


Product Introduction:
Rubber foam  insulation tube production line is the introduction of the latest technology and most advanced automatic continuous production line, using high performance nitrile butadiene rubber, polyvinyl chloride(NBR,PVC) as the main raw material and accompanied by a variety of high-quality auxiliary materials, made into soft insulation and energy-saving materials which made by a special foaming-process.
Advantages:

1. High Extrusion output, with good quality;
2. Automatic temperature control;
3. Low consumption;
4. Inverter control;

The line has the extrusion speed, high degree of automation and security performance which is better than the domestic and international counterparts. Also the technology of device modeling, structural performance, vulcanizing quality and other aspects is a world leading level. In the production line, rubber and plastic sponge insulation material is the closed-cell elastic material, with soft, bending resistance, cold-resistance and heat-resistant, flame-retardant, waterproof, low thermal conductivity, shock absorption, sound absorption and other excellent properties.
Application:
It can be widely used in central air-conditioning, construction, chemical, pharmaceutical, textile, metallurgy, shipbuilding, vehicles, appliances and other types of industries and sectors of hot and cold media pipeline, container, can achieve lower cold loss and heat loss effects. As the material is soft, bending resistance, ect., can be processed produce the ideal insulation material for fitness equipment, medical equipment and the indoor and outdoor pipe in solar heating systems.

Part II  Equipment List

No.	Equipment Name	quantity	unit
1	Bale Cutter	1	unit
2	Internal Mixer	1	unit
3	Bucket Elevator	1	unit
4	Open Mill	1	unit
5	XSJ-120  Cold feed rubber Extruder (XSJ-120)	1	unit
6	Extruder headboard extrude headOne in three out pipe extrude headOne in two out pipe extrude head One in six out pipe extrude head	1 1 1 1	unit
7	Transition roller 1.5m	1	unit
8	(L 6000mm,Inner Width 1000mm)Far infrared foaming furnace	1	unit

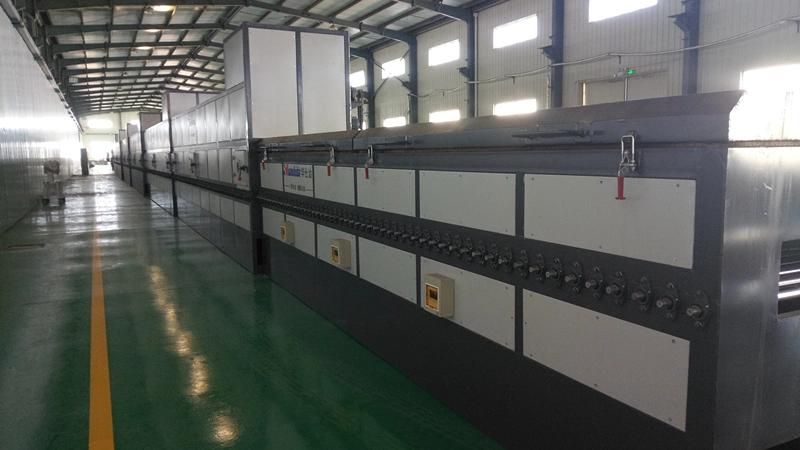

9	Hot air foaming furnace 2 (L 8000mm,Inner Width 1000mm)	2	unit
10	Hot air foaming furnace  3 (L 8000mm,Inner Width 1200mm)	1	unit
11	Hot air foaming furnace  4 (L 8000mm,Inner Width 1200mm)	1	unit
12	Hot air foaming furnace  5 (L 8000mm,Inner Width 1500mm)	1	unit
13	Hot air foaming furnace  6 (L 8000mm,Inner Width 1700mm)	1	unit
14	Tractor(L:4000mm)	1	unit
15	Sheet cutting machine	1	unit

For more information about the product, We will offer 7x24 on line consulting service.
Qingdao Huashida Machinery Co., Ltd is a professional plastic extrusion production line manufacture since 2003.Our products such as HDPE pressure pipe for gas or water transmission, structural wall pipe extrusin line, corrugated pipe extrusion line . The products have been exported to Middle East, Russia, Africa. Turkey, Korea.
