• Model NO.：HZLB06150
• Certification：ISO9001:2000, SGS
• Beads/Meter：40
• Feature：Sharpness, Smooth Cutting
• Transport Package：Carton, Wooden Box
• Specification：11mm
• Trademark：Huazuan
• Origin：Fujian, China
• HS Code：82029910
• Production Capacity：10000 M , Month

Basic Info.

Model NO. HZLB06150 Certification ISO9001:2000, SGS Beads/Meter 40 Feature Sharpness, Smooth Cutting Transport Package Carton/ Wooden Box Specification 11mm Trademark Huazuan Origin Fujian, China HS Code 82029910 Production Capacity 10000 M / Month

Product Description

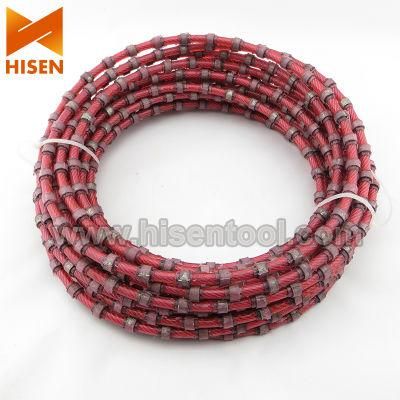

High Efficient Diamond Wire Saw for Marble Cutting
Diamond wire saw usage:
1)For quarrying
2)For block squariny and chamfering
3)For profiling
4)For marble, granite stone's cutting

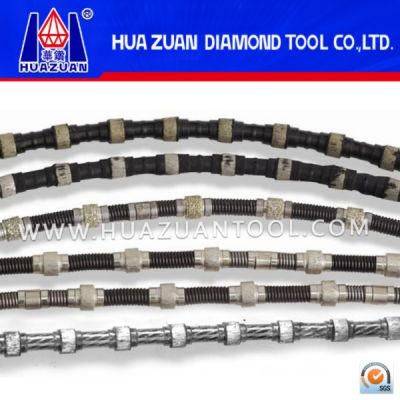

Clasification (joint of beads)
1)Plastic
2)Plastic + spring
3)Rubber
4)Rubber+spring
5)Spring

Specification

Marble	Profiling	8	6	9.5	Plastic	37
Marble	Profiling	8.5	6	9.5	Plastic	37
Marble	Profiling	8.8	6	9.5	Plastic	37
Marble	Block Cutting	10.5	6.4	10	Plastic	37
Marble	Block Cutting	11	6.4	10	Plastic	37
Marble	Quarry	11	6	9.5	Spring	28
Marble	Quarry	11	6	9.5	Plastic	37
Marble	Quarry	11.5	6.4	11.5	Rubber	40

Working principle:
The working principle that diamond wire saws are adopted to cut granite is to use the cycle turning of wire saw driven by motor to cut the granite (physical method). During cutting, we can infuse the water into the cutting width in order to cold the beads and get rid of granite powder.
The cutting speed is 2-4 m2/h. Cutting depth is 10-20m or more, and the cutting area can be 90 degrees (vertical angle).
Cutting method: Vertical, horizontal direction, and turn 90 degrees to "cut blindly", which can reduce the waste of resources with only 1.1cm width.
It is low-noisy, no-dust and safely operation, high output. Regular quarry without internal injury, better price, etc. It is suitable for all granite and marble quarries.
