• Model NO.：HZ012
• Diameter：300-900mm
• Technology：High Frequency Welded
• Finishing：Painting
• Diamond Cutter Blade Type：Silent, Normal
• Transport Package：carton box inside with wooden box outside
• Specification：300-900mm
• Trademark：HUAZUAN
• Origin：Fujian, China
• HS Code：82023910
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. HZ012 Diameter 300-900mm Technology High Frequency Welded Finishing Painting Diamond Cutter Blade Type Silent, Normal Transport Package carton box inside with wooden box outside Specification 300-900mm Trademark HUAZUAN Origin Fujian, China HS Code 82023910 Production Capacity 10000PCS/Month

Product Description

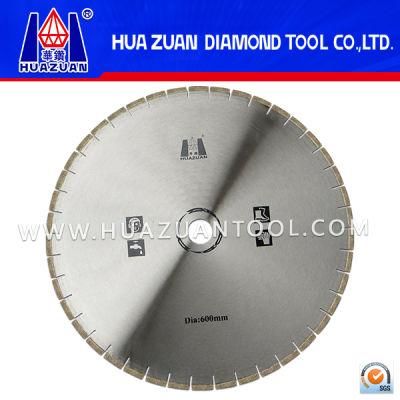

Sharpness Granite Cutting stone saw blade for Sale

1. Quality Guarantee
2. Perfect For Cutting
3. Long working life

Application: Small Segment Diamond Blade cut the widest range of materials, with very fast cutting speed.

Diamond Saw Blade:
 FEATURES:
1.Suitable for wet cutting granite
2.Fast cutting
3.Long lasting and tidy edge
4.Competitive price

Quality control:
1. Raw material inspection
2. Professional formula
3. Production process control
4. Do some cutting testing to sure the using function
5. Products pass SGS inspection

More information please browse our company website:
huazuantool.en.made-in-china.com
Or welcome sent email to me.


Diameter(mm)	Segment dimension L*W*H	Core thickness (mm)	Segment number (pcs)
250	40*3.0*10	1.8/2.0	18
300	40*3.0*12(15)	1.8/2.2/2.4	21
350	40*3.2*12(15)	1.8/2.2/2.4	24
400	40*3.4*12(15)	2.2/2.6/2.8	28
450	40*4.0*12(15)	2.5/2.8/3.3	32
500	40*4.2*12(15)	2.8/3.0/3.2	36
550	40*4.2*12(15)	3.0/3.5	40
600	40*4.6*12(15)	3.0/3.6	42
700	40*5.6*12(15)	3.6/4.0	46
800	40*5.6*12(15,20)	4.5/5.0	46
900	24*6.8/6.0*15(20)	5.0	64
1000	24*7.2/6.4*15	5.0	70
1100	24*7.4/6.8*15	5.5	74
1200	24*7.5/6.5*15(20)	5.5	80
1300	24*8.5/7.8*15(20)	6.0	88
1400	24*8.8/8.2*15(20)	6.5	96
1600	24*9.2/8.4*15(20)	6.5	108
1800	24*10/9.2*15(20)	7.0	120
2000	24*10.5/9.5*15(20)	8.0	128
2200/2300	24*11.5/10.5*15(20)	8.5	132/136
2500	24*11.5/10.5*15(20)	9.5	140
3000	24*13.0/12*15(20)	10	160
3500	24*13.5/12.5*20(30)	11	180

COMPANY INTRODUCTION

Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research,  development and production."HUAZUAN" means made in China,as solid and stable as diamond. Driven by diamond saw blade,diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools.Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
