Basic Info.

Model NO. WTP800/1000/1200/1400 Computerized Computerized Certification CE, ISO9001:2008, QS, UL, GMP Material HDPE Pipe, PPR Pipe, PVC Pipe Material Processed Plastic Pipe, Large Diameter Plastic Pipe Plastic Type HDPE/PPR/PVC Capacity(Kg/H) 500-3000 Rotating Diameter(mm) 350-550 Shredder Chamber Size(mm) 860*960-1400*1480 Qty. of Rotary Blades(PCS) 51-95 Delivery Period 7-15 Workdays Power(Kw) 45-110 Warranty Period 5 Years Transport Package Seaworthy Packing for Plastic Pipe Shredder Specification Top Feed(plastic shredding machine) Trademark KWELL Origin China HS Code 8479820090 Production Capacity 20sets/Month

Product Description

High Quality Large Diameter Plastic Pipe Shredder

1. Introduction and Application

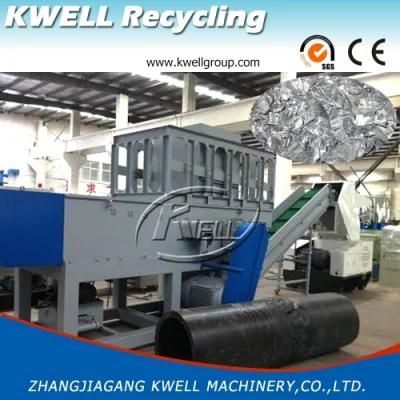

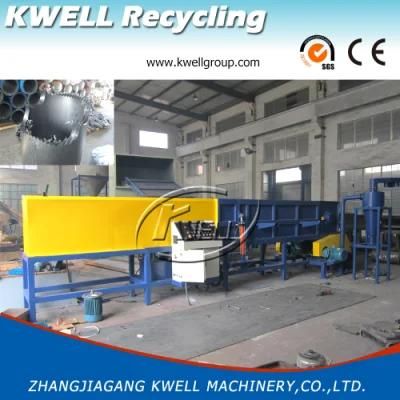

KWELL develops this vertical type pipe shredder specially for big diameter plastic pipe recycling. This machine consists of a single shaft shredder and a crusher, or single shaft shredder only.

2. Features

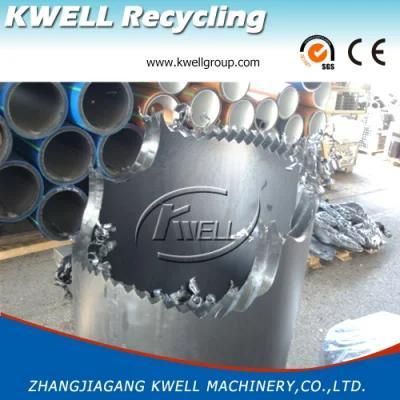

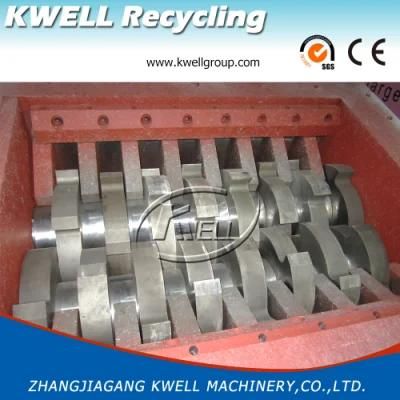

1 This kind of single shaft shredder machine adopts thick row rotation knives structure and hydraulic driven pushing plate to feed material by force with powerful shredding capacity. It can be used in shredding long big diameter plastic pipe/roll/junks/profile with thick thickness.
2 The blade base and blades on the rotary roller can be disassembled .It is easy to clean and maintain.
3 The rotary blades adopt the "V" design, which can decrease the noise and decrease energy consumption.
4 The main axis is driven by gearbox, ensuring running very stably, low noise and strong power.
5 The push feeding system adopts hydraulic way ,which runs very stably and the machine is controlled by PLC system, the blades can rotate in opposite direction when the rotor gets stuck ,and also can close automatically if something unexpected happen , with very high safety service.
6 The crusher has rotating blades and fixed blade, with powerful force to crush the object into very small size. There is mesh screen to control the scraps size.

3. Parameter


Model	Power(KW)	Qty. of Rotary blades(PCS)	Rotating Diameter(mm)	Shredder Chamber Size(mm)	Capacity(kg/h)
WTP800	45	51	Φ350	860*960	500-1000
WTP1000	55	63	Φ350	1100*1150	800-1500
WTP1200	75	69	Φ400	1200*1400	1800-2500
WTP1400	110	95	Φ550	1400*1480	2000-3000

4. After-sales Service

1. Provide with installation, commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct information

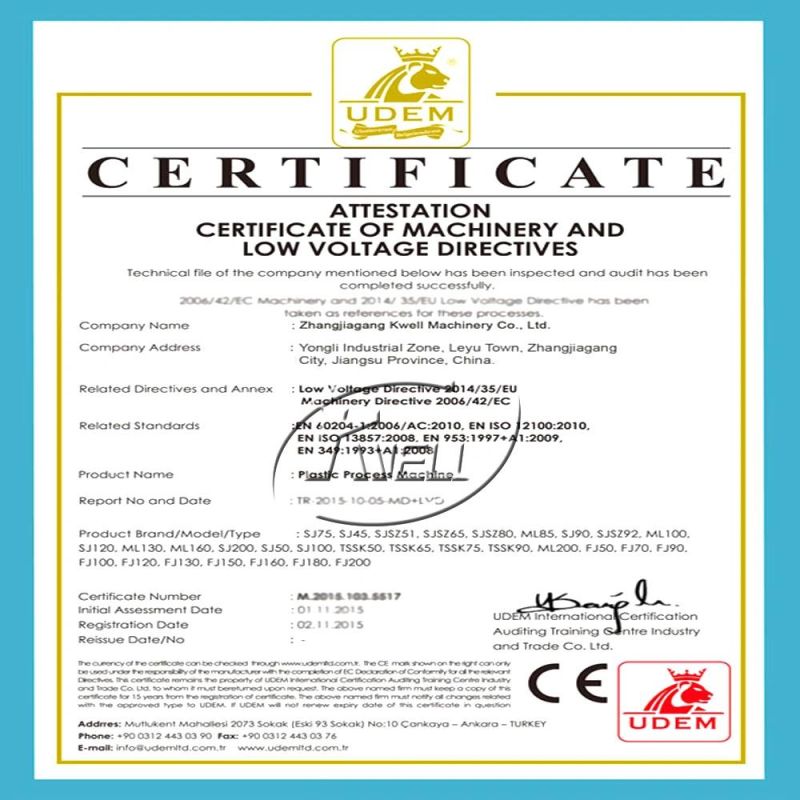

5. Certificates and Company




6. Favorable Policy

1. Warranty period for 5 years
2. Supply free spare parts forever

7. Company Profile

Zhangjiagang Kwell Machinery Co., Ltd.

Kwell machinery is a leading manufacturer of plastic recycling and extrusion machinery in China. Our company is located in Zhangjiagang City, Eastern Coast of China, with a history of more than 15 years and has 500 employees.
With the deep understanding of the plastic recycling & extrusion technology and owning excellent metal processing ability, we are trying our best to be out of the common in the product quality. We have been supplying a wide range of plastic machinery and after-sales services to our customers from more than 150 countries and regions.
Our company has taken the lead to obtain CE certificate, SGS certificate, IS09001: 2008 quality management system certification, persevere in the full implementation of "zero defect" quality control, strengthens the control of purchasing and supply, production technology, quality inspection, production marketing, capital arrangements, after-sales service and so on.
Continuous accumulated R&D and manufacturing experience, grasping of the latest recycling & extrusion technology and advanced management system, which make us to be your reliable and faithful business partner.

Company Mission:

1. Dedicate in plastic recycling and extrusion technology
2. Concentrate on customer's requirements
3. Supply best quality of product at competitive price, as well as considerate & prompt after sell service

Company Motto:

Focus On Details, Achieve In Success

Address: Yongli Industrial Zone, Leyu Town, Zhangjiagang, Suzhou, Jiangsu, China
Office Phone: 0086-512-58565868
Fax: 0086-512-58565868
Website: http://kwellgroup.en.made-in-china.com/

Any suggestion and questions, just feel free to contact us and we are pleased to recommend suitable configuration for you.
