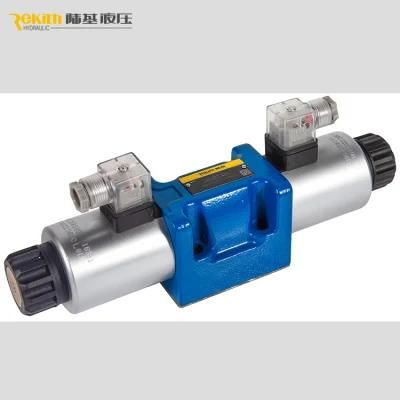

Hydraulic Valve We10-5X Solenoid Valve for CNC Machine Rekith
Jiangmen Jianghai Lianhe Colour Packing and Printing Co., Ltd.- Function：Reversing
- Installation：Plate
- Drive：Electric
- Type：Directly Operated Type
- Max Working Pressure：315bar
- Max Flowing：120L,Min
Base Info
- Model NO.：WE10-5X
- Transport Package：Standard Carton or Plywood Package
- Trademark：Rekith
- Origin：China
- HS Code：8481201090
- Production Capacity：5000 Pieces,Month
Description
Overview
Fixing position Optional Environment temperature range ºC -30 to +50(NBR seal) -20 to +50(FKM seal) Weight Central monitoring station Independently wiring Single solenoid kg 4.4(DC),3.6(AC) 4.3(DC),3.5(AC) Double solenoids kg 6.0(DC),4.4(AC) 5.9(DC),4.3(AC) Max.operating pressure Port A,B,P bar 315 Port T bar 210(DC),160(AC), when the operating pressure exceeds the permission value, spool symbol A and B must make the port T for draining. Max.flow-rate L/min 120 Flow cross section(switching neutral position) Version V mm² 11(A/B to T),10.3(P to A/B) Version W mm² 2.5(A/B to T) Version Q mm² 5.5(A/B to T) Fluid Mineral oil suitable for NBR and FKM seal Phosphate ester for FKM seal Fluid temperature range ºC -30 to +80(NBR seal) -20 to +80(FKM seal) Viscosity range mm²/s 2.8 to 500 Degree of contamination Maximum permissible degree of fluid contamination : Class 9.NAS 1638 or 20/18/15, ISO4406 Type of voltage DC AC 50/60Hz Available voltage V 12,24,42,60,96,110,180,205,220 42,110,220,230 Voltage tolerance (nominal voltage) % ±10 Power consumption W 35 - Holding power VA - 50 Making power VA - 550 duty Continuous working Switching time to ISO6403 ON ms 45 to 60 15 to 25 OFF ms 20 to 30 20 to 30 Switched frequency times/h 15000 7200 Type of protection to DIN 40050 IP65 Max.coil temperature ºC 150 180
FAQ
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.
Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.
Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.
Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Technical data

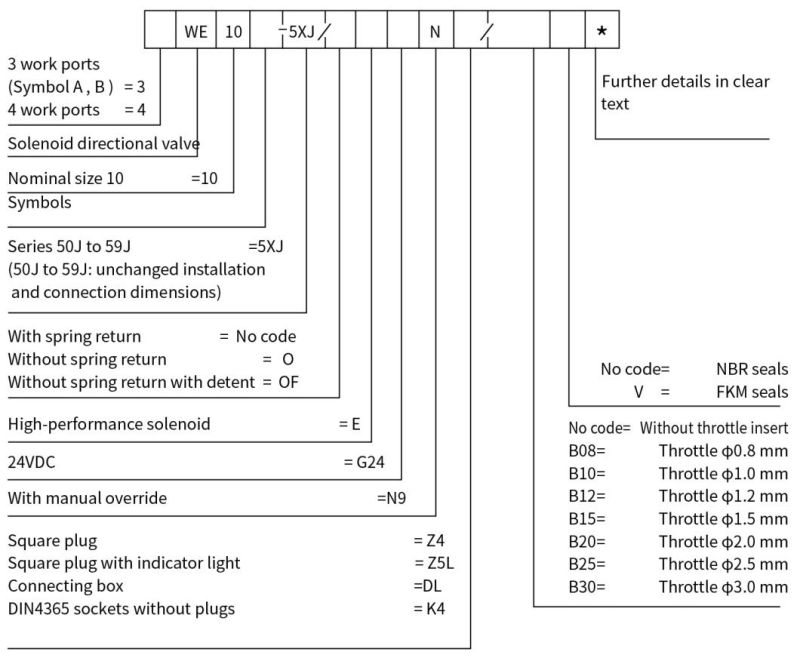

Ordering code
